020219-0 Briggs and Stratton Pressure Washer 2,450 PSI Elite

Model: 020219-0

Save
 Part Not Listed?Part Not Listed?
product name

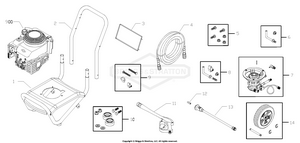

Main Unit

...
...
1
BASE BS-199504GS
...
2
HANDLE BS-B194718GS
...
3
ASSY, Billboard with Decal BS-194886GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
KIT, Pump Mounting Hardware BS-192529GS
...
6
KIT, Hook, Base BS-192309GS
...
7
PUMP BS-207365GS
...
VALVE, Thermal Relief BS-208673GS
...
Key BS-23139GS
...
8
KIT, Hook, Handle BS-194264GS
...
9
KIT, Handle Connector BS-B2203GS
...
10
KIT, Vibration Mount BS-192310GS
...
11
GUN BS-B3263GS
...
12
ORIFICE BS-21760GS
...
13
WAND-ADJUSTABLE BS-205015CGS
...
14
KIT, Wheel BS-192311GS
...
Axle BS-192006GS
...
RETAINER, RING, 1/2 BS-703976
...
MANUAL, Operator's Not Illustrated BS-194890GS
...
MANUAL, Engine Not Illustrated BS-MS6847
...
COVER, Control Not Illustrated BS-282625
...
DECAL, Recoil Not Illustrated BS-200658GS
...
KIT, Tag, Warning, Srv Not Illustrated BS-195015GS

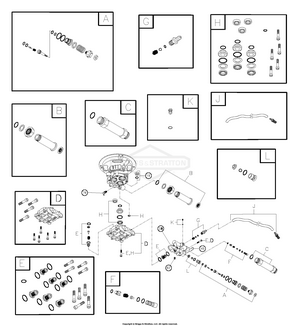

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE (not shown) BS-190586GS
...
A
KIT, UNLOADER STEM Service kits include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ALUM Service kits include all parts shown within the box. BS-190632GS
...
C
FITTING Service kits include all parts shown within the box. BS-201497GS
...
D
KIT, HEAD BRASS Service kits include all parts shown within the box. BS-193808GS
...
E
KIT,CHECK VALVES Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS
...
FILTER, Inlet Not Illustrated BS-B2384GS
...
...
...
