Weed Eater YM600 Electric Trimmer, YM600

Model: YM600 Electric Trimmer, YM600

Save
 Part Not Listed?Part Not Listed?
product name

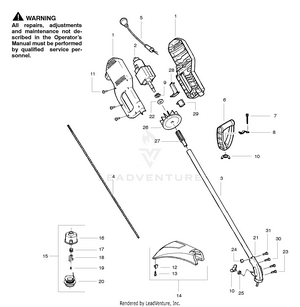

Electric Trimmer

...
...
1
Set-Housing PLN-530403717
...
2
Motor PLN-530402688
...
3
Assy-Tube PLN-530403742
...
4
Shaft-Flex PLN-530095391
...
5
Assy-Wiring Harness (Incl. Switch) PLN-530402803
...
6
Handle-Assist PLN-530038708
...
7
Bolt PLN-530015820
...
8
Clamp-Assist Handle PLN-530094742
...
9
Clip Retainer PLN-530403111
...
10
Nut PLN-530091373
...
11
Screw PLN-530016120
...
12
Line Limiter PLN-530095387
...
13
Screw-Line Limiter PLN-530015880
...
14
Kit-Shield Ass'y. (Incl.12 & 13) PLN-530069752
...
15
Accy-Cutting Head (Incl. 16-20) PLN-952701666
...
16
Assy-Hub PLN-530069690
...
17
Spring PLN-530401464
...
18
Retainer-Clip PLN-530401466
...
19
Screw w/ Washer-Head PLN-530401467
...
20
Accy-Spool w/Line PLN-952711527
...
21
Assy-Gear Box PLN-530095638
...
22
Washer-Drive Adaptor PLN-530403112
...
23
Screw PLN-530016202
...
24
Locknut PLN-530016284
...
25
Washer PLN-530092062
...
26
Fan PLN-530402798
...
27
Drive Adaptor Ass'y. PLN-530402801
...
28
Trigger PLN-530402799
...
29
Switch PLN-530402802
...
30
Screw PLN-530016224
...
31
Screw PLN-530016312
...
xx
Operator Manual Not Shown PLN-545117524
...
xx
Shaft Warning Decal Not Shown PLN-530403323
...
...
...
