Weed Eater XT45 Gas Trimmer

Model: XT45 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

CARBURETOR WA-218

...
...
1
Fuel Inlet Screen PLN-530035300
...
2
Limiter Cap PLN-530038404

DRIVE SHAFT & CUTTING HEAD

...
...
1
Drive Shaft-52" PLN-530095151
...
2
Throttle Hsg. (Right) PLN-530036514
...
3
Throttle Hsg. (Left) PLN-530036515
...
4
Assist Handle,Cushioned PLN-530014222
...
5
Screw PLN-530015957
...
6
Trigger Lever PLN-530036556
...
7
Drive Shaft Hsg. PLN-530095345
...
8
Nut-Handle PLN-530015610
...
9
Clamp-Handle PLN-530094742
...
10
HANDLE KIT PLN-530069347
...
11
Hex Wrench 5/32 PLN-530031159
...
12
Shaft Warning Decal PLN-530047899
...
13
MODEL PROLITE Type 1 (Incl. 15, 16 & 36) PLN-530069256
...
13
MODELS PROLITE Type 2 & XT45 (Inc. 14-16,19) PLN-530069681
...
14
Screw-Line Limiter PLN-530015636
...
15
Line Limiter PLN-530094570
...
16
Nut PLN-530403094
...
17
Screw-Gear Box PLN-530016140
...
18
Lockwasher-Gear Box PLN-530001642
...
19
Screw-Gear Box/Shield PLN-530016141
...
20
GEAR BOX REPLACEMENT KIT PLN-530071781
...
20
MODELS PROLITE Type 2 & XT45 PLN-530047291
...
21
Dust Cup PLN-530095351
...
22
Grass Washer PLN-530094571
...
23
Hub Ass'y PLN-530047378
...
24
Spring PLN-530094830
...
25
Release Button PLN-530094827
...
26
Spool w/ Line PLN-952701665
...
27
Cover PLN-530094828
...
28
Cutting Head Ass'y(Incl. 23-27) PLN-952701667
...
29
Screw-Gear Box/Shield PLN-530016107
...
30
Screw-Grease Refill PLN-530094616
...
31
Seal PLN-530094640
...
32
Dust Cup PLN-530094639
...
33
Washer PLN-530094189
...
34
Screw-Pinch Clamp PLN-530094612
...
35
Lockwasher-Pinch Clamp PLN-530015328
...
36
Screw-Line Limiter PLN-530015037
...
37
Screw-Locating PLN-530094612
...
0
Operator Manual, MODEL PROLITE Type 1 Not Shown. PLN-530083548
...
0
Operator Manual, MODELS PROLITE Type 3 & XT45 Not Shown. PLN-530084060

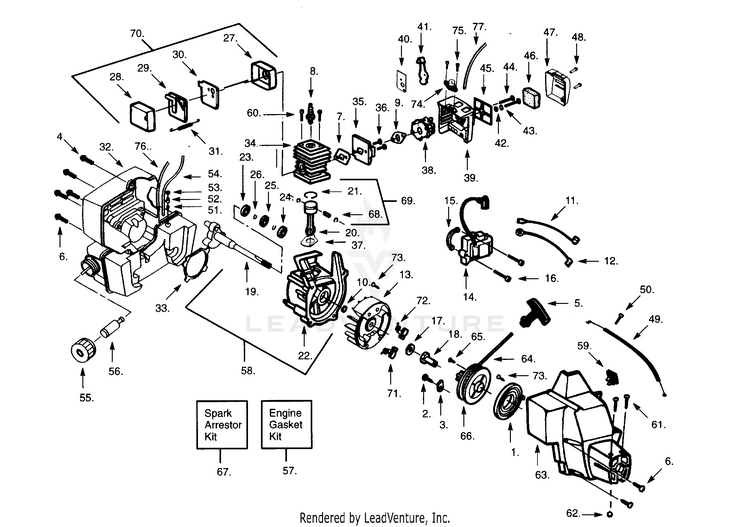

POWER UNIT

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw-Pulley PLN-530015775
...
3
Retainer PLN-530027523
...
4
Screw-Fan Hsg./Shroud PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Cylinder/Carb. Gasket PLN-530019243
...
8
Spark Plug (RCJ-8Y) PLN-530030075
...
9
Gasket-Carburetor PLN-530019194
...
10
RetainerRing-C'case PLN-530015945
...
11
Lead Wire PLN-530014663
...
12
SWITCH, GROUND WIRE PLN-581425901
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530039163
...
15
Spacer-Ignit. Module PLN-530036145
...
16
Screw-Ignit.Module PLN-530015954
...
17
Washer-Thrust PLN-530015828
...
18
Drive Coupling PLN-530027953
...
19
Crankshaft Ass'y. PLN-530014532
...
20
Connecting Rod Ass'y. PLN-530069615
...
21
Piston Ring PLN-530036404
...
22
Crankcase Ass'y. (Incl. 23-26) PLN-530014861
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retainer-Crankshaft PLN-530015941
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle-Exit PLN-530038602
...
30
Muffler Baffle-First PLN-530036579
...
31
Muffler Spring PLN-530016197
...
32
Shroud & Tank Assy. PLN-530047099
...
33
Gasket-C'case PLN-530019181
...
34
CYLINDER PLN-530012353
...
35
Carb. Adaptor Kit PLN-530069680
...
36
Screw-Carb. Adaptor PLN-530016014
...
37
Gasket-Cylinder PLN-530019223
...
38
CARBURETOR PLN-530069647
...
39
Air Box PLN-530037969
...
40
Choke Plate PLN-530037326
...
41
Choke Shutter PLN-530038102
...
42
Wave Washer PLN-530015254
...
43
Choke Spacer PLN-530015852
...
44
Screw-Carburetor PLN-530015887
...
45
Filter Plate PLN-530037413
...
46
Air Filter Foam PLN-530037331
...
47
Air Filter Cover PLN-530037292
...
48
Screw PLN-530015957
...
49
Assy Throttle Cable PLN-530071548
...
50
Screw-Throttle Cable PLN-530015814
...
51
Check Valve PLN-530026119
...
52
Element PLN-530029717
...
53
Retainer PLN-530029696
...
54
Fuel Line-Carb/Tank. PLN-530069247
...
55
Fuel Cap Ass'y. PLN-530014347
...
56
Assy-Fuel Pickup PLN-530095646
...
57
Gasket-Cylind./Carb. PLN-530069616
...
58
C'case & C'shaft Assy. (Incl. 10, 19,22-26) PLN-530014729
...
59
Switch-Momentary PLN-530071356
...
60
Screw-Cylinder PLN-530015953
...
61
Screw-Pinch Clamp PLN-530016072
...
62
Locknut-Clamp PLN-530015768
...
63
Fan Housing PLN-530014919
...
64
Rope Kit PLN-530069232
...
65
Screw-Rope Retain. PLN-530016080
...
66
STARTER PULLEY KIT PLN-530071786
...
67
Spark Arrestor Kit PLN-530069380
...
68
Piston Pin Retainer PLN-530015162
...
69
Piston Kit (Incl. 21,68 & Pin) PLN-530069621
...
70
Muffler Kit PLN-530069660
...
71
Starter Dog PLN-530029939
...
72
Starter Spring PLN-530047570
...
73
Screw-Starter Spg. PLN-530015882
...
74
Primer Bulb Ass'y. PLN-530038874
...
75
Screw-Type II PLN-530015780
...
76
Fuel Line-Prim./Tnk PLN-530069571
...
77
Fuel Line-Carb/Prim PLN-530069216
...
...
...
