Weed Eater XT100 Gas Trimmer

Model: XT100 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

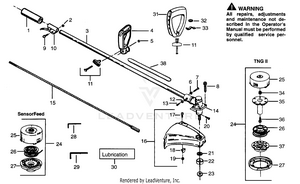

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES

...
...
1
Drive Shaft Grip PLN-530029445
...
2
Nut PLN-530015768
...
3
Drive Shaft Housing PLN-530094684
...
4
Handle PLN-530010957
...
5
Nut PLN-530015197
...
6
Lockwasher PLN-530001642
...
7
Screw PLN-530001711
...
8
Screw PLN-530016107
...
9
Screw PLN-530015774
...
10
Throttle Lever Ass'y. w/ Lock (Incl. 2 & 9) PLN-530010959
...
11
HANDLE KIT PLN-530069347
...
12
Lockwasher PLN-530015328
...
13
Screw PLN-530094612
...
14
GEAR BOX REPLACEMENT KIT PLN-530071781
...
15
Drive Shaft PLN-530094585
...
16
Shield Kit Ass'y. (Incl. 17-19) PLN-530069256
...
17
Screw PLN-530015037
...
18
Line Limiter PLN-530094570
...
19
Nut PLN-530403094
...
20
Screw PLN-530094616
...
21
Seal PLN-530094640
...
22
Dust Cup PLN-530094639
...
23
Grass Washer PLN-530094571
...
24
SensorFeed PLN-952701608
...
24
TNG II Single Exit PLN-530094954
...
25
Accy--Cutting Head PLN-952711550
...
25
TNG II PLN-530014274
...
26
SensorFeed PLN-952701607
...
26
TNG II PLN-952701606
...
27
Sensorfeed PLN-530094494
...
27
TNG II PLN-530094521
...
28
Hex Wrench (5/32) PLN-530031159
...
29
Hex Wrench (3/16) PLN-530031098
...
30
Shaft Lubrication PLN-952030139
...
31
Handle PLN-530014222
...
32
Nut PLN-530015610
...
33
Clamp PLN-530094742
...
34
Spring PLN-530094956
...
35
Locking Plate PLN-530069312
...
36
Screw PLN-530015542
...
37
Release Button PLN-530094522
...
38
Decal-Shaft Warning PLN-530029159
...
xx
Operator's Manual PLN-530067465

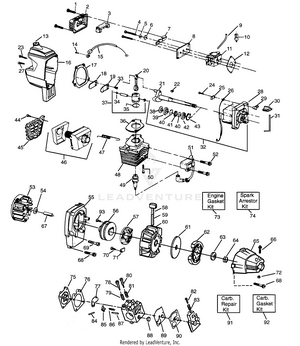

ENGINE & SHROUD

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530027526
...
8
Air Filter Plate PLN-530027527
...
9
Fuel Line Kit PLN-530069247
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
12
Carburetor Gasket Included in Carburetor Kwik Repair Kit. PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Screw PLN-530015775
...
15
Throttle Cable Ass'y., Model 114 PLN-530037497
...
16
Shroud & Tank Ass'y. PLN-530027982
...
17
Gasket Included in Carburetor Kwik Repair Kit. PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (Incl. Bearings) PLN-530010960
...
21
Crankshaft Ass'y. See Serv. Ref. 1 PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015772
...
24
Screw PLN-530015780
...
25
Kill Switch Insulator PLN-530027546
...
26
Lead Wire PLN-530027547
...
27
Screw PLN-530015771
...
28
Crankcase Ass'y. (Incl. 39-42) PLN-530014016
...
29
Switch Ramp PLN-530027545
...
30
Switch Button PLN-530038309
...
31
Switch Spring PLN-530027959
...
32
Assy-C'case/C'shaft (Incl. 21, 28 & 39-43) PLN-530071705
...
33
SCREW 6-19X.437 PLN-545227101
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring PLN-530025875
...
36
GASKET CYL W/ ADHESIVE Included in Carburetor Kwik Repair Kit. PLN-530019267
...
37
Piston Kit (Incl. 34, 35 & pin) PLN-530069899
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027781
...
46
Muffler Kit PLN-530069310
...
47
Muffler Spring PLN-530036409
...
48
Cylinder PLN-530069626
...
49
Spark Plug PLN-530030077
...
50
Screw PLN-530015239
...
51
Ignition Module Kit PLN-530039134
...
52
Screw PLN-530015816
...
53
Flywheel Ass'y. PLN-530039189
...
54
Washer PLN-530016030
...
55
Fan Housing PLN-530027948
...
56
Kit-Starter Pulley PLN-530071387
...
57
STARTER SPRING PLN-545008010
...
58
Starter Handle PLN-530027569
...
59
Rope Kit PLN-530069232
...
60
Pulley Housing Ass'y. PLN-530014009
...
61
Clutch Washer PLN-530094189
...
62
Clutch Ass'y. Kit PLN-530069254
...
63
Washer PLN-530015796
...
64
Nut PLN-530001733
...
65
Clutch Housing PLN-530014017
...
66
Screw PLN-530015767
...
67
Spacer PLN-530027511
...
68
Screw PLN-530015770
...
69
Screw PLN-530015769
...
70
Screw PLN-530015496
...
71
Pulley Retainer PLN-530027523
...
72
Locknut PLN-530015768
...
73
Engine Gasket Kit PLN-530069276
...
74
Spark Arrestor Kit PLN-952701612
...
75
DIAPHRAGM PLN-503896701
...
76
Metering Diaphragm Gasket PLN-530035151
...
77
GASKET PLN-501781301
...
78
H-NEEDLE PLN-501782201
...
79
Hi Speed Needle Spring PLN-530035036
...
80
Idle Needle PLN-530035141
...
81
Idle Needle Spring PLN-530035023
...
82
Idle Speed Screw PLN-530035203
...
83
Spring Included in Carburetor Kwik Repair Kit. PLN-501667801
...
84
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
85
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
86
Metering Lever Spring Included in Carburetor Kwik Repair Kit. PLN-530035188
...
87
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
88
Inlet Screen PLN-530035178
...
89
PUMP DIAPHRAGM PLN-504130807
...
90
GASKET PLN-504130906
...
91
Carb. Kwik Repair Kit PLN-530035260
...
92
Carb. Gasket/Diaphragm Kit PLN-530035185
...
93
Screw PLN-530016080
...
xx
Instruction Decal Not Shown. PLN-530027986
...
xx
Carton Contents Bag Not Shown. PLN-530014056
...
...
...
