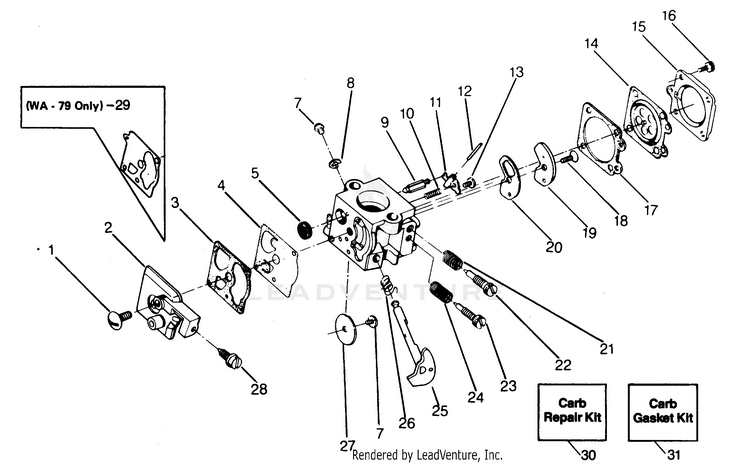

CARBURETORS WA-149, WA-79 BREAKDOWN

...
...
1
Screw - Pump Cover PLN-530035017
...
2
WA-149 (#35183) PLN-530035191
...
2
WA-79 PLN-530035154
...
3
GASKET PLN-504130906
...
3
WA-79 PLN-530035009
...
4
PUMP DIAPHRAGM PLN-504130807
...
4
WA-79 PLN-530035152
...
5
Screen-Inlet Included in Carburetor Kwik Repair Kit. PLN-530035178
...
7
Screw - Throttle Shaft Included in Carburetor Kwik Repair Kit. PLN-530035015
...
8
Clip - Throttle Shaft PLN-530035007
...
9
Needle Included in Carburetor Kwik Repair Kit. PLN-503117001
...
10
WT-141 - T1 Included in Carburetor Kwik Repair Kit. PLN-530035188
...
11
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127
...
12
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
13
Screw - Metering Lever Pin PLN-530035016
...
14
DIAPHRAGM PLN-503896701
...
15
Cover - Metering Diaphragm PLN-530035149
...
16
Screw Assembly - Metering Cover & Throttle Shaft Clip PLN-530035153
...
17
Gasket - Metering Diaphragm PLN-530035151
...
18
Screw - Circuit Plate Included in Carburetor Kwik Repair Kit. PLN-530035137
...
19
Plate - Circuit PLN-530035042
...
20
GASKET PLN-501781301
...
21
Spring - Hi Speed Needle PLN-530035036
...
22
H-NEEDLE PLN-501782201
...
23
Needle - Idle PLN-530035141
...
24
Spring - Idle Needle PLN-530035023
...
25
Shaft Assembly - Throttle PLN-530035132
...
26
Spring - Throttle Return PLN-530035138
...
27
Valve - Throttle PLN-530035133
...
28
Screw - Idle Adjustment PLN-530035156
...
29
Diaphragm - Pump (WA-79 only) PLN-530035135
...
30
Gasket Diaphragm Kit PLN-530069844
...
30
WA-79 PLN-530035145
...
31
WA-149 (#35183) PLN-530035185
...
31
WA-79 PLN-530035144

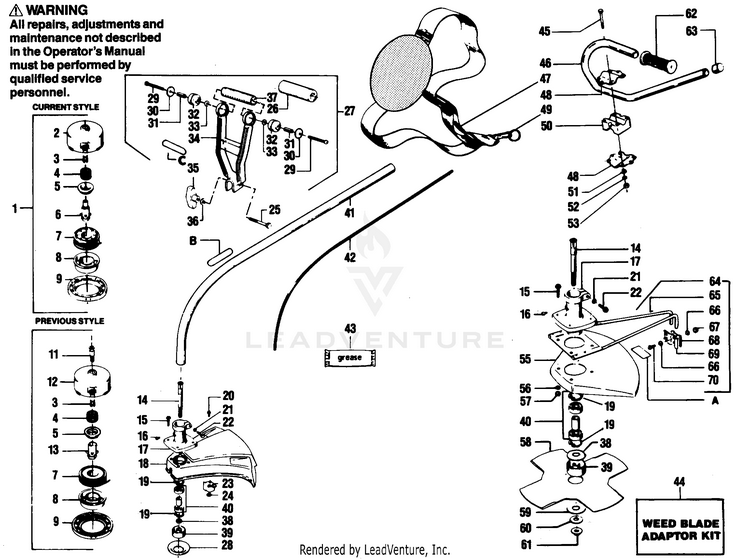

CUTTING HEAD(S) & DRIVE SHAFT

...
...
1
Cutting Head Ass'y - Current Style (Inc.2,9) PLN-530093894
...
2
Hub PLN-530071295
...
3
Line Saver PLN-530093898
...
4
Spring PLN-530340007
...
5
Cap Spring PLN-530328929
...
6
Drive Gear - Current Style PLN-530093897
...
7
Spool w/Line PLN-952701523
...
8
Tap Button PLN-530401183
...
9
Cover PLN-530092133
...
11
Bolt - Drive Adaptor - Previous Style PLN-530092064
...
12
Hub w/Line Saver - Previous Style PLN-530092131
...
13
Drive Gear - Previous Style PLN-530092069
...
14
Arbor Shaft PLN-530093846
...
15
Screw PLN-530016107
...
15
Model XR-75,XR-85 PLN-530625509
...
16
Screw - #10 - 16 x 1/4" - Self Tapping PLN-530015518
...
17
Bearing Housing Ass'y (Inc. #14, 19, 21, 22, 38 & 39) PLN-530093214
...
18
Shield Assembly - 18" (Inc. #20, 23 & 24) Model XR-80 PLN-530093886
...
19
Retainer - Bearing PLN-530091783
...
20
Screw - #10 - 24 x 5/8" - Hex Hd. - Line Limter - Model XR-80 PLN-530015037
...
21
Washer - #1/4 Int. Tooth Lock PLN-530092227
...
22
Screw - Pinch Clamp - #1/4 - 20 x 1" Model XR-80 only (Inc. #23-37) PLN-530625509
...
23
Line Limiter PLN-530093853
...
24
Nut PLN-530403094
...
25
Hex Bolt PLN-530015737
...
26
Cushion - Handle Center Section PLN-530026009
...
27
Handle - Antivibe Assembly (Inc. #29-30) PLN-530010642
...
28
WASHER PLN-530092218
...
xx
SCREW PLN-920092218
...
29
Screw - Pan Hd. - #12 - 11 x 2" PLN-530015561
...
30
Cup Isolator PLN-530024376
...
31
Spacer - Isolator PLN-530025985
...
32
Isolator - Vibration PLN-530024373
...
33
Washer - #1/4 Flat PLN-530015209
...
34
Handle - Antivibe PLN-530093859
...
35
Knob - #1/4 - 20 PLN-530092059
...
36
Washer - #1/4 Flat PLN-530092062
...
37
Center Section - Handle PLN-530025986
...
38
Washer - #3/8 - Dust Cup PLN-530092216
...
39
Dust Cup PLN-530092359
...
40
Bearings & Spacer Kit PLN-530069086
...
41
Drive Shaft Housing PLN-530093726
...
42
Flexible Drive Shaft PLN-530092261
...
43
LUBE, FLEX SHAFT NLA PLN-952708514
...
44
Weed Blade Adaptor Kit - Model XR-80 (Inc. #45-70) PLN-952701566
...
45
Bolt - #1/4 - 20 x 2" Hex PLN-530015405
...
46
Barrier Handlebar PLN-530093169
...
47
Shoulder Strap PLN-530094417
...
48
Clamp - Handleabr PLN-530092079
...
49
Key Ring - Shoulder strap PLN-530092231
...
50
Block - Handlebar PLN-530092081
...
51
Washer - #1/4 Flat PLN-530001503
...
52
Washer - #1/4 Lock PLN-530001642
...
53
Nut - #1/4 - 20 Hex PLN-530015197
...
55
Shield - Aluminum PLN-530092212
...
56
Washer - #1/4 Flat PLN-530001503
...
57
Nut - Deflector to Brg. Hsg. (#1/4 - 20) PLN-530001615
...
58
Blade - 4 Tooth Weed PLN-952701546
...
59
Washer - #3/8 Flat PLN-530093751
...
60
Washer--Belleville PLN-530016240
...
61
Flange Nut - #3/8 - 24 PLN-530093748
...
62
Grip - Handlebar PLN-530092086
...
63
End Cap - Handlebar PLN-530092192
...
64
Line Limiter Ass'y. (Inc. #65-70) PLN-530092244
...
65
Line Limiter Bracket PLN-530092226
...
66
Washer PLN-530015123
...
67
Nut - #10 - 24 Locking PLN-530015064
...
68
Clamp - Line Limiter Front PLN-530092224
...
69
Clamp - Line Limiter Rear (Inc. Blade) PLN-530092234
...
70
Screw - #10 - 24 x 3/8" PLN-530015557
...
A
Decal - Blade Rotation Waming PLN-530024886
...
B
Upper PLN-530027429
...
B
Lower PLN-530027404
...
C
Decal - Antivibe (Warning) PLN-530026248
...
xx
Tap-N-Go Repair Kit for Old Style - Optional (Inc. #4-5, 8-9 & 13) Not Shown. PLN-952701569
...
xx
Model XR-75 Not Shown. PLN-530064345
...
xx
Model XR-80 Not Shown. PLN-530066929
...
xx
Model XR-80 Not Shown. PLN-530060632
...
xx
Model XR-85 Not Shown. PLN-530060633

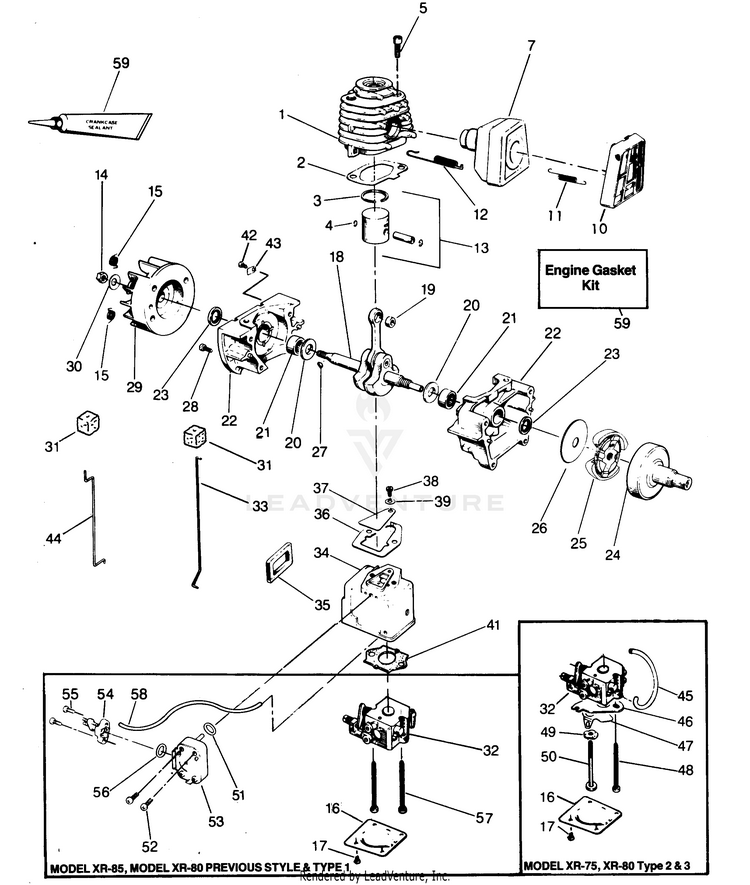

POWER UNIT

...
...
1
Model XR-80,XR-85 PLN-530012071
...
1
Model XR-75 PLN-530012070
...
2
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219
...
3
Model XR-85, XR-80 Type 1 & 2 PLN-530024929
...
3
Model XR-80 - Type 3 PLN-530026681
...
3
Model XR-75 PLN-530024302
...
4
Retainer - Wrist Pin PLN-530015162
...
5
Screw #1/4 - 20 x 3/4" - Hex Soc. Hd. - Cylinder PLN-530015239
...
10
Guard - Muffler PLN-530024855
...
11
Spring - Muffler Guard PLN-530024932
...
12
Muffler Spring PLN-530036409
...
13
Model XR-85,XR-80 Previous Style & Type 1 & 2 PLN-530022238
...
13
Model XR-80 - Type 3 PLN-530069241
...
13
Model XR-75 PLN-530022198
...
14
Nut - Flywheel PLN-530626605
...
15
Spring - Starter Dog PLN-530042049
...
16
Model XR-80,XR-85 PLN-530026029
...
17
Screw - #8 - 18 x 9/16" - Pan Hd Carburetor Case Cover PLN-530015235
...
18
Model XR-75,XR-85, XR-80 Previous Style & Type 1, 2 PLN-530022202
...
18
Model XR-80 - Type 3 Only PLN-530010844
...
19
Model XR-75,XR-85, XR-80 Previous Style & Type 1, 2 PLN-530032057
...
19
Model XR-80 - Type 3 Only PLN-530032092
...
20
Washer - Thrust - Crankcase PLN-530015351
...
21
Bearing - Crankshaft PLN-530032029
...
22
Crankcase Ass'y. (Inc. #21, 23 & Qty. 1 of #28) PLN-530010757
...
23
Seal - Crankcase Included in Engine Gasket Kit. PLN-530019059
...
24
Drum & Coupling Assembly PLN-530010797
...
25
Kit - Clutch Assembly (Inc. Clutch Washer) - See Service Ref. 1 & 7 PLN-530069194
...
26
Kit - Clutch Washer PLN-530069196
...
27
Key - Flywheel PLN-530015126
...
28
Screw - #10 - 24 x 5/8" Fil. Hd. - Crankcase PLN-530015369
...
29
Flywheel Assembly (Inc. #15) PLN-530039114
...
30
Washer - Flywheel PLN-530015127
...
31
Boot - Throttle/Choke Wire Included in Engine Gasket Kit. PLN-530023373
...
32
Carburetor (See Service Ref. 2 - for Model XR-75 only) PLN-530035183
...
33
Model XR-75, XR-80 Type 2 & 3 PLN-530024902
...
33
Model XR-85, XR-80 - Previous Style & Type 1 PLN-530026177
...
34
Model XR-85, XR-80 Previous Style & Type 1 PLN-530026046
...
34
Model XR-75, Model XR-80 - Type 2 & 3 PLN-530024409
...
35
Seal - Carburetor Case Included in Engine Gasket Kit. PLN-530019105
...
36
Gasket - Carburetor Case to Crankcase Included in Engine Gasket Kit. PLN-530019108
...
37
Reed Valve PLN-530024438
...
38
Screw - #6 - 19 x 5/16" - Pan. Hd. - Reed Valve PLN-530015241
...
39
Washer - Reed Valve Screw PLN-530023367
...
41
Gasket - Carburetor Included in Engine Gasket Kit. PLN-530019115
...
42
Screw - #8 - 32 x 5/16" - Choke Wire Clamp PLN-530015004
...
43
Clamp - Choke Wire PLN-530024651
...
44
Model XR-80 - Type 2 & 3 PLN-530026236
...
45
Model XR-75, XR-80 - Type 2 PLN-530021043
...
45
Model XR-80 - Type 3 PLN-530069238
...
46
Model XR-80 - Type 2 & 3 PLN-530026237
...
47
Shutter - Choke PLN-530024558
...
48
Screw - #10 - 24 x 1-7/8" - Carburetor PLN-530015379
...
49
Washer - Wave PLN-530015254
...
50
Screw - #10 - 24 x 2-1/8" - Carburetor Shoulder PLN-530015404
...
51
O-Ring (Orifice) PLN-530019131
...
52
Screw - #8 - 18 x 1" - Accumulator PLN-530015565
...
53
Accumulator Assembly (Inc. #51 & 54) PLN-530010651
...
54
Cap Assembly - Accumulator (Inc. #56) PLN-530010677
...
55
Screw - #8 - 16 x 9/16" PLN-530015235
...
56
O-Ring (Accumulator Chamber) PLN-530019128
...
57
Screw - #10 - 24 x 2-1/4" - Fil. Hd. - Carburetor PLN-530015566
...
58
Fuel Line - Carburetor PLN-530021055
...
59
Engine Gasket Kit PLN-530069219

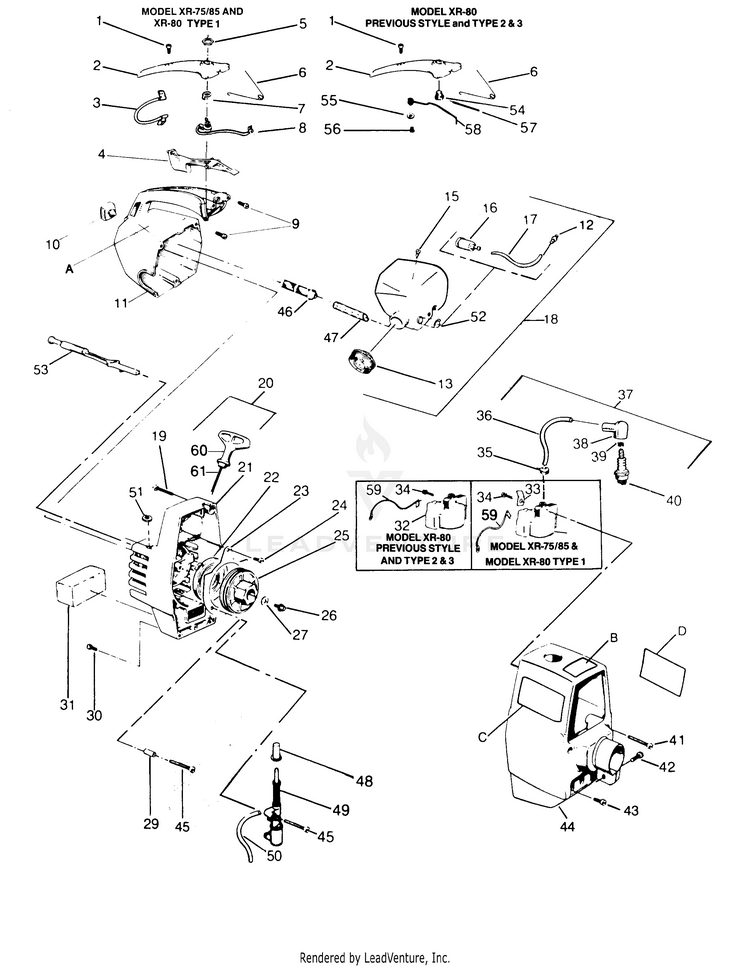

STARTER & SHROUD

...
...
1
Screw - #8 - 16 x 3/4" Pan Hd. - Handle Cover PLN-530015247
...
2
Model XR-75,XR-85,XR-80 Type 1 PLN-530024665
...
2
Model XR-80 Previous Style & Type 2, 3 PLN-530024661
...
3
Wire - Lead - Grounding Switch PLN-530039122
...
4
Throttle Trigger PLN-530024365
...
5
Switch- Plate and Nut PLN-530002582
...
6
Spring - Trigger PLN-530024461
...
7
Washer - Grounding Switch PLN-530024569
...
8
Kit - Grounding Switch (Inc. #3, 5, 7 & 33) PLN-530069182
...
9
Screw-Line Limiter PLN-530015814
...
10
Bumper - Fuel Tank Hsg. PLN-530024436
...
11
Handle & Fuel Tank Hsg. PLN-530024656
...
12
Model XR-75; Model XR-80 - Type 2 PLN-530025472
...
12
Model XR-80 Type 3 PLN-530026981
...
13
Assy-Fuel Cap PLN-530014347
...
15
Duckbill Valve - Fuel Tank PLN-530026119
...
16
Model XR-75 PLN-530091878
...
16
Model XR-85, XR-80 Type 1 & 2 PLN-530026931
...
16
Assy-Fuel Pickup PLN-530095646
...
17
Model XR-85, XR-80 Type 1 & Previous Style PLN-530021054
...
17
Model XR-75 PLN-530021042
...
17
Line Kit - Model XR-80-Type 2 & 3 PLN-530069247
...
18
Model XR-75, XR-80 - Type 2 & 3 PLN-530010776
...
18
Model XR-85, Model XR-80 - Type 1 PLN-530010773
...
19
Model XR-75/85 PLN-530015376
...
21
Kit - Fan Housing PLN-530069178
...
22
KIT STARTER SPRING PLN-545008009
...
23
Air Baffle PLN-530026035
...
24
Model XR-75,XR-85 PLN-530015373
...
25
Model XR-80,XR-85 PLN-530026048
...
26
Screw PLN-530016141
...
27
Washer - #10 - Starter Pulley Screw PLN-530015123
...
29
Spacer - Air Baffle - Model XR-75, Model XR-80 Type 2 & 3 PLN-530026122
...
30
Model XR-75,XR-85 PLN-530015168
...
31
Air Filter PLN-530024371
...
32
Kit-Ignition Module PLN-530069181
...
33
Electrical Tab - Model XR-75/85 and XR-80 Type 1 PLN-530025995
...
34
Screw PLN-530015816
...
35
Grommet - Plug Wire PLN-530024435
...
36
High Tension Lead Wire PLN-530039082
...
37
High Tension - Lead Assembly (Incl. #17, 18 & 19) PLN-502039103
...
xx
PLN-30039103
...
38
Boot - Spark Plug PLN-530003934
...
39
Spark Plug Boot PLN-507475326
...
40
Spark Plug (CJ-14) PLN-530030077
...
41
Screw - #10 - 24 x 1-1/2" - Shroud Top PLN-530015376
...
42
BOLT PLN-530093802
...
xx
HAND GUARD PLN-506093802
...
43
Screw - #10 - 24 x 5/8" Shroud Bottom PLN-530015168
...
44
Shroud PLN-530011778
...
45
Model XR-75,XR-85 PLN-530015305
...
46
Filter - Fuel (Inlet Line) PLN-530026109
...
47
Line - Fuel Inlet PLN-530021052
...
48
Injector Button PLN-530026032
...
49
Pump Assembly (Inc. #50) PLN-530010738
...
50
Line - Pump to Accumulator PLN-530021053
...
51
Bearing - Nyliner PLN-530026118
...
52
Clip - Retainer - Inlet Line - Fuel Tank PLN-530026178
...
53
Choke Knob PLN-530024303
...
54
Button - Kill Switch PLN-530026679
...
55
Washer - Kill Switch PLN-530015412
...
56
Screw - #8 - 16 x 3/8" Pan Hd. Kill Switch PLN-530015407
...
57
Insulation - Switch Spring Previous Style Only PLN-530021036
...
58
Spring - Kill Switch PLN-530024407
...
59
Lead Wire - Kill Switch - All Models PLN-530024158
...
60
Handle-Starter PLN-530027569
...
61
Rope Kit PLN-530069232
...
A
Model XR-75 PLN-530025175
...
B
Model XR-85 PLN-530026511
...
B
Model XR-80 - Previous Style PLN-530026512
...
B
Model XR-80 - Type 1 PLN-530026719
...
B
Model XR-80 -Type 2 PLN-530027310
...
B
Model XR-80 -Type 3 PLN-530027462
...
C
Model XR-80 - Type 1, 2 PLN-530026138
...
C
Model XR-80 - Type 3 PLN-530027346
...
C
Model XR-85 PLN-530026141
...
C
Model XR-75 PLN-530024983
...
D
Model XR-80 - Type 1, 2 PLN-530026139
...
D
Model XR-80 - Type 3 PLN-530027347
...
D
Model XR-85 PLN-530026142
...
D
Model XR-75 PLN-530024982
...
...
...
Processing
