Weed Eater TE500CXL Gas Trimmer Type 1

Model: TE500CXL Gas Trimmer Type 1

Save
 Part Not Listed?Part Not Listed?
product name

Carburetor Assembly (WA226) P/N 530069754

...
...
1
Limiter Cap PLN-530038403
...
2
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069842
...
3
Gasket Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
530069754
Carburetor Assembly (WA226) PLN-530069754

Carburetor Assembly (WT631) P/N 530071635

...
...
530071635
Kit - Carburetor Assembly (WT-631) PLN-530071635

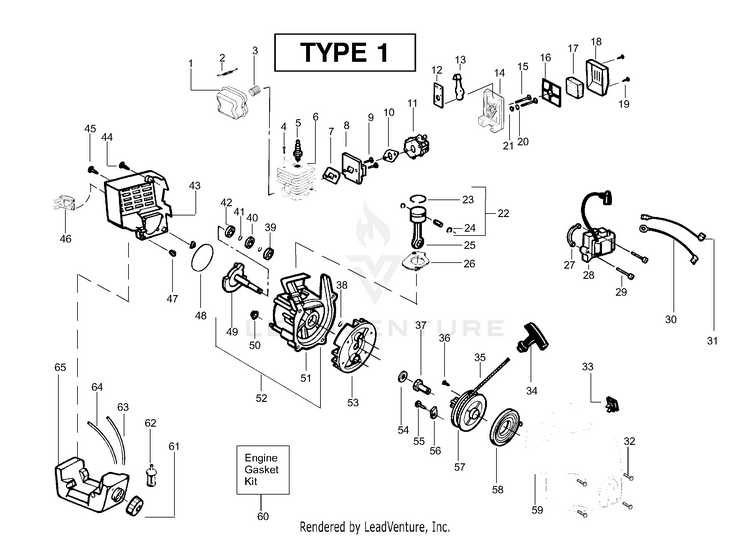

Engine Assembly Type 1

...
...
1
Kit - Muffler (Incl. 2,3) PLN-530071390
...
2
Muffler Spring PLN-530042088
...
3
Screen-Spark Arrestor PLN-530071391
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug PLN-503235112
...
6
Cylinder PLN-530012416
...
7
Gasket-Cylind./Carb. PLN-530071329
...
8
Kit - Carb. Adaptor PLN-530069758
...
9
Screw PLN-530015849
...
10
Gasket-Carb. PLN-530071329
...
11
Kit - Carburetor Ass'y (Incl. Limiter Cap) PLN-530069754
...
12
Choke Plate Mounting PLN-530038747
...
13
Choke Shutter PLN-530035499
...
14
Air Box PLN-530052431
...
15
Screw PLN-530015887
...
16
Plate - Filter Support PLN-530036569
...
17
Foam-Air Filter PLN-530036575
...
18
Cover-Air Filter PLN-530036568
...
19
Screw PLN-530015957
...
20
Spacer-Choke PLN-530015852
...
21
Washer PLN-530015254
...
22
Kit - Piston (Incl. 23, 24 & Pin) PLN-530069987
...
23
Ring-Piston PLN-530053565
...
24
Retainer-Piston Pin PLN-530015162
...
25
Assy-Connecting PLN-530069615
...
26
Gasket-Cylinder PLN-530071329
...
27
Spacer-Module PLN-530036145
...
28
Kit - Ignition Module PLN-545081826
...
29
Screw PLN-530015954
...
30
Assy-Ground Wire PLN-530054448
...
31
Assy-Lead Wire PLN-530054449
...
32
SCREW PLN-530016386
...
33
Kit - Switch PLN-530069572
...
34
Handle-Starter PLN-530027569
...
35
Kit - Rope PLN-530071325
...
36
Screw PLN-530016326
...
37
Coupling-Drive PLN-530027953
...
38
Retain. Ring-C'shaft PLN-530015941
...
39
Bearing-Outer PLN-530032124
...
40
Seal-C'case PLN-530019179
...
41
Retainer Ring-C'case PLN-530015945
...
42
Bearing-Inner PLN-530032125
...
43
Shroud-Rear PLN-530049233
...
44
Screw PLN-530015934
...
45
SCREW PLN-530016386
...
46
Guard-Muffler PLN-530054536
...
47
Isolator-Shroud PLN-530036793
...
48
O-Ring-C'case/Shrd PLN-530071329
...
49
Assy-Crankshaft PLN-530012413
...
50
Isolator-Crankcase PLN-530036792
...
51
Assy-Crankcase (Incl. 39-42) PLN-530071627
...
52
Assy-C'case & C'shaft (Incl. 38,49,51) PLN-530071337
...
53
FLYWHEEL ASSY PLN-545221701
...
54
Washer-Flat PLN-530015828
...
55
Screw PLN-530016224
...
56
Retainer-Can PLN-530053985
...
57
Kit-Starter Pulley (Incl. 36) PLN-530071324
...
58
KIT STARTER SPRING PLN-545008011
...
59
Assy. - Fan Housing PLN-530071415
...
60
Kit-Engine Gasket (Incl. 7,10,26,48) PLN-530071329
...
61
Assy-Fuel Cap PLN-530014347
...
62
Assy-Fuel Pickup PLN-530095646
...
63
Kit-Fuel Line (Small) PLN-530069247
...
64
Kit-Fuel Line (Large) PLN-530069216
...
65
Assy-Fuel Tank (Incl.cap,filter,fuel lines) PLN-530049299

Handle & Shaft Assembly

...
...
1
Bolt-Handle PLN-530016173
...
2
Handle-Assist PLN-530047919
...
3
Nut PLN-530091373
...
4
Screw PLN-530016179
...
5
Hsg.-Throttle (Left) PLN-530047924
...
6
Washer PLN-530016193
...
7
Spring-Compression PLN-530042084
...
8
SCREW PLN-530016386
...
9
Locator-left PLN-530049016
...
10
Drive Shaft - Flex PLN-530095982
...
11
Bracket-Shield PLN-530095812
...
12
Assy-Gearbox PLN-530071584
...
13
Dust Cup PLN-530095814
...
14
Assy. - Wound Hub (Incl. #15) PLN-952711597
...
15
Guide - Line PLN-530403949
...
16
Assy. - Cap 3/8" PLN-530054224
...
17
Kit-Shield Ass'y. (Incl. 18-21) PLN-530069779
...
18
Line Limiter PLN-530095387
...
19
Screw-Line Limiter PLN-530015805
...
20
Bolt-Shield PLN-530015820
...
21
Nut PLN-530091373
...
22
Screw PLN-530016371
...
23
Screw PLN-530016014
...
24
Assy-Drive Shaft Hsg. PLN-530071453
...
25
Assy-Throttle Cable PLN-530055546
...
26
Locator-right PLN-530054160
...
27
Actuator PLN-530049015
...
28
Trigger - Throttle PLN-530038682
...
29
Throttle Hsg. (Right) PLN-530047923
...
xx
Manual-Operator's (Type 1) Not Shown PLN-530086281
...
xx
Manual-Operator's (Type 2) Not Shown PLN-530086934
...
xx
Manual-Operator's (Type 3,4) Not Shown PLN-530163454
...
xx
Shaft Warning Decal Not Shown PLN-530055350
...
xx
Decal-Start Instruction Not Shown PLN-530055519
...
...
...
