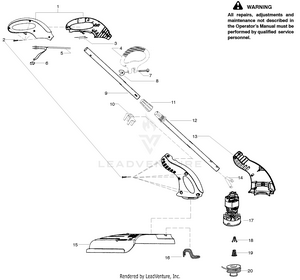

Weed Eater RTE112C Electric Trimmer

Model: RTE112C Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

Product Complete

...
...
1
Handle Set PLN-545077901
...
2
Screw (10 pcs.) PLN-530016120
...
3
Trigger PLN-530403818
...
4
Assy-Assist Handle (Incl. 7,8) PLN-530403996
...
5
Wire Harness (Incl. 6) PLN-545090401
...
6
Switch PLN-530402879
...
7
Bolt-Carriage PLN-530403886
...
8
Nut PLN-530091373
...
9
Assy-Upper Tube PLN-545088401
...
10
Button-Push PLN-530403820
...
11
Nut-Collett PLN-545045101
...
12
Assy-Lower Tube PLN-545088302
...
13
Housing Set PLN-545126501
...
14
Button-Snap PLN-530403835
...
15
Shield Ass'y. (Incl. line limiter) PLN-530404076
...
16
Guide - Edging PLN-530403845
...
17
Motor/Hub Ass'y PLN-530404110
...
18
Retainer-Spool PLN-530401957
...
19
Spring-Return PLN-530401958
...
20
Accy-W/E Spool (TNG 5) PLN-952701663
...
20
Operator Manual Not Shown PLN-545123837
...
20
Decal-Warning Not Shown PLN-545127201
...
...
...
