Weed Eater PE550 Gas Edger Type 4

Model: PE550 Gas Edger Type 4

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

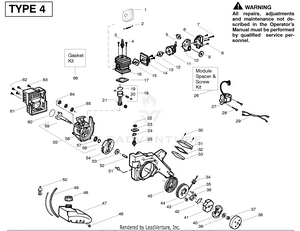

Engine Type - 4

...
...
1
Kit-Muffler (incl.#2) PLN-530071396
...
2
Spring-Muffler PLN-530042088
...
3
Plug-Spark (RCJ-6Y) PLN-952030249
...
4
Screw PLN-530015953
...
5
Gasket-Carb/Bracket(kit) PLN-530071611
...
6
Cover-Air Box PLN-530036622
...
7
Screw PLN-530015887
...
8
Screw PLN-530015886
...
9
Seal-Foam (kit) PLN-530071611
...
10
Base-Air Box PLN-530036626
...
11
Kit-Carb. (Wt-630) PLN-530071634
...
12
Gasket-Carb.(kit) PLN-530071611
...
13
Screw PLN-530016014
...
14
Adapter-Carb. PLN-530057618
...
15
Gasket-Cyl./Carb. (kit) PLN-530071611
...
16
Cylinder PLN-530012482
...
17
Gasket-Cyl. (kit) PLN-530071611
...
18
Kit-Piston (incl.19,20) PLN-530071476
...
19
PISTON RING PLN-545154009
...
20
Retainer-Pin PLN-530015162
...
21
CONNECTING ROD ASSY PLN-530049817
...
22
Boot-Switch w/nut PLN-530016038
...
23
Assy-Gound Switch PLN-530053920
...
24
Terminal-Grounding PLN-530037066
...
25
Assy-Gound Switch (incl. 22-24) PLN-530053920
...
26
Kit-Mod. spacer/screw PLN-530071731
...
27
Module-Ignition PLN-530039163
...
28
Screw PLN-530016357
...
29
Assy-Switch Wire PLN-530014655
...
30
Screw PLN-530015983
...
31
Cover-Air Filter PLN-530057612
...
32
Gasket-Cover (kit) PLN-530071611
...
33
Foam-Air Filter PLN-530057034
...
34
Eyelet PLN-530037224
...
35
Screw PLN-530015882
...
36
Cam-Starter PLN-530042073
...
37
Nut PLN-530626605
...
38
Drum-Clutch PLN-530036665
...
39
Washer-Flywheel PLN-530015127
...
40
Assy-Clutch PLN-530014832
...
41
Cup-Starter PLN-530036922
...
42
Wire-Starter Dog PLN-530042072
...
43
Dog-Starter PLN-530027162
...
44
Kit-Starter Pulley (incl.35) PLN-530069418
...
45
KIT STARTER SPRING PLN-545008006
...
46
ISOLATOR PLN-545132401
...
47
FUEL TANK ASSY (incl. 48,49,50) PLN-580236101
...
48
Assy-Fuel Cap PLN-530014347
...
49
Kit-Fuel Line PLN-530069599
...
50
Assy-Fuel Pick-up PLN-530095646
...
51
Clip-Pine Tree PLN-530057308
...
52
Spacer-Flywheel PLN-530036927
...
53
Washer-Flat PLN-530015828
...
54
Assy-Flywheel PLN-530057751
...
55
Assy-C/shaft & C/case (incl. 56,58,59) PLN-530071728
...
56
Retainer-C'shaft PLN-530015941
...
57
Seal PLN-530019264
...
58
Assy-C'case (incl.57,64,65) PLN-530012509
...
59
Assy-Crankshaft PLN-530014864
...
60
O-ring-c'case/shrd (kit) PLN-530071611
...
61
Shroud PLN-530057607
...
62
Screw PLN-530016386
...
63
Screw PLN-530016349
...
64
Bearing-Inner PLN-530032125
...
65
Bearing-Outer PLN-530055728
...
66
Kit Gasket (incl.5,9,12,15,17,32,60) PLN-530071611

Handle & Controls Type 4-5

...
...
1
Handle-Starter PLN-530027569
...
2
Handle-Upper PLN-530036677
...
3
Kit-Rope PLN-530069421
...
4
Eyelet-Handle PLN-530036985
...
5
Screw PLN-530015241
...
6
Assy-Throttle Cable PLN-530036674
...
7
Locknut PLN-530015768
...
8
Trigger-Throttle PLN-530036673
...
9
Spring-Throttle PLN-530036982
...
10
Bolt-Shoulder Tube PLN-530015999
...
11
Tube-Lower Handle PLN-530095103
...
12
Coupling-Handle PLN-530036983
...
13
Spring-Isolator PLN-530036981
...
14
Screw PLN-530015774
...
15
Spring-Handle PLN-530036984
...
16
Handle-Lower PLN-530036676
...
17
Screw PLN-530016273
...
18
Tube-Upper Handle PLN-530095104
...
19
Locknut PLN-530015768
...
20
Clamp-Cable PLN-530015982
...
21
Wheel-Rear PLN-530095663
...
22
Shield-Front Blade PLN-530095629
...
23
Screw PLN-530015843
...
24
Washer-Belleville PLN-530016281
...
25
Nut PLN-530016032
...
26
Screw PLN-530016406
...
27
Retainer Ring-Flat PLN-530037625
...
28
Shaft-Output PLN-530095070
...
29
Washer-Thrust PLN-530016042
...
30
Screw PLN-530015886
...
31
Screw PLN-530015774
...
32
Nut-Speed PLN-530015922
...
33
Gasket-Tube PLN-530019199
...
34
Pin-Axle PLN-530015997
...
35
Bridge-Pin PLN-530016002
...
36
Locknut PLN-530015768
...
37
Kit-Axle Cover/Fan Hsg PLN-530071989
...
38
Nut-Swing Arm PLN-530016063
...
40
Assy-Lever Adjustment PLN-530053792
...
41
Foot-Skid PLN-530054071
...
42
Arm-Swing PLN-530053501
...
43
Screw PLN-530015814
...
44
Kit-Axle Cover/Fan Hsg PLN-530071989
...
45
Screw PLN-530016386
...
46
Screw PLN-530015940
...
47
Screw PLN-530015814
...
48
Plate-Back PLN-530053544
...
49
Assy-Gear Box PLN-530053626
...
50
Washer-Bolt Adjust PLN-530016040
...
51
Washer-Wave PLN-530016280
...
52
Bolt-Shoulder PLN-530016275
...
53
Assy-Bearing Holder PLN-530037367
...
54
Screw PLN-530015814
...
55
Blade PLN-530095086
...
56
Kit-Gear Set PLN-530071258
...
56
Manual (type 2,3,4) Not Shown PLN-545186731
...
56
Hex Wrench (5/32) Not Shown PLN-530031159

Kit - Carburetor Assembly

...
...
530071634
KIT-CARB (WT-630) PLN-530071634

Service Reference

...
...
530019181
GASKET, CRANKCASE PLN-530019181
...
530056097
O-RING PLN-530056097
...
...
...
