Weed Eater LT7500 Gas Trimmer

Model: LT7500 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

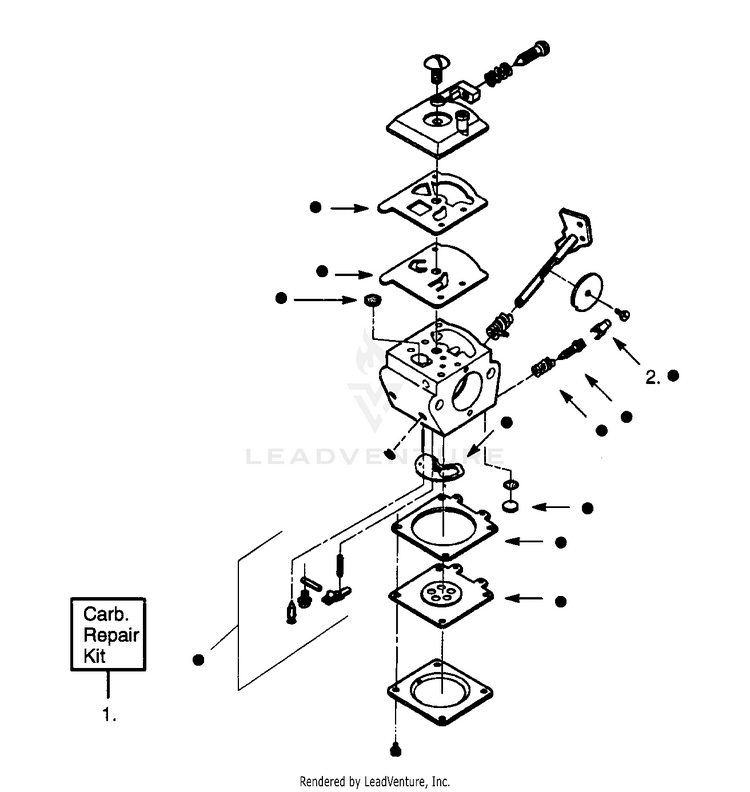

CARBURETOR WA-218 BREAKDOWN

...
...
1
Fuel Inlet Screen Parts indicated by an . in illustration are for clarity only, order complete assembly. PLN-530035300
...
2
Limiter Cap PLN-530038404

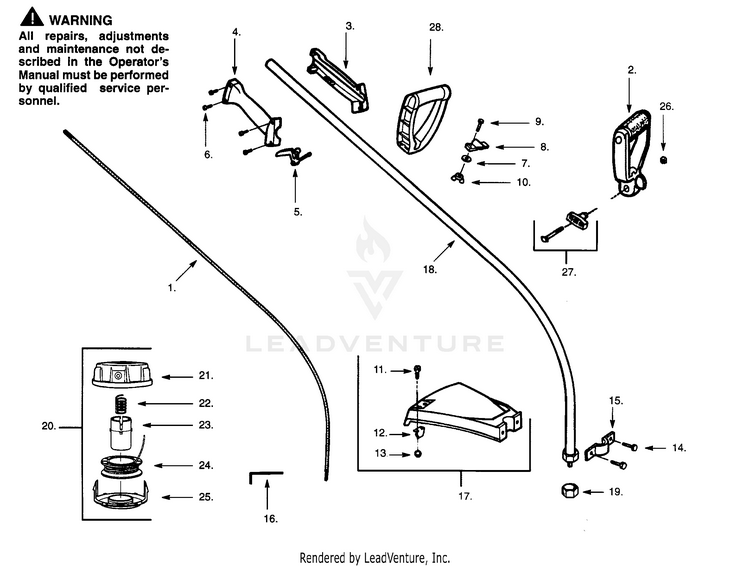

CUTTING HEAD & DRIVE SHAFT

...
...
1
Drive Shaft PLN-530095092
...
2
Handle PLN-530010957
...
3
Throttle Hsg. (Left) PLN-530036514
...
4
Throttle Hsg. (Right) PLN-530036515
...
5
Throttle Lever PLN-530036556
...
6
Screw PLN-530015957
...
7
Washer PLN-530092062
...
8
Clamp PLN-530094742
...
9
Bolt PLN-530015820
...
10
Nut PLN-530091373
...
11
Screw PLN-530015337
...
12
Line Limiter PLN-530094570
...
13
Nut PLN-530403094
...
14
Screw PLN-530016107
...
15
Bracket Shield PLN-530029373
...
16
Hex Wrench (5/32) PLN-530031159
...
17
Shield Kit Ass'y. (Inc. 11-14) PLN-530069299
...
18
Drive Shaft Hsg. PLN-530094874
...
19
Dust Cup PLN-530094543
...
20
TRIMMY HIT JR-5/16 PLN-695000394
...
21
Hub Ass'y. PLN-530094875
...
22
Spring PLN-530094830
...
23
Release Button PLN-530094827
...
24
Spool w/Line PLN-952701619
...
25
Cover PLN-530094828
...
26
Nut PLN-530015197
...
27
HANDLE KIT PLN-530069347
...
28
Assy-Assist Handle PLN-530055699
...
xx
Carton Contents Bag PLN-530047065
...
xx
English Not Shown. PLN-530081999
...
xx
French/English Not Shown. PLN-530082385
...
xx
English Not Shown. PLN-530029159
...
xx
French Not Shown. PLN-530029164
...
xx
French (Not a serviceable part) Not Shown. PLN-530038231
...
xx
English Not Shown. PLN-530038043

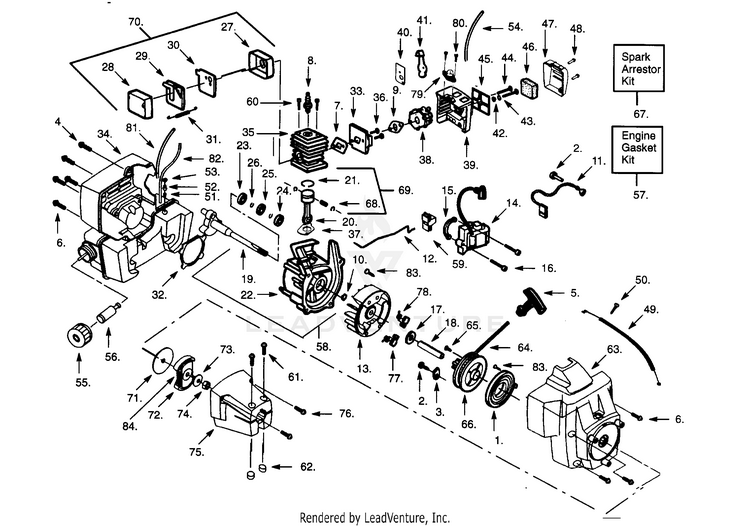

POWER UNIT

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw PLN-530015775
...
3
Retainer PLN-530027523
...
4
Screw PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Gasket - Cylin./Carb. PLN-530019233
...
8
Spark Plug PLN-530030078
...
9
Gasket PLN-530019194
...
10
Retainer PLN-530015945
...
11
Lead Wire PLN-530029606
...
12
Switch Wire Form PLN-530037321
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530039163
...
15
Spacer PLN-530036145
...
16
Screw PLN-530015954
...
17
Washer PLN-530015149
...
18
Spacer PLN-530037705
...
19
Crankshaft Ass'y. PLN-530014864
...
20
Connecting Rod Ass'y. PLN-530069615
...
21
Piston Ring PLN-530036404
...
22
Crankcase Ass'y. PLN-530014861
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retaining Ring PLN-530015941
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle-Exit PLN-530038602
...
30
Muffler Baffle-First PLN-530036579
...
31
Muffler Spring PLN-530016197
...
32
Gasket PLN-530019181
...
34
Type 1 PLN-530014857
...
34
Type 2 & 3 PLN-530047099
...
35
CYLINDER PLN-530012353
...
36
Screw PLN-530016014
...
37
Gasket PLN-530019223
...
38
Type 1 (WT-245) PLN-530035329
...
38
Carburetor Assembly - WT-639 PLN-530071639
...
39
Type 1 PLN-530037308
...
39
Type 2 & 3 PLN-530037969
...
40
Choke Plate PLN-530037326
...
41
Choke Shutter PLN-530038102
...
42
Wave Washer PLN-530015254
...
43
Choke Spacer PLN-530015852
...
44
Screw PLN-530015954
...
45
Filter Plate PLN-530037413
...
46
Air Filter Foam PLN-530037331
...
47
Air Filter Cover PLN-530037292
...
48
Screw PLN-530015957
...
49
Throttle Cable Ass'y. PLN-530037415
...
50
Screw PLN-530015814
...
51
Check Valve PLN-530026119
...
52
Element PLN-530029717
...
53
Retainer PLN-530029696
...
54
Fuel Line-Prim./Carb PLN-530069571
...
55
Fuel Cap Ass'y. PLN-530014347
...
56
Assy-Fuel Pickup PLN-530095646
...
57
Gasket-Cylind./Carb. PLN-530069616
...
58
C'case & C'shaft Ass'y. PLN-530071625
...
59
Switch Button PLN-530038309
...
60
Screw PLN-530015953
...
61
Screw PLN-530016072
...
62
Locknut PLN-530015768
...
63
Fan Housing PLN-530014920
...
64
Rope Kit PLN-530069232
...
65
Screw PLN-530016080
...
66
STARTER PULLEY KIT PLN-530071786
...
67
Spark Arrestor Kit PLN-530069380
...
68
Piston Pin Retainer PLN-530015162
...
69
Kit-Piston PLN-530069621
...
70
Muffler Kit PLN-530069660
...
71
Washer PLN-530015611
...
72
Clutch Ass'y. PLN-530069491
...
73
Washer PLN-530015828
...
74
Nut PLN-530626605
...
75
Clutch Hsg. PLN-530014923
...
76
Screw PLN-530015886
...
77
Starter Dog PLN-530029939
...
78
Spring - Starter Dog PLN-530047570
...
79
Primer Bulb Ass'y Type 2 & 3 PLN-530038874
...
80
Screw-Type II PLN-530015780
...
81
Fuel Line-Prim./Tnk PLN-530069216
...
82
Fuel Line-Carb./Tnk. PLN-530069247
...
83
Screw-Flywheel PLN-530015882
...
84
Clutch Ass'y. PLN-530014949
...
...
...
