product name

Weed Eater Handystik Lite

Model: Handystik Lite

Save
 Part Not Listed?Part Not Listed?
product name

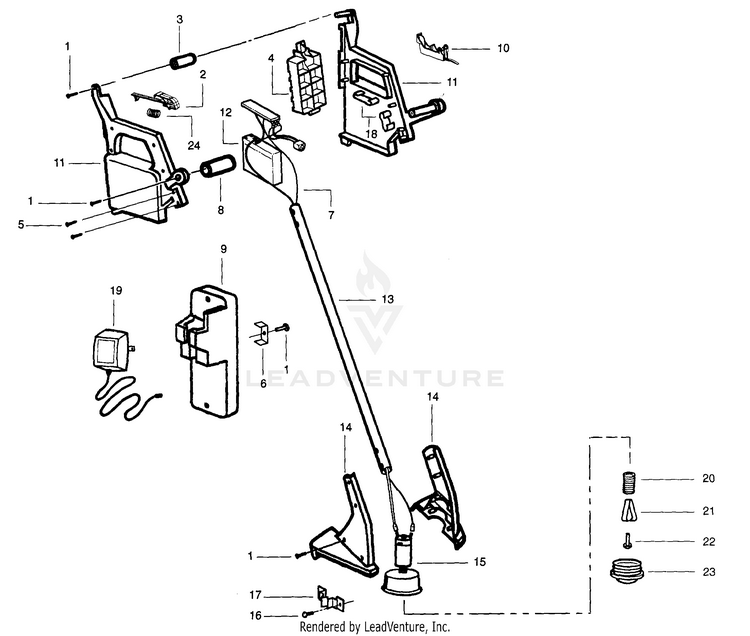

Trimmer Assembly

...
...
1
Screw PLN-530340179
...
2
Trigger Lockout PLN-530403324
...
3
Wrist Support Cushion PLN-530403325
...
4
Battery Door PLN-530403326
...
5
Screw PLN-530015994
...
6
Probe - Clamp PLN-530403328
...
7
Wire Harness Ass'y. PLN-530403329
...
8
Assist Handle Cushion PLN-530403330
...
9
Wall Bracket PLN-530403331
...
10
Trigger Switch PLN-530403332
...
11
Battery Hsg. Set PLN-530403333
...
12
Battery PLN-530053401
...
13
Tube w/ Warning Decal PLN-530403335
...
14
Motor Hsg. Set w/ Line Limiter PLN-530403336
...
15
Motor/Hub Ass'y. PLN-530403337
...
16
Screw PLN-530015775
...
17
Clamp - Motor PLN-530403338
...
18
Battery Spring PLN-530403329
...
19
Charger PLN-530053405
...
20
Spring PLN-530403395
...
21
Retainer Spring PLN-530403010
...
22
Screw w/Washer PLN-530401467
...
23
Spool w/Line PLN-952711527
...
24
Lockout Spring PLN-530403443
...
xx
Operator Manual Not Shown PLN-530084351
...
xx
Wall Anchor Not Shown PLN-530403470
...
xx
Screw Not Shown PLN-530403471
...
xx
Warning Decal Not Shown PLN-530053399
...
...
...
