Weed Eater HP28P Gas Trimmer

Model: HP28P Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

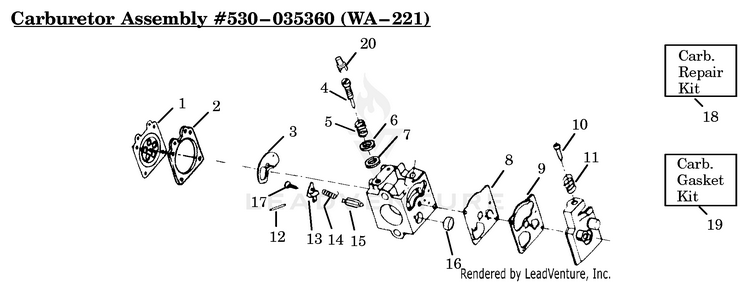

Carburetor Assembly (WA221) P/N 530035360

...
...
1
DIAPHRAGM (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-503896701
...
2
Metering Diaphragm Gasket (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-530035151
...
3
Circuit Plate Gasket (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-530035211
...
4
Mixture Needle PLN-530035341
...
5
Mixture Needle Spring PLN-530035342
...
6
Mixture Needle Washer PLN-530035217
...
7
"O" Ring Mixture (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-530035218
...
8
PUMP DIAPHRAGM (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-504130807
...
9
GASKET (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-504130906
...
10
Idle Speed Screw PLN-530035203
...
11
Spring PLN-501667801
...
12
Pin (Included in Carb. Kwik Repair Kit) PLN-505520125
...
13
Metering Lever (Included in Carb. Kwik Repair Kit) PLN-505520127
...
14
Metering Lever Spring (Included in Carb. Kwik Repair Kit) PLN-530035188
...
15
Needle (Included in Carb. Kwik Repair Kit) PLN-503117001
...
16
Fuel Inlet Screen (Included in Carb. Kwik Repair Kit) PLN-530035178
...
17
Metering Lever Pin Screw PLN-530035016
...
18
Carb. Kwik Repair Kit PLN-530035264
...
19
Gasket Diaphragm Kit PLN-530069844
...
20
Limiter Cap PLN-530035337
...
530-035360
Carburetor Assembly - WA-221 PLN-530035360

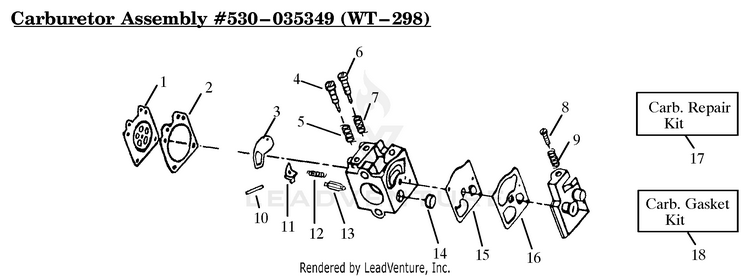

Carburetor Assembly (WT298) P/N 530035349

...
...
1
DIAPHRAGM (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-503896701
...
2
Metering Diaphragm Gasket (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-530035151
...
3
GASKET (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin (Included in Carb. Kwik Repair Kit) PLN-505520125
...
11
Metering Lever (Included in Carb. Kwik Repair Kit) PLN-505520127
...
12
Metering Lever Spring (Included in Carb. Kwik Repair Kit) PLN-530035188
...
13
Needle (Included in Carb. Kwik Repair Kit) PLN-503117001
...
14
Inlet Screen (Included in Carb. Kwik Repair Kit) PLN-530035178
...
15
PUMP DIAPHRAGM (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-504130807
...
16
GASKET (Included in Carb. Kwik Repair Kit & Gasket/Diaphragm Kit) PLN-504130906
...
17
Carb. Kwik Repair Kit PLN-530035260
...
18
Carb. Gasket/Diaphragm Kit PLN-530035185
...
530-035349
Carburetor Assembly - WT298 PLN-530035349

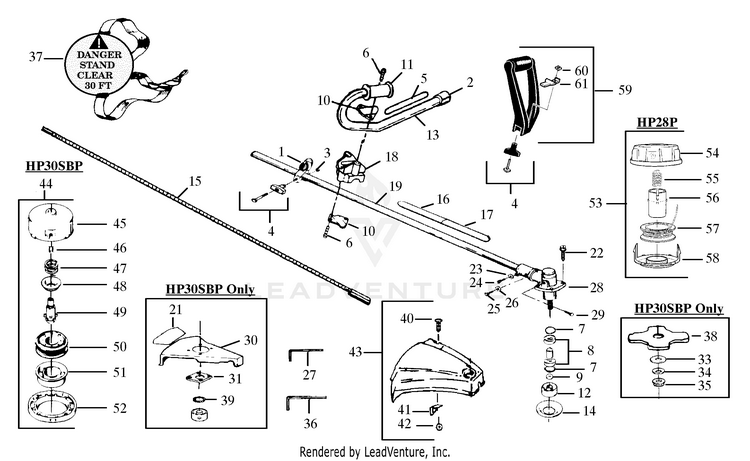

Cutting Head Assembly

...
...
1
Clamp Harness Ass'y. PLN-530094686
...
2
Handlebar Cap PLN-530092192
...
3
Nut PLN-530015197
...
4
HANDLE KIT PLN-530069347
...
5
Handlebar Warning Decal PLN-530027778
...
6
Screw PLN-530015791
...
7
Retainer PLN-530091783
...
8
Bearing & Spacer Kit PLN-530069086
...
9
Washer PLN-530092216
...
10
Handlebar Bracket PLN-530094572
...
11
Handlebar Grip PLN-530092086
...
12
Dust Cup PLN-530092359
...
13
Handlebar PLN-530010723
...
14
Grass Washer PLN-530094571
...
15
Drive Shaft Model HP28P PLN-530095146
...
15
Drive Shaft Model HP30SBP PLN-530094585
...
16
Shaft Warning Decal Upper PLN-530029162
...
17
Shaft Warning Decal Lower PLN-530029163
...
18
Handlebar Clamp PLN-530012207
...
19
Drive Shaft Housing Model HP28P PLN-530014772
...
19
Drive Shaft Housing Model HP30SBP PLN-530094684
...
21
Blade Direction Decal PLN-530027749
...
22
Screw (Use with metal shield) PLN-530015791
...
22
Screw (Use with plastic shield) PLN-530016107
...
23
Lockwasher PLN-530015328
...
24
Screw PLN-530094612
...
25
Screw PLN-530001711
...
26
Lockwasher PLN-530001642
...
27
Hex Wrench (5/32) PLN-530031159
...
28
GEAR BOX REPLACEMENT KIT PLN-530071781
...
29
Screw PLN-530094616
...
30
SHIELD PLN-530094633
...
31
Shield Retention Plate PLN-530027615
...
33
Washer PLN-530015792
...
34
Washer--Belleville PLN-530016240
...
35
Nut PLN-530015793
...
36
Hex Wrench (3/16) PLN-530031098
...
37
Shoulder Strap PLN-530094417
...
38
Weed Blade PLN-952701611
...
39
Seal PLN-530094640
...
40
Screw PLN-530015037
...
41
Line Limiter PLN-530094570
...
42
Nut PLN-530001543
...
43
Shield Kit Ass'y. (Incl. 40-42) PLN-530069256
...
44
Accy--Cutting Head (Incl. 45-52) PLN-952711550
...
45
Hub PLN-530071295
...
46
Line Saver PLN-530093898
...
47
Spring PLN-530340007
...
48
Cap Spring PLN-530328929
...
49
Drive Gear PLN-530093897
...
50
Spool w/ Line PLN-952701589
...
51
Tap Button PLN-530401183
...
52
Cover PLN-530092133
...
53
Accy--Cutting Head (Incl. 54-58) PLN-952711550
...
54
Hub Ass'y. PLN-530014773
...
55
Spring PLN-530094830
...
56
Release Button PLN-530094827
...
57
Spool w/Line PLN-952701619
...
58
Cover PLN-530094828
...
59
Assist Handle Kit (Incl. 60 & 61) PLN-530069496
...
60
Nut PLN-530015610
...
61
Clamp PLN-530094742
...
xx
Operator's Manual Model HP28P Not Shown PLN-530081850
...
xx
Operator's Manual Model HP30SBP Not Shown PLN-530081803
...
xx
Carton Contents Bag Model HP28P Not Shown PLN-530047125
...
xx
Carton Contents Bag Model HP30SBP Not Shown PLN-530047124
...
xx
Carton Model HP28P Not Shown PLN-530085006
...
xx
Carton Model HP30SBP Not Shown PLN-530061990

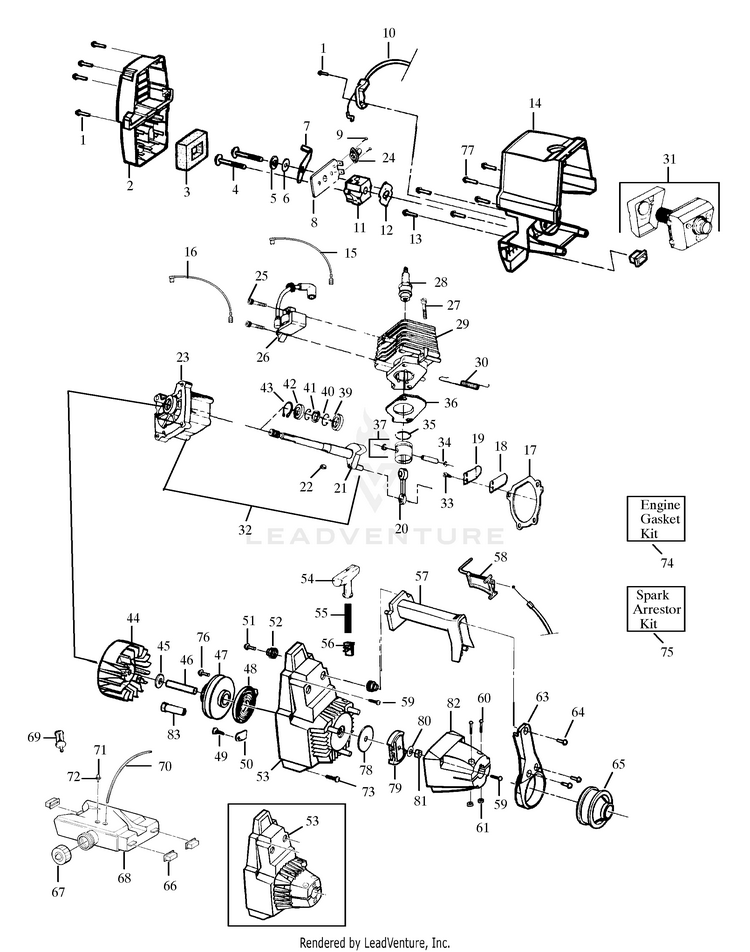

Engine Block & Shroud

...
...
1
Screw PLN-530015775
...
2
Muffler/Air Box Cover PLN-530036380
...
3
Air Filter Foam PLN-530036429
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
Air Filter Plate PLN-530037931
...
9
Screw PLN-530016085
...
10
Throttle Cable Ass'y. PLN-530037495
...
11
Carburetor Model HP28P PLN-530035360
...
11
Carburetor Model HP30SBP PLN-530035349
...
12
Carburetor Gasket (Included In Engine Gasket Kit PLN-530019164
...
13
Screw PLN-530015772
...
14
Shroud PLN-530037501
...
15
Lead Wire Ass'y PLN-530014663
...
16
SWITCH, GROUND WIRE PLN-581425901
...
17
Crankcase/Shroud Gasket (Included In Engine Gasket Kit PLN-530019154
...
18
Reed PLN-530036233
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. (Incl. Bearings) PLN-530010960
...
21
Crankshaft Ass'y. Model HP28P PLN-530010945
...
21
Crankshaft Ass'y. Model HP30SBP PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Crankcase Ass'y. (Incl. 39-42) PLN-530014016
...
24
Bulb Ass'y. PLN-530038874
...
25
Screw PLN-530015816
...
26
Ignition Module PLN-530039134
...
27
Screw PLN-530015239
...
28
Spark Plug PLN-530030077
...
29
Cylinder PLN-530012235
...
30
Muffler Attachment Spring PLN-530036409
...
31
Muffler Kit PLN-530069310
...
32
Crankcase & Crankshaft Ass'y Model HP28P (Incl. 21, 23, 38 & 43) PLN-530014004
...
32
Assy-C'case/C'shaft (Incl. 21, 23, 38 & 43) PLN-530071705
...
33
SCREW 6-19X.437 PLN-545227101
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring PLN-530025875
...
36
GASKET CYL W/ ADHESIVE (Included In Engine Gasket Kit PLN-530019267
...
37
Piston Kit (Incl. #34,35 & pin) PLN-530069899
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Flywheel Ass'y PLN-530047198
...
44
Flywheel Ass'y PLN-530039189
...
45
Washer Model HP28P PLN-530015828
...
45
Washer Model HP30SBP PLN-530016030
...
46
Flywheel Spacer - Model HP30SBP PLN-530027511
...
47
Kit-Starter Pulley PLN-530071387
...
48
STARTER SPRING PLN-545008010
...
49
Screw PLN-530015496
...
50
Retainer PLN-530027523
...
51
Screw PLN-530015843
...
52
Handle Isolator PLN-530037105
...
53
Fan Housing Model HP28P PLN-530014793
...
53
Fan Housing Model HP30SBP PLN-530014794
...
54
Starter Handle PLN-530027569
...
55
Rope Kit PLN-530069232
...
56
Switch-Momentary PLN-530071356
...
56
Switch Model HP30SBP PLN-530038113
...
57
Handle PLN-530036385
...
58
Trigger PLN-530036428
...
59
Screw PLN-530015814
...
60
Screw PLN-530015767
...
61
Locknut PLN-530015768
...
63
Handle Cover PLN-530036174
...
64
Screw PLN-530015934
...
65
Isolator AV PLN-530037115
...
66
Fuel Tank Isolator PLN-530029760
...
67
Fuel Cap Ass'y. PLN-530014777
...
68
Fuel Tank Ass'y. Non Primer units PLN-530014797
...
65
Fuel Tank Ass'y. Units with primer bulb PLN-530047128
...
69
Assy-Fuel Pickup PLN-530095646
...
70
Fuel Line Kit Fuel Line PLN-530069247
...
70
Fuel Line Kit Return Line PLN-530069238
...
71
Check Valve PLN-530026119
...
72
Retainer PLN-530029696
...
73
Screw PLN-530015935
...
74
Gasket Kit PLN-530069302
...
75
Spark Arrestor Kit PLN-952701612
...
76
Screw PLN-530016080
...
77
Screw PLN-530015771
...
78
Clutch Washer - Model HP30SBP PLN-530094189
...
79
Clutch Ass'y. Kit - Model HP30SBP PLN-530069254
...
80
Washer - Model HP30SBP PLN-530015796
...
81
Nut - Model HP30SBP PLN-530001733
...
82
Clutch Housing - Model HP30SBP PLN-530014795
...
83
Drive Coupling Model HP28P PLN-530027953
...
...
...
