Weed Eater GHT180LE Gas Hedge Trimmer Type 1

Model: GHT180LE Gas Hedge Trimmer Type 1

Save
 Part Not Listed?Part Not Listed?
product name

Carburetor Assembly (C1U-W13A) PN 530071633

...
...
530071633
Kit - Carburetor Assy - C1U-W13A PLN-530071633
...
530071718
Kit Choke Lever PLN-530071718

Carburetor Assembly (Zama W13) PN 530071601

...
...
1
Limiter Cap-Low PLN-530038478
...
2
Limiter Cap-High PLN-530038479
...
3
Carburetor Repair Kit (KIT = CONTENTS) PLN-530071354
...
4
Gasket/Diaphragm Kit (DOT = CONTENTS) PLN-530069969
...
xx
Kit-Carburetor Ass'y. PLN-530071633

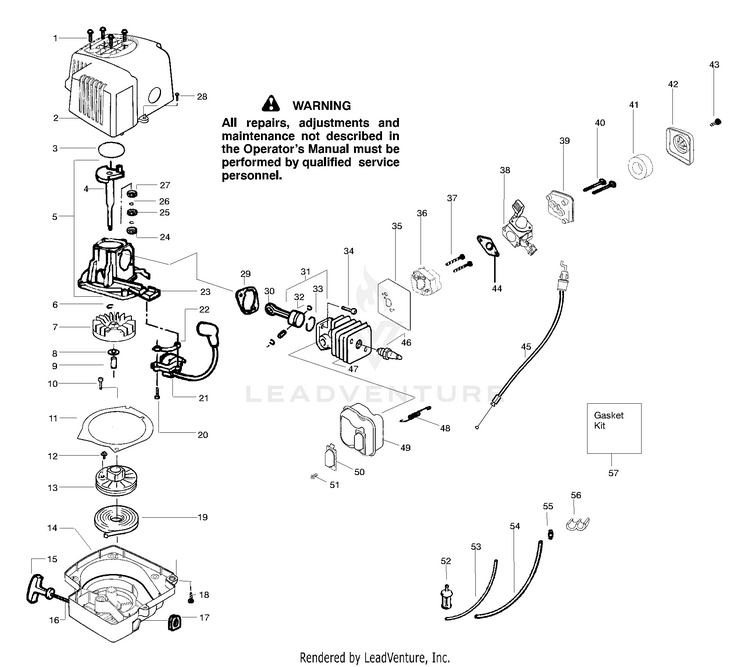

Engine Assembly Type 1

...
...
1
Screw PLN-530016386
...
2
Assy-Shroud/H'shield PLN-530055790
...
3
O-Ring-Shrd/C'case PLN-530071486
...
4
CRANKSHAFT ASSY PLN-545145801
...
5
Assy-C/case-C/shaft (Incl. #4,6 & 23-27) PLN-530071485
...
6
Ring-Retainer-C'shaft PLN-530015941
...
7
FLYWHEEL ASSY PLN-545221701
...
8
Washer-Flat PLN-530015828
...
9
Spacer-Flywheel PLN-530055729
...
10
Screw PLN-530015496
...
11
Plate-Baffle PLN-530055681
...
12
Screw PLN-530015882
...
13
Kit-Starter Pulley (Incl.# 12) PLN-530069353
...
14
Assy-Fan Housing PLN-530055762
...
15
Handle-Starter PLN-530027569
...
16
Kit-Rope PLN-530069232
...
17
Grommet-Ignition Module PLN-530019182
...
18
Screw-(f/hsg to shrd) PLN-530016386
...
19
STARTER SPRING PLN-545008010
...
20
Screw PLN-530015954
...
21
Kit - Ignition Module PLN-545081826
...
22
Spacer-Ign. Module PLN-530036145
...
23
Assy-Crankcase PLN-530012462
...
24
Bearing-Outer PLN-530032124
...
25
Seal-Crankcase PLN-530019179
...
26
Ring-Retainer-C'case PLN-530015945
...
27
Bearing-Inner PLN-530032125
...
28
Screw PLN-530015934
...
29
Gasket-Cylinder PLN-530071486
...
30
CONNECTING ROD ASSY PLN-530049817
...
31
Kit-Piston (Incl. 32 & 33) PLN-530071833
...
32
Retainer-Piston Pin PLN-530015162
...
33
RING PISTON PLN-545154001
...
34
Screw PLN-530015953
...
35
Gasket-Cyl./Carb. Adapt. PLN-530071486
...
36
Adapter-Carburetor PLN-530055459
...
37
Screw PLN-530016014
...
38
Kit-Carburetor Ass'y. PLN-530071633
...
38
Kit-Carburetor Ass'y. (C1U-W13A) PLN-530071633
...
39
Air Box PLN-530055680
...
40
Screw PLN-530016353
...
41
Air Filter Foam PLN-530047932
...
42
Air Filter Cover PLN-530055679
...
43
Screw PLN-530015957
...
44
Gasket-Carburetor PLN-530071486
...
45
Assy-Throttle Cable PLN-530055547
...
46
BPMR7A NGK SPARK PLUG PLN-503235111
...
47
Cylinder PLN-530012416
...
48
Spring-Muffler PLN-530042088
...
49
Kit-Muffler PLN-530071470
...
50
Kit-Spark Arrestor PLN-530071361
...
51
Screw PLN-530015241
...
52
Assy-Pick-up PLN-530095646
...
53
Kit-Fuel Line(small) PLN-530069247
...
54
Kit-Fuel Line(large) PLN-530069216
...
55
Fitting-Fuel Line PLN-530023877
...
56
Clip-Retainer PLN-530016103
...
57
Kit-Gasket (Incl. #3, 29, 35 & 44) PLN-530071486
...
xx
Operator Manual Not Shown PLN-530163356
...
xx
Decal-Warning Not Shown PLN-530047459

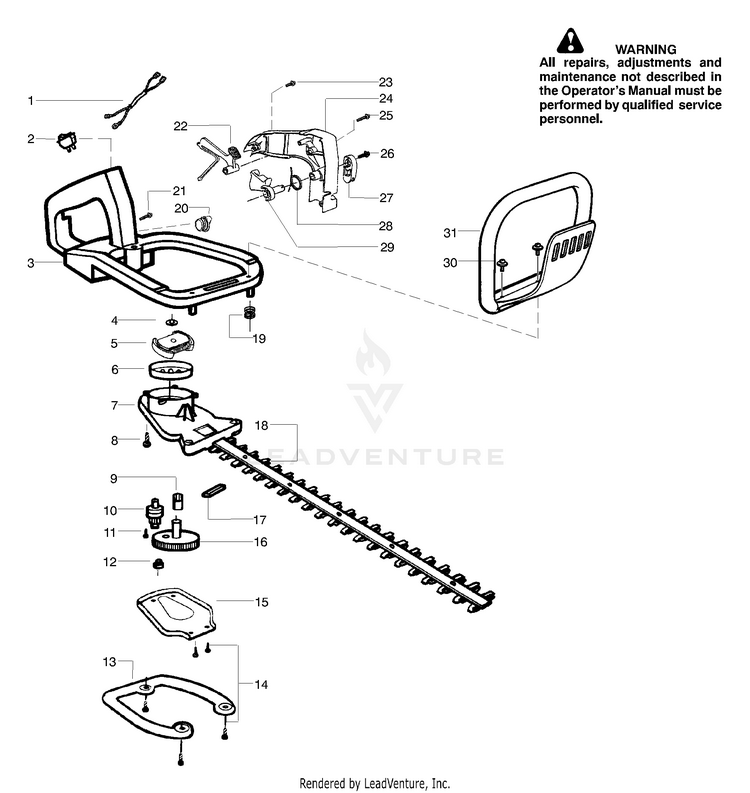

Handle & Blade Assembly Type 1

...
...
1
WIRE HARNESS ASSY (Incl. #2) PLN-545172901
...
2
Switch-Ignition PLN-530029954
...
3
HANDLE PLN-530071655
...
4
Washer-Clutch PLN-530015828
...
5
Kit-Clutch Assy. PLN-530014396
...
6
Assy-Drum PLN-530056069
...
7
Assy-Gear Box (Incl. #9-11) PLN-530071931
...
8
Screw PLN-530015886
...
9
Bearing-Gear PLN-530016013
...
10
Assy-Pinion PLN-530036228
...
11
Screw PLN-530015805
...
12
Bushing-Blade PLN-530032121
...
13
Plate-Isolator PLN-530036046
...
14
Screw PLN-530015934
...
15
Cover-Gear Box Plate PLN-530029916
...
16
Kit-Drive Gear Ass'y. (Incl. #12) PLN-530069355
...
17
Seal-Blade (Felt) PLN-530029948
...
18
Assy-Blade 19" PLN-530403228
...
19
Spring PLN-530029946
...
20
FUEL CAP ASSY W/RET LW PRM PLN-577858601
...
21
Screw PLN-530015770
...
22
Lockout-Throttle PLN-530053900
...
23
Screw PLN-530015934
...
24
Cover-Handle PLN-530038305
...
25
Screw PLN-530015940
...
26
Screw PLN-530015775
...
27
Lever-Trigger PLN-530029958
...
28
Spring-Trigger PLN-530036123
...
29
Trigger PLN-530053884
...
30
Screw PLN-530015955
...
31
Handle-Front PLN-530094992
...
...
...
