product name

Weed Eater Clipstick Cordless Trimmer

Model: Clipstick Cordless Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

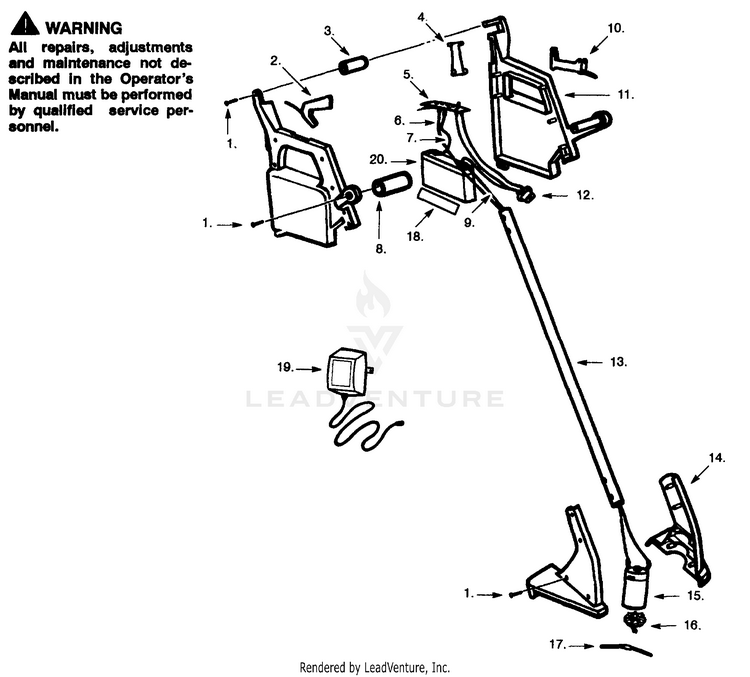

Clipstick Assembly

...
...
1
Screw PLN-530340179
...
2
Trigger Lock PLN-530402931
...
3
Wrist Support Cushion PLN-530400418
...
4
Door Line Storage PLN-530400413
...
5
Circuit Board Ass'y. PLN-530036586
...
6
Wire Ass'y. (Red) PLN-530400417
...
7
Wire Ass'y. PLN-530400470
...
8
Assist Handle Cushion PLN-530400419
...
9
Wire Ass'y. (Black) PLN-530400416
...
10
Trigger Switch PLN-530402856
...
11
Battery Hsg. Set PLN-530400449
...
12
Recepticle Ass'y. PLN-530400452
...
13
Tube w/ Warning Decal PLN-530400451
...
14
Motor Hsg. Set PLN-530400450
...
15
Motor PLN-530400425
...
16
Hub w/Line Retainer PLN-530400617
...
17
Line PLN-952701636
...
18
Foam Spacer PLN-530350017
...
19
Charger PLN-530400440
...
20
BATTERY PLN-530402816
...
xx
Operator Manual Not Shown PLN-530400429
...
xx
Warning Decal Not Shown PLN-530403062
...
...
...
