Weed Eater BC24W Gas Trimmer

Model: BC24W Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

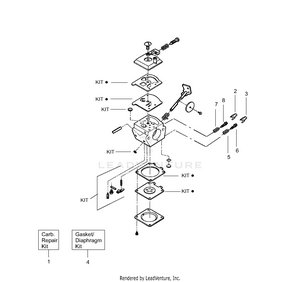

Carburetor - WT380

...
...
1
Carburetor Repair Kit (KIT = Indicates Contents) PLN-530069829
...
2
Limiter Cap (High-Red) PLN-530038318
...
3
Limiter Cap (Low-Blue) PLN-530038317
...
4
Gasket/Diaphragm Kit (DOT = Indicates Contents) PLN-530069844
...
5
Needle Spring-Low Speed PLN-530035293
...
6
Needle-Low Speed PLN-530035433
...
7
Needle Spring-High Speed PLN-530035295
...
8
Needle-High Speed PLN-530035388
...
xx
Carburetor Assembly - WT-639 PLN-530071639

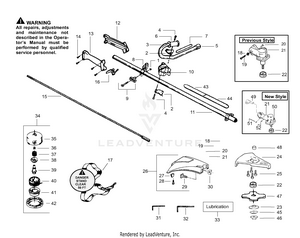

Handle, Driveshaft & Cutting Head

...
...
1
Nut PLN-530015768
...
2
Handlebar Bracket PLN-530094572
...
3
Handlebar PLN-530010723
...
4
Screw PLN-530015791
...
5
Handlebar Cap PLN-530092192
...
6
Handlebar Grip PLN-530092086
...
7
Handlebar Warning Decal PLN-530027884
...
8
Harness Clamp Ass'y. PLN-530094686
...
9
HANDLE KIT PLN-530069347
...
10
Handlebar Clamp PLN-530012207
...
12
Throttle Hsg. Left PLN-530036514
...
13
Throttle Hsg. Right PLN-530036515
...
14
Screw PLN-530015957
...
16
Throttle Lever PLN-530036556
...
17
Shoulder Strap PLN-530094417
...
18
Lockwasher PLN-530015328
...
19
Screw PLN-530016140
...
20
Screw-Pinch Clamp PLN-530015650
...
24
Metal Shield Kit PLN-530069780
...
25
Screw PLN-530016141
...
26
Shield Kit Ass'y. (Incl.27-30) PLN-530069779
...
27
Line Limiter PLN-530095387
...
28
Screw PLN-530015805
...
29
Bolt PLN-530015820
...
30
Nut PLN-530091373
...
31
Hex Wrench (5/32) PLN-530031159
...
32
Hex Wrench (3/16) PLN-530031098
...
33
Shaft Lubrication PLN-952030139
...
34
Accy--Cutting Head (Incl. 35-42) PLN-952711550
...
35
Hub PLN-530071295
...
36
Line Saver PLN-530093898
...
37
Spring PLN-530340007
...
38
Spring Adaptor PLN-530328929
...
39
Hub PLN-530071295
...
40
Spool w/Line PLN-952701589
...
41
Release Button PLN-530401183
...
42
Cover PLN-530092133
...
43
Decal-Warn.-Upper PLN-530029162
...
44
Decal-Warn.-Lower PLN-530038906
...
45
Washer-Belleville PLN-530016240
...
46
Nut PLN-530015793
...
47
4 Point Blade PLN-952701611
...
48
Seal Sleeve PLN-530019235
...
49
Bracket-Shield PLN-530095812
...
50
Screw PLN-530016312
...
51
Screw PLN-530016301
...
52
Screw PLN-530016309
...
xx
Operator Manual Not Shown PLN-530084421

Internal Assembly

...
...
1
STARTER SPRING PLN-545008010
...
2
Screw PLN-530015775
...
3
Retainer PLN-530027523
...
4
Screw PLN-530015934
...
5
Starter Handle PLN-530027569
...
6
SCREW PLN-530016386
...
7
Cylinder Gasket PLN-530019233
...
8
Spark Plug PLN-503235112
...
9
Gasket PLN-530035421
...
10
Retainer PLN-530015941
...
11
Lead Wire PLN-530014663
...
12
SWITCH, GROUND WIRE PLN-581425901
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Ignition Module PLN-530039163
...
15
Spacer PLN-530036145
...
16
Screw PLN-530015954
...
17
Washer PLN-530015149
...
18
Spacer PLN-530037705
...
19
Crankshaft Ass'y. PLN-530014864
...
20
Connecting Rod Ass'y. PLN-530069615
...
21
RING PISTON PLN-545154001
...
22
Crankcase Ass'y. PLN-530014861
...
23
Inner Bearing PLN-530032125
...
24
Outer Bearing PLN-530032124
...
25
C'case Seal PLN-530019179
...
26
Retaining Ring PLN-530015945
...
27
Muffler Body PLN-530036578
...
28
Muffler Cover PLN-530036577
...
29
Muffler Baffle-Exit PLN-530053500
...
30
Muffler Baffle-First PLN-530053499
...
31
Muffler Spring Old Style PLN-530016197
...
31
Muffler Spring New Style PLN-530042088
...
32
Shroud PLN-530049233
...
33
Gasket PLN-530019181
...
34
Cylinder PLN-530012416
...
35
Carb. Adaptor Kit PLN-530071250
...
36
Screw PLN-530015849
...
37
Gasket PLN-530019223
...
38
Carburetor Assembly - WT-639 (Incls. Limiter Caps) PLN-530071639
...
39
Air Box PLN-530037969
...
40
Choke Plate PLN-530037326
...
41
Choke Shutter PLN-530038102
...
42
Wave Washer PLN-530015254
...
43
Choke Spacer PLN-530015852
...
44
Screw PLN-530015849
...
45
Filter Plate PLN-530037413
...
46
Air Filter Foam PLN-530037331
...
47
Air Filter Cover PLN-530037292
...
48
Screw PLN-530015957
...
49
Throttle Cable Ass'y. PLN-530037415
...
50
Screw PLN-530015814
...
51
Isolator-Shroud PLN-530036793
...
52
Fuel Tank Ass'y. PLN-530049413
...
53
Fuel Line-Primer/Tank PLN-530069216
...
54
Fuel Line-Carb/Tank PLN-530069247
...
55
Fuel Cap Ass'y. PLN-530014347
...
56
Fuel Pickup Ass'y. New part number for this IPL PLN-530095646
...
57
Engine Gasket Kit (Incl. 7, 9, 33 & 37) PLN-530071253
...
58
C'case & C'shaft Ass'y. (Incl. 10,19,22-26) PLN-530071625
...
59
Switch Kit PLN-530069572
...
60
Screw PLN-530015953
...
61
Screw PLN-530015767
...
62
Locknut PLN-530015768
...
63
Fan Housing PLN-530049857
...
64
Rope Kit PLN-530069232
...
65
Screw PLN-530016080
...
66
STARTER PULLEY KIT PLN-530071786
...
67
Spark Arrestor Kit Old Style PLN-530069380
...
67
Spark Arrestor Kit New Style PLN-530071290
...
68
Piston Pin Retainer PLN-530015162
...
69
PISTON KIT (Incl. 21,68 & Pin) PLN-530071785
...
70
Muffler Kit Old Style (Incls. 27-31) PLN-530069989
...
70
Kit - Muffler (Incls. 27-31) PLN-530071390
...
71
Washer PLN-530015611
...
72
Clutch Ass'y. PLN-530069491
...
73
Washer PLN-530015828
...
74
Nut PLN-530626605
...
75
Clutch Hsg. PLN-530014923
...
76
Screw PLN-530015886
...
77
ISOLATOR New part number for this IPL PLN-545132401
...
78
Starter Spring PLN-530023817
...
79
Bulb Ass'y. PLN-530038874
...
80
Screw PLN-530015780
...
...
...
