Weed Eater 807-4 Electric Trimmer

Model: 807-4 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

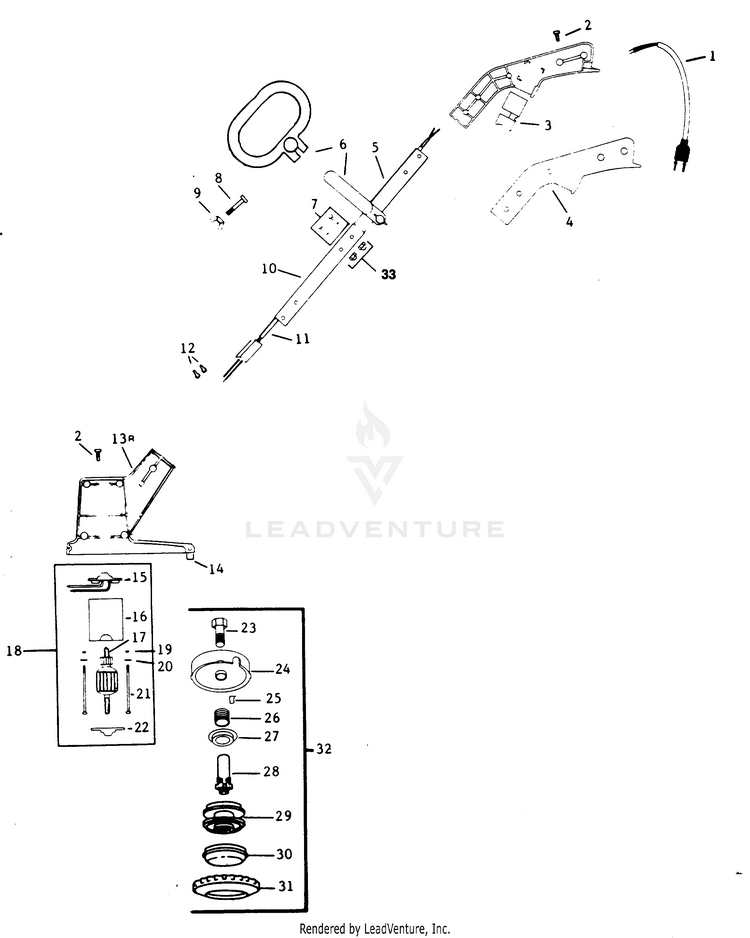

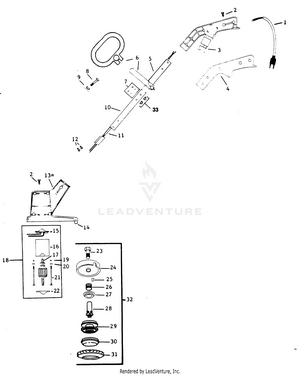

TRIMMER ASSEMBLY

...
...
1
POWER CORD PIGTAIL PLN-530090866
...
2
SCREW PLN-530090827
...
3
SWITCH PLN-530090824
...
4
TRIGGER HANDLE (SET ONLY) PLN-530093618
...
5
UPPER HANDLE TUBE PLN-530093186
...
6
ASSIST HANDLE PLN-530090884
...
7
SCREW PLN-530093201
...
8
BOLT PLN-530093617
...
9
WING NUT PLN-530092049
...
10
LOWER HANDLE TUBE PLN-530093737
...
11
WIRING HARNESS WITH RECTIFIER PLN-530092731
...
12
CONNECTOR PLN-530090876
...
13
MOTOR HOUSING (SET ONLY) PLN-530093754
...
14
TAIL INTERFERENCE BLADE PLN-530090874
...
15
END BELL w/BRUSHES AND SPRINGS PLN-530092714
...
16
FIELD ASSEMBLY PLN-530092715
...
17
ARMATURE PLN-530092716
...
18
MOTOR (COMPLETE) PLN-530092717
...
19
NUT PLN-530091333
...
20
LOCK WASHER PLN-530092718
...
21
SCREW PLN-530092719
...
22
END BELL, OUTPUT PLN-530092721
...
23
DRIVE ADAPTOR PLN-530092726
...
24
HUB w/LINE SAVERS PLN-530092673
...
25
LINE SAVER PLN-530092134
...
26
Spring PLN-530340007
...
27
Cap Spring PLN-530328929
...
28
DRIVE GEAR PLN-530092069
...
29
SPOOL, W/LINE PLN-702509
...
30
Tap Button PLN-530401183
...
31
COVER PLN-530092133
...
32
TAP-N-GO HEAD ASSEMBLY PLN-530092728
...
33
NUT, ACORN PLN-530093202
...
...
...
