Weed Eater 510 Electric Blower

Model: 510 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

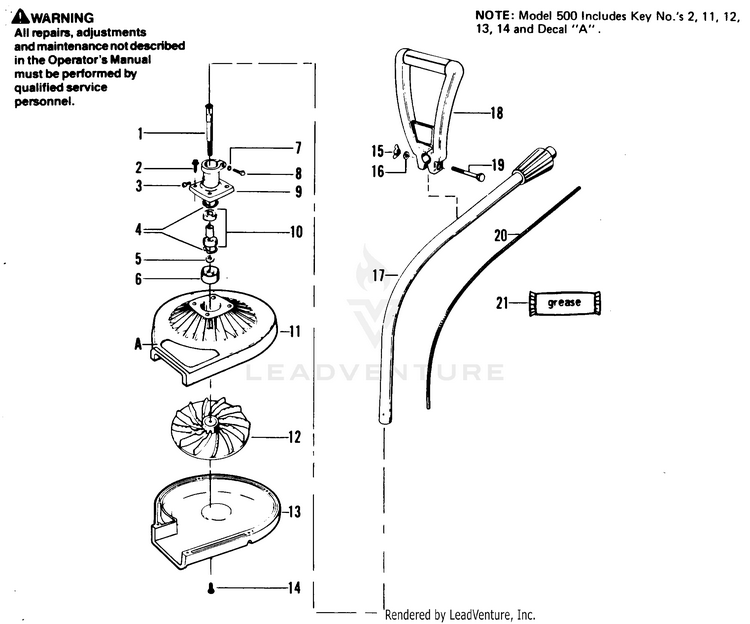

POWER BLOWER ATTACHMENT

...
...
1
Arbor Shaft PLN-530093846
...
2
Screw PLN-530016107
...
3
Screw - Tapping # 10-16-1/4 PLN-530015518
...
4
Retaining Ring PLN-530091783
...
5
Washer - Dust Cup PLN-530092216
...
6
Dust Cup PLN-530092359
...
7
Washer - 1/4 - 20 Interlock PLN-530092227
...
8
Screw - 1/4 - 20x 1 (Hex Head) PLN-530625509
...
9
Bearing Housing Ass'y (incl, #'s 1,4-8 & 10) PLN-530093214
...
10
Bearings and Spacer PLN-530069086
...
11
Housing - Upper Impeller PLN-530093159
...
12
Impeller PLN-530093162
...
13
Housing - Lower Impeller PLN-530093161
...
14
Screw-Line Limiter PLN-530015814
...
15
Wing Nut - "D" Handle PLN-530091373
...
16
Washer - "D" Handle PLN-530015149
...
17
Drive Shaft Ass'y (incl. # 20) PLN-530094528
...
18
"D" Handle PLN-530010722
...
19
Screw - "D" Handle PLN-530092061
...
20
Flexible Drive Shaft PLN-530093213
...
21
Shaft Lubrication PLN-952030139
...
0
Operator's Manual (not shown) PLN-530066954
...
A
Decal - Warning/Product PLN-530026445
...
0
Shaft Warning Decal PLN-530029159
...
...
...
