product name

Weed Eater 417 Electric Trimmer

Model: 417 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

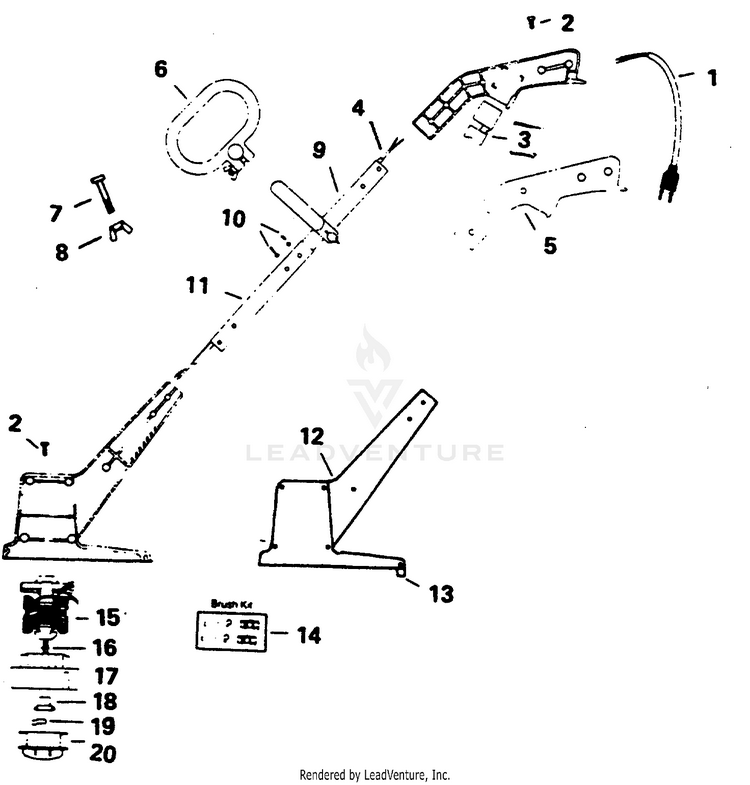

TRIMMER ASSEMBLY

...
...
1
POWER CORD PIGTAIL PLN-530090866
...
2
SCREW PLN-530090827
...
3
SWITCH PLN-530090824
...
4
HARNESS PLN-530090882
...
5
TRIGGER HANDLE SET PLN-530090883
...
6
ASSIST HANDLE PLN-530090884
...
7
BOLT PLN-530092051
...
8
WING NUT PLN-530092049
...
9
TUBE, UPPER PLN-530090885
...
10
TUBE FASTENER KIT PLN-530092626
...
11
TUBE, LOWER PLN-530090888
...
12
MOTOR HOUSING SET PLN-530092627
...
13
TAIL INTERFERENCE BLADE PLN-530090874
...
14
BRUSH KIT PLN-530090891
...
15
MOTOR PLN-530090892
...
16
WASHER-THRUST PLN-530090878
...
17
HUB w/LINE SAVERS PLN-530090894
...
18
HUB RETAINER PLN-530090877
...
19
LINE SAVERS PLN-530090895
...
20
SPOOL WOUND PLN-702503
...
...
...
