Weed Eater 2580 Electric Blower

Model: 2580 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

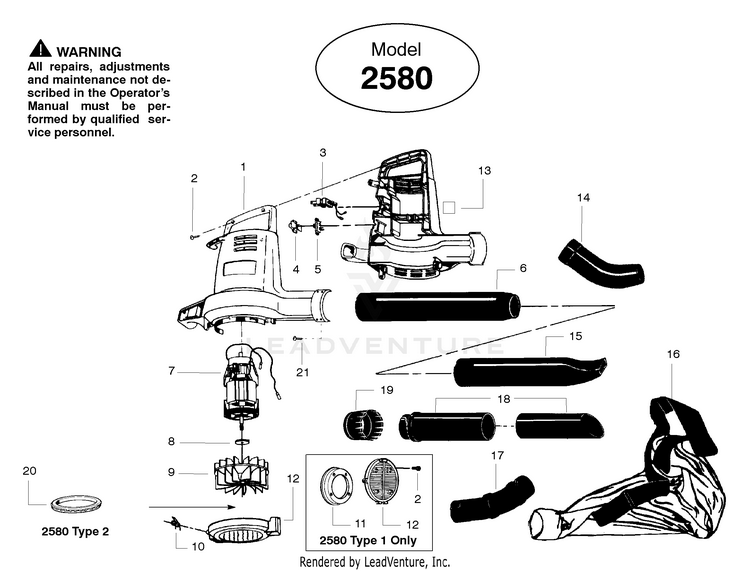

Electric Blower/Blower Assembly

...
...
1
Housing Set Type 1, 2, 3 PLN-530401342
...
1
Housing Set Type 4 PLN-530401839
...
2
Screw PLN-530016317
...
3
Wire Harness Type 1 & 2 (Incls. Switch) PLN-530401787
...
3
ASSY WIRE HARNESS (Incls. Switch) PLN-545124301
...
4
Switch Cover PLN-530401008
...
5
ASSY POWER CORD PLN-530400827
...
5
Switch Type 3 & 4 PLN-530401094
...
6
Blower Tube Type 1-3 PLN-530036434
...
6
Blower Tube Type 4 PLN-534352705
...
7
Motor Ass'y. 2580 Type 1 & 2 PLN-530400724
...
7
Motor Ass'y. 2580 Type 3 & 4 PLN-530401177
...
8
Washer PLN-530400897
...
9
Impeller PLN-530401097
...
10
Spring PLN-530351417
...
11
Inlet Baffle - Type 1 PLN-530400812
...
12
Assy-Cover Spring PLN-530403574
...
13
Pad PLN-530400089
...
14
Concentrator Nozzle Type 1, 2 & 3 PLN-530401100
...
14
Concentrator Nozzle Type 4 PLN-530401318
...
15
Nozzle Type 1-3 PLN-530094662
...
15
Nozzle Type 4 PLN-530053890
...
16
Vacuum Bag Kit Type 1, 2 & 3 PLN-530095114
...
16
Vacuum Bag Kit Type 4 PLN-530402533
...
17
Elbow (Type 1,2,3) PLN-530095118
...
18
Vacuum Tube Kit PLN-530069270
...
19
Funnel (Type 2) PLN-530401250
...
20
Inlet Orifice (Type 2) PLN-530401248
...
21
Screw (Type 4) PLN-530015994
...
xx
Operator Manual Not Shown PLN-530087937
...
xx
Warning Decal Not Shown PLN-530036444

Gutter Attachment Kit PN 952701696

...
...
10
Nozzle PLN-530094426
...
11
Elbow PLN-530094518
...
12
Extension Tube PLN-530094425
...
13
Pivot Tube PLN-530094424
...
14
Goggles PLN-952701645
...
15
Adapter For Electrics Only PLN-530351416
...
16
Adapter For Gas Units Only PLN-530094850
...
xx
Gutter Attachment Kit PLN-952701696
...
...
...
