product name

Weed Eater 180SB Twister Gas Blower

Model: 180SB Twister Gas Blower

Save
 Part Not Listed?Part Not Listed?
product name

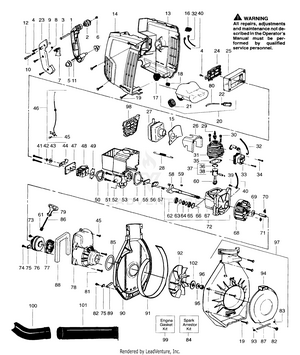

Blower Assembly

...
...
1
Handle Kit PLN-530069863
...
2
Isolator PLN-530026994
...
3
Spacer - Isolator PLN-530029111
...
4
Screw PLN-530015635
...
5
Isolator - Handle (Rear) PLN-530029130
...
6
Screw PLN-530015813
...
7
Trigger PLN-530029072
...
8
Spring - Lever Return PLN-530027597
...
9
"C" Clip - Throttle Lock PLN-530015702
...
10
Throttle Lock Button PLN-530029117
...
11
Pin - Handle PLN-530015840
...
12
Spring - Throttle PLN-530024772
...
13
Shroud - Left PLN-530052458
...
14
Shroud - Right PLN-530052457
...
15
Shield PLN-530058957
...
16
Switch Kit PLN-530069572
...
17
Isolator - Engine Mount PLN-530029129
...
18
Isolator Tank PLN-530029295
...
19
Screw PLN-530015814
...
20
Fuel Tank Ass'y Incl #21, 22 & 80 PLN-530014263
...
21
Fuel Cap Ass'y PLN-530014347
...
22
Assy-Fuel Pickup PLN-530095646
...
23
Handle Cover Ass'y Incl #9, 10 & 12 PLN-530014160
...
24
Cover - Filter PLN-530052456
...
25
Air Filter (Foam) PLN-530029112
...
26
Air Baffle PLN-530029404
...
27
Muffler Kit PLN-530069293
...
28
Spring - Muffler PLN-530029116
...
29
Spark Plug PLN-503235112
...
30
Screw PLN-530001624
...
31
Cylinder Kit PLN-530069626
...
32
Lead Wire (Switch) PLN-530029425
...
33
Ignition Module PLN-530039137
...
34
Screw PLN-530015816
...
35
GASKET CYL W/ ADHESIVE PLN-530019267
...
36
Piston Ring PLN-530025875
...
37
Piston Kit (Incl. 036,38,& Pin) PLN-530069349
...
38
Retainer PLN-530015162
...
39
Screw PLN-530015306
...
40
Ground Wire (Switch) PLN-530029426
...
41
Screw PLN-530015849
...
42
Washer PLN-530015254
...
43
Spacer - Choke PLN-530015852
...
44
Choke Shutter PLN-530029114
...
45
Screw PLN-530015775
...
46
Cable Assembly PLN-530037492
...
47
Plate - Air Filter Mtg PLN-530029115
...
48
KIT CARBURETOR ASSY Model WT 141A w/Limiter Cap PLN-545081825
...
49
Gasket - Carb PLN-530019164
...
50
Seal - Foam/Reed Block PLN-530019165
...
51
Screw PLN-530015771
...
52
Ground Wire (Static) PLN-530029113
...
53
Reed Block/Heat Shield PLN-530047696
...
54
Gasket - Reed Block/C'case PLN-530019166
...
55
Reed Valve PLN-530027593
...
56
Reed Stop PLN-530027594
...
57
SCREW 6-19X.437 PLN-545227101
...
58
Crankshaft Ass'y PLN-530047669
...
59
Flywheel Key PLN-530015126
...
60
Connecting Rod Ass'y PLN-530010960
...
61
Rope Kit PLN-530069232
...
62
Inner Bearing PLN-530032103
...
63
Retaining Ring PLN-530015787
...
64
Crankshaft Seal PLN-530019158
...
65
Outer Bearing PLN-530032102
...
66
Retaining Ring (Shaft) PLN-530015789
...
67
Crankcase Ass'y PLN-530014016
...
68
Flywheel Ass'y Incl item #70 PLN-530039189
...
69
Washer PLN-530016030
...
70
Spring - Starter Dog PLN-530023817
...
71
Spacer - Flywheel PLN-530038386
...
72
Crankcase/Crankshaft Assy Incl items #58 & 62-67 PLN-530047705
...
73
Screw PLN-530016080
...
74
Screw PLN-530015496
...
75
Retainer PLN-530027523
...
76
Starter Pulley Kit Incl item #73 PLN-530069486
...
77
STARTER SPRING PLN-545008010
...
78
Fan Housing Kit Incl items #61, 71, 73-77, 79 & 86 PLN-530069714
...
79
Starter Handle PLN-530027569
...
80
Line Kit PLN-530069247
...
81
Screw PLN-530015769
...
82
Screw PLN-530015815
...
83
Spring - Torsion (Left) PLN-530015672
...
84
Spark Arrestor Kit PLN-530069348
...
85
"O" Ring - Seal PLN-530019167
...
86
Eyelet - Flange PLN-530029182
...
87
Pin - Pivot PLN-530015647
...
88
Sponge - Air Dam PLN-530049185
...
89
Tube - Rope Retainer PLN-530029119
...
90
Blower Housing (Upper) PLN-530094710
...
91
Band - Blower Hsg PLN-530029173
...
92
ASSY-IMPELLER Incl Hub PLN-530047077
...
93
Spring - Torsion (Right) PLN-530015667
...
94
Inlet Door PLN-530047700
...
95
Washer - Conical PLN-530015441
...
96
Nut PLN-530001733
...
97
Blower Housing (Lower) Incl items #82, 83, 87, 93 & 94 PLN-530047736
...
98
Muffler Guard Kit PLN-530069692
...
99
Gasket Kit Incl items #35, 49, 50 & 54 PLN-530069294
...
100
Tube & Nozzle Kit PLN-530069961
...
101
BLOWER TUBE KIT PLN-530069684
...
102
Washer - Impeller PLN-530015818
...
xx
Operator's Manual PLN-530084755
...
xx
Decal - Door Instruction (Not a serviceable part) PLN-530047885
...
xx
Decal - Blower Warning PLN-530047876
...
xx
Hex Wrench (5/32) PLN-530031159

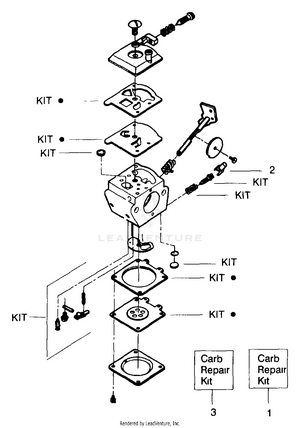

Carburetor Assembly

...
...
xx
KIT CARBURETOR ASSY PLN-545081825
...
1
Carburetor Repair Kit KIT Indicates Contents PLN-530069827
...
2
Limiter Cap PLN-530038403
...
3
Gasket/Diaphragm Kit Dot Indicates Contents PLN-530069844

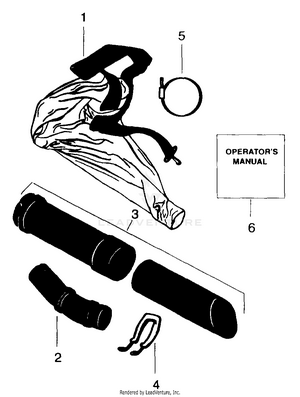

Vacuum Attachment Kit

...
...
xx
Vacuum Attachment Kit PLN-952701613
...
1
Vac Bag Assy PLN-530095115
...
2
Elbow - Vac Bag PLN-530094654
...
3
Vac Tube Ass'y. PLN-530069270
...
4
Handle - Rear PLN-530010850
...
5
Clamp - Intake Tube PLN-530094230
...
6
Operator Manual PLN-530082988
...
...
...
