product name

Troy-Bilt TB2BVEC 41BS2BVG766 Gas Blower

Model: TB2BVEC 41BS2BVG766

Save
 Part Not Listed?Part Not Listed?
product name

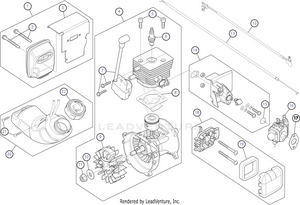

Engine Assembly

...
...
1
Muffler Assembly (Incl. 2 & 3) MTD-753-06027
...
2
Muffler Screws MTD-753-06294
...
3
Muffler Gasket MTD-753-05946
...
4
Shortblock Assembly (Incl. 5 - 11) MTD-753-06687
...
5
Screw MTD-710-04715
...
6
Spark Plug MTD-753-06847
...
7
Module Assembly MTD-753-06443
...
8
Cylinder Gasket MTD-753-06827
...
9
Flywheel Assembly MTD-753-06175
...
10
Washer MTD-736-04107
...
11
Nut MTD-712-04137
...
12
Lead Wire MTD-753-05949
...
13
Throttle Cable MTD-753-06690
...
14
Insulator Assembly (Incl. 15) MTD-753-06189
...
15
Insulator O-Ring MTD-753-06185
...
16
Carburetor Assembly (Incl. 17) MTD-753-08637
...
17
Carburetor Gasket MTD-753-06253
...
18
Air Cleaner Assembly (Incl. 19) MTD-753-08635
...
19
Air Filter MTD-791-181757
...
20
Fuel Tank Assembly (Incl. 21 & 22) MTD-753-06720
...
21
Screw MTD-710-04194
...
22
Fuel Cap MTD-791-182529

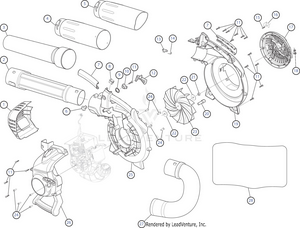

General Assembly

...
...
1
Muffler Cover Assembly (Incl. 11) MTD-753-06694
...
2
Upper Tube MTD-753-05936
...
3
Lower Tube MTD-753-05937
...
4
Upper Vac Tube MTD-753-06660
...
5
Lower Vac Tube MTD-791-180467
...
6
Outer Trigger Lock MTD-753-05932
...
7
Handle Grips MTD-753-05919
...
8
Switch MTD-791-182405
...
9
Wave Washer, .65 ID x .855 x .010 MTD-736-04353
...
10
Inner Trigger Lock MTD-753-05924
...
11
Screw MTD-710-04194
...
12
Throttle Trigger MTD-753-05930
...
13
Latch Tube MTD-753-05926
...
14
Latch Spring MTD-753-05939
...
15
Screw MTD-1755
...
16
Door Lock MTD-753-06696
...
17
Intake Cover MTD-753-06678
...
18
Spring MTD-753-05918
...
19
Impeller Housing MTD-753-06679
...
20
Adapter MTD-753-06700
...
21
Nut MTD-912-0237
...
22
Washer MTD-753-05928
...
23
Impeller MTD-753-05929
...
24
SCREW:10-32X.5 MTD-1964
...
25
Impeller Housing MTD-753-06693
...
26
Engine Cover Assembly (Incl. 11 & 24) MTD-753-06695
...
27
Elbow MTD-753-06658
...
28
Bag MTD-753-06659
...
...
...
