Troy-Bilt 490-241-0032 Snow Cab FLEX

Model: 490-241-0032 Snow Cab

Save
 Part Not Listed?Part Not Listed?
product name

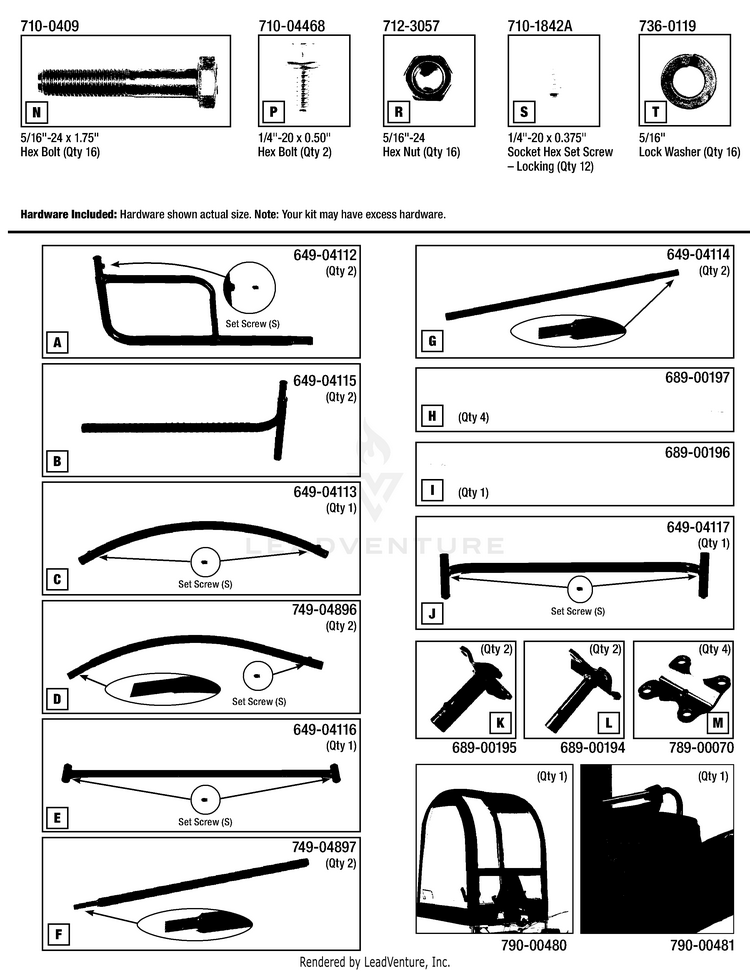

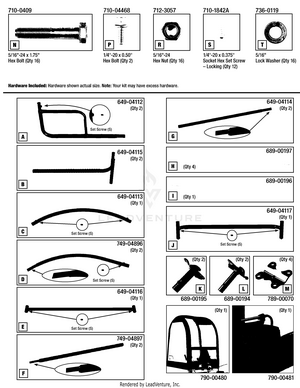

General Assembly

...
...
A
REAR CORNER BAR MTD-649-04112
...
B
BAR-FRONT CORNER MTD-649-04115
...
C
ARC CENTER BAR MTD-649-04113
...
D
ARC END BAR LH & RH MTD-749-04896
...
E
CROSSBAR POLE MTD-649-04116
...
F
POLE-UPRIGHT FRONT MTD-749-04897
...
G
POLE-UPRIGHT REAR MTD-649-04114
...
H
FEXIBLE ROD MTD-689-00197
...
I
FLEXIBLE ROD-CENTE MTD-689-00196
...
J
MOUNTING BAR MTD-649-04117
...
K
TUBE/CLAMP ASM-FEM MTD-689-00195
...
L
TUBE/CLAMP ASM-MAL MTD-689-00194
...
M
CLAMP PLATE (POWDER BLACK) MTD-789-00070-0637
...
N
SCREW-HEX 5/16-24 MTD-710-0409
...
P
SCREW 1/4-20 x .50 GR5 MTD-710-04468
...
R
NUT-5/16X 24 MTD-912-3057
...
S
SCREW-SET PATCH LOC 1/4-20 X .38 MTD-710-1842A
...
T
WASHER-LOCK 5/16 MTD-936-0119
...
xx
COVER, SNOW CAB MTD-790-00480
...
xx
POUCH, SNOW CAB MTD-790-00481
...
...
...
