Troy-Bilt 41056 Pressure Washer

Model: 41056 Pressure Washer

Save
 Part Not Listed?Part Not Listed?
product name

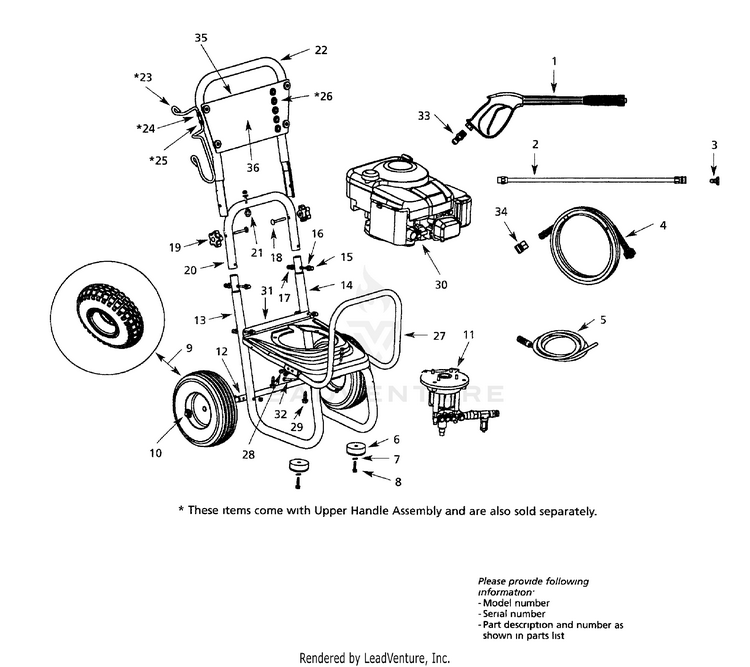

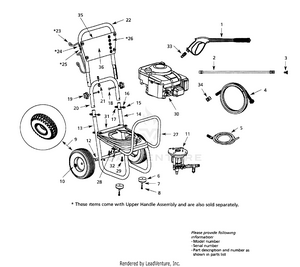

General Assembly

...
...
1
Gun MTD-1917783
...
2
Lance MTD-1917785
...
3
#3.0 Spray tip - 0 degree MTD-1917786
...
xx
#3.0 Spray tip - 15 degree MTD-1917787
...
xx
#3.0 Spray tip - 25 degree MTD-1917788
...
xx
#3.0 Spray tip - 40 degree MTD-1917789
...
xx
Detergent spray tip MTD-1917790
...
4
Hose MTD-1917784
...
5
Chemical filter and hose MTD-1917823
...
6
Rubber Bumper MTD-1917795
...
7
Flat Washer, .385 x .62 x .063 MTD-736-0140
...
8
1/4-20 X 1-1/4 self-tapping screw MTD-1917819
...
9
Wheel, Knobby tread MTD-1918184
...
xx
Wheel, saw tooth tread MTD-1917797
...
10
PUSH CAP MTD-726-0214
...
11
Pump assembly MTD-1917808
...
12
Axle MTD-1917796
...
13
Left leg MTD-1917793
...
14
Right leg MTD-1917794
...
15
Bolt 1/4-20 x 1-3/4" MTD-1917814
...
16
1/4" flat washer MTD-1917816
...
17
1/4-20 elastic stop nut MTD-1917818
...
18
Carriage Bolt 5/16-18 x 2.5" MTD-710-0572
...
19
Star knob MTD-1917812
...
20
Lower Handle MTD-1917799
...
21
Pull cord eyelet MTD-1918090
...
22
Upper handle assembly MTD-1917801
...
23
Gun/hose rack Comes with upper handle assembly 1917801 and is also sold separately. MTD-1917802
...
24
10-24 X 1-3/4 socket head bolt Comes with upper handle assembly 1917801 and is also sold separately. MTD-1917803
...
25
10-24 elastic stop nuts Comes with upper handle assembly 1917801 and is also sold separately. MTD-1917804
...
26
Rubber grommet Comes with upper handle assembly 1917801 and is also sold separately. MTD-1917791
...
27
Engine Guard MTD-1917800
...
28
1/4-20 X 3/4 self-tapping screw MTD-1917817
...
29
Engine mtg. screw, 3/8-16 x 1-1/4 MTD-1917807
...
30
6Hp Briggs & Stratton engine - Intek MTD-1917805
...
31
Baseplate MTD-1917792
...
32
1/4-20 x 2-1/4" Axle bolt MTD-1917813
...
33
Gun quick connect fitting MTD-1917809
...
34
Hose quick connect fitting MTD-1917810
...
35
Caution/warning decal MTD-DK625901AV
...
36
Placard/performance decal MTD-DK625902AV
...
xx
Shaft key - 3/16" x 3/16" x 1-1/2" Not shown MTD-1917806
...
xx
Owner's manual Not shown MTD-1918287
...
xx
Operating checklist Not shown MTD-1918294
...
...
...
