product name

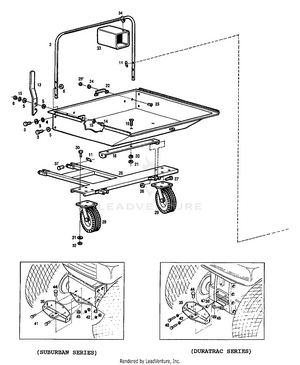

Troy-Bilt 30921R Cart/Grass Collector Tractor

Model: 30921R CART/GRASS COLLECTOR

Save
 Part Not Listed?Part Not Listed?
product name

CART/GRASS COLLECTOR

...
...
?1
BOX MTD-1823038
...
2
TUBE-SUPPORT MTD-1823039
...
3
SCREW 5/16-18 x 1.5 LG COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-710-0805A
...
4
SPACER MTD-1823040
...
5
FLAT WASHER COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-736-0275
...
6
NUT-TOP/LK 5/16-18 ZP COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-1732499
...
?7
COVER MTD-1823041
...
?8
ROD-SUPPORT MTD-1823042
...
?9
ROD-FRAME MTD-1823043
...
?10
ROD-BRAKE MTD-1723044
...
11
Pin-Internal Cotte MTD-714-3020
...
?12
STRAP MTD-1823046
...
13
HANDLE-LATCH MTD-1823047
...
14
Hex Screw, 5/16-18 x 1.00 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-710-0376
...
15
WASHER COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-1705905
...
18
AXLE MTD-1723048
...
19
SCR-5/16-18X1.00 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-1734214
...
20
LOCK WASHER 5/16 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-936-0119
...
21
HEX NUT 5/16-18 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-712-3010
...
22
HANDLE-LIFT MTD-1823049
...
23
SCR 1/4-20X.5 TRUSS HD COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-1185894
...
24
Lock Washer COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-936-0329
...
25
NUT-HEX 1/4-20 ZP COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-1186229
...
26
FRAME MTD-1823050
...
27
SCREW 1/2-13 x 1.25 GR5 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-710-3032
...
28
Hex Lock Nut, 1/2-13 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-712-3022
...
29
WHEEL MTD-1823051
...
30
SCREW 3/8-16 x 1 GR5 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-710-0514
...
31
Washer, Plain (flat) 3/8, S.A.E. COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-736-3050
...
32
Hex Lock Nut, 3/8-16 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-712-3000
...
33
SLEEVE MTD-1823052
...
34
ASSM-SLEEVE CLAMP MTD-1823053
...
35
PLATE-MOUNTING GRASSBAG MTD-1755902
...
37
PIN-CLEVIS .5X1.25 MTD-1730851
...
39
SPACER-.75X.531X.89 MTD-1730682
...
40
SCR-HH 1/2-13X1.75 G5 ZP COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-1100065
...
41
Hex Cap Screw, 1/2-13 x 1 (Grade 5) COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-710-3131
...
42
Lock Washer, 1/2 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-736-0921
...
43
HEX NUT COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-712-0206
...
44
SCR COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-1756356
...
45
NUT-H/LK 3/4-10 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-1120390
...
?46
DECAL-LOGO MTD-1757349
...
?48
DECAL-WEIGHT MTD-1823055
...
...
...
