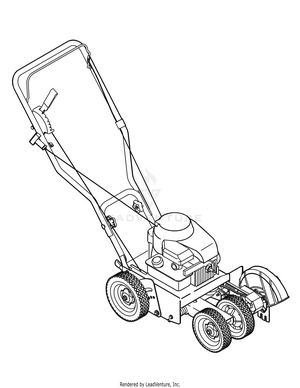

Troy-Bilt 25B-554D766 (2006) Edger

Model: 25B-554D766 (2006)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-BA-698369
...
xx
23" CONTROL CABLE MTD-946-04035
...
xx
WHEEL ADJUSTMENT CABLE MTD-946-04036
...
xx
LEVER DEPTH MTD-781-0742-0637
...
xx
Flywheel Pulley MTD-756-1150A
...
xx
Drive Belt MTD-954-04032B
...
xx
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
xx
Blade MTD-781-0748
...
xx
STAR KNOB 5/16-18 MTD-720-04072A
...
xx
Curb Height Adjustment MTD-687-02022
...
xx
Wheels - Front MTD-734-1264
...
xx
Wheels - Rear MTD-734-1268

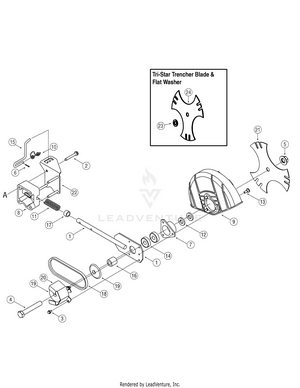

Blade

...
...
1
Blade Plate Assembly MTD-687-02126
...
2
SCREW MTD-710-04389
...
3
Self-tapping Screw, 1/4-20 MTD-710-0599
...
4
Hex Screw, 5/8-18 MTD-710-1143A
...
5
HEX NUT MTD-712-0417A
...
6
Clevis Pin 3/32 x .625 MTD-714-3010
...
7
Bearing Cup MTD-718-04012
...
8
Bearing Block MTD-931-04207
...
9
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
10
Double Torsion Spring MTD-732-0188A
...
11
Compression Spring MTD-932-04169
...
12
Flat Washer .635 x 1.24 x .181 MTD-736-04088
...
13
Screw MTD-738-0706D
...
14
Bearing, Ball, .625 x 40 x 12 MTD-941-0524A
...
15
Blade Adjustment Rod MTD-747-04110A
...
16
Spacer, .63 x 1.12 x 1.06 MTD-950-04105
...
17
Spacer, .64 x.88 x .50 MTD-750-0547
...
18
Drive Belt MTD-954-04032B
...
19
Sheave MTD-956-0449
...
20
Belt Guard MTD-781-0427-0637
...
21
Tri-star Blade MTD-781-0748
...
22
Cover Plate MTD-787-01081A
...
23
Flat Washer MTD-736-04088
...
24
Tri-Star Blade (Trencher) MTD-781-0748

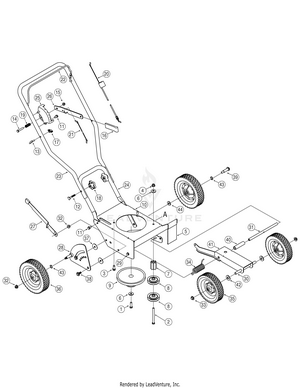

General Assembly

...
...
1
Screw 3/8-24 MTD-710-0191
...
2
Screw 3/8-16 MTD-710-0411
...
3
Screw, 3/8-16 MTD-710-0654A
...
4
Flange Lock Nut, 3/8-16 MTD-712-04065
...
5
Debris Guard MTD-731-05063
...
6
Bell Washer, .396 x 1.140 MTD-736-0452
...
7
MOUNT SPACER MTD-950-04142
...
8
Flat Idler Pulley, 2.5 MTD-756-04148
...
9
Combination Flywheel MTD-756-1150A
...
10
Frame MTD-787-01304
...
11
Hex Screw, 5/16-12 MTD-710-0726
...
12
Carriage Bolt, 5/16-18 MTD-710-1174
...
13
Rope Guide (Eye Bolt) MTD-710-1205
...
14
Hex Screw, 5/16-18 MTD-710-3180
...
15
Lock Flange Nut, 5/16-18 MTD-712-04063
...
16
Grip MTD-720-0142
...
17
Wing Nut MTD-720-0279
...
18
STAR KNOB 5/16-18 MTD-720-04072A
...
19
SPRING MTD-932-0369
...
20
23" CONTROL CABLE MTD-946-04035
...
21
WHEEL ADJUSTMENT CABLE MTD-946-04036
...
22
BLADE CONTROL BAIL MTD-747-0976B
...
23
UPPER HANDLE MTD-749-04183A
...
24
Lower Handle MTD-749-04234
...
25
Depth Index Bracket MTD-781-0741A
...
26
LEVER DEPTH MTD-781-0742-0637
...
27
Curb Height Adjustment MTD-687-02022
...
28
Curb Height Adjuster Plate MTD-687-02125A
...
29
Hex Screw 5/16-18 MTD-710-0870
...
30
Axle Shaft .50 x 6.65 MTD-711-04361
...
31
Frame Spacer .50 x 9.25 MTD-711-04440
...
32
Flange Nut 3/8-16 MTD-712-04065
...
33
Push Cap 1/2" rod MTD-726-0299
...
34
Torsion Spring MTD-732-04045
...
35
Wheel 7x1.8 MTD-734-1264
...
36
Wheel 8x1.8 MTD-734-1268
...
37
Flat Washer, .385 x 1.5 x .075 MTD-736-0234
...
38
Shoulder Screw, 3/8-16 MTD-738-04149
...
39
Shoulder Screw, 3/8-16 MTD-738-0929
...
40
Spacer MTD-750-04129
...
41
Dual Wheel Bracket MTD-787-01239
...
42
Flat Washer 1/2 x 1.25 x .10 MTD-736-0179
...
43
Wave Washer .531 x .781 x .013 MTD-736-0232
...
44
Flat Washer .385 x 1.0 x .135 MTD-736-0258
...
...
...
