product name

Troy-Bilt 258 PTO LOG SPLITTER OEM-290-258 290-258-081

Model: 258 PTO SPLITTER, OEM-290-258, 290-258-081

Save
 Part Not Listed?Part Not Listed?
product name

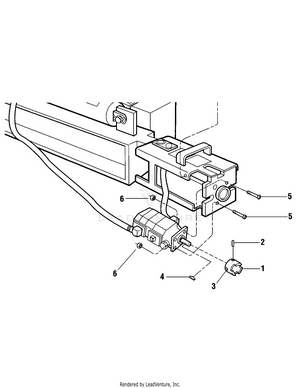

Clutch

...
...
1
Clutch (Includes Ref. 2 & 3) MTD-1915138
...
2
Set Screw-Clutch Assembly MTD-1915139
...
3
Spiral Pin-Clutch Assembly MTD-1915140
...
4
Hi Pro Key-Clutch Assembly MTD-1915141
...
5
5/16"-18 x 1" Cap Screw MTD-1915185
...
6
Hex Nut 5/16" - 18 MTD-1915186

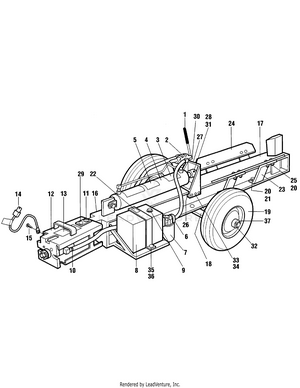

General Assembly

...
...
1
Valve Handle MTD-1915152
...
2
Valve MTD-1915151
...
3
Label In/Out Valve MTD-1915148
...
4
Cylinder 3-1/2" TMC MTD-1915150
...
5
Decal Caution 5"x 10" MTD-1915147
...
6
Filter Housing MTD-1915132
...
7
Filter Element MTD-1915133
...
8
Plastic Tank MTD-1915161
...
9
Plastic Plug 3/4" P68B MTD-1915128
...
10
HOSE CLAMP-5/8 MTD-726-0132
...
11
Hitch Pivot Pin MTD-1915165
...
12
Swivel Hitch Weldment MTD-1915169
...
13
Decal Caution MTD-1915146
...
14
Forward Interlock Wire MTD-1915189
...
15
Screw # 10-24 x 1" MTD-1915137
...
16
Serial Number Label MTD-1915156
...
17
Rail Weldment MTD-1915167
...
18
Axle Weldment MTD-1915168
...
19
Tire Assembly 480/400 x 8 MTD-1915162
...
20
Lock Nut 3/8" - 16 MTD-1915136
...
21
HH Bolt 3/8" - 16 x 1-1/4" MTD-1915135
...
22
Decal/Hydraulic Fluid MTD-1915179
...
23
Log Cradle Mount Brkt MTD-1915178
...
24
Log Cradle Bar MTD-1915177
...
25
Saddle Washer MTD-710-0431
...
26
Slide Angle 1.5 x 1.5x5 MTD-1915164
...
27
Slide Weldment MTD-1915170
...
28
Slide Pin MTD-1915143
...
29
5/16"-18 x 1" HH Bolt MTD-1915187
...
30
Connecting Link MTD-1915192
...
31
Hair Pin Clip MTD-1915173
...
32
Cotter Key MTD-1915191
...
33
HH Bolt 3/8"-16 x 1-1/4" MTD-1915135
...
34
Hex Nut 3/8"-16 MTD-1915176
...
35
HH Bolt 1/4"-20 x 1" MTD-1915180
...
36
Hex Nut 1/4"-20 MTD-1915181
...
37
Thrust Washer MTD-1915190

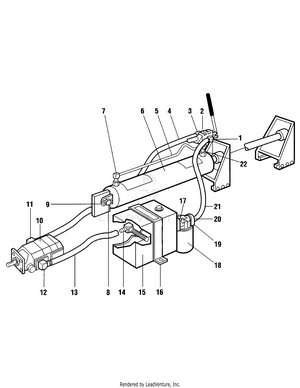

Hydraulics

...
...
1
Fitting 90 deg. hose barb MTD-1915124
...
2
Valve MTD-1915151
...
3
Fitting 90 deg. Male MTD-1915127
...
4
HP Hose MTD-1915157
...
5
Formed Tubing 21-1/16" MTD-1915153
...
6
Cyliner 3-1/2" TMC MTD-1915150
...
7
Fitting 90 deg. male MTD-1915149
...
8
Clevis Pin for cylinder MTD-1915163
...
9
Clevis Pin Clip for cyl. MTD-1915142
...
10
Barnes 11 GPM Pump MTD-1915144
...
11
Fitting 90 deg. Female MTD-1915126
...
12
Fitting 90 deg. Beaded hose barb MTD-1915123
...
13
LP Hose 3/4" ID x 25" (connects pump to tank) MTD-1915158
...
14
Strainer & hose barb MTD-1915125
...
15
Plastic Tank MTD-1915161
...
16
Tank Strap MTD-1915166
...
17
Pipe blk Nipple 3/4 x 2 MTD-1915130
...
18
Filter Element MTD-1915133
...
19
Filter Housing MTD-1915132
...
20
Fitting beaded hose barb MTD-1915129
...
21
LP Hose 3/4" ID x 17" MTD-1915159
...
22
Straight Male Connector MTD-1915131
...
...
...
