product name

Troy-Bilt 14111 Electric Lift Kit Tractor

Model: 14111 ELECTRIC LIFT KIT

Save
 Part Not Listed?Part Not Listed?
product name

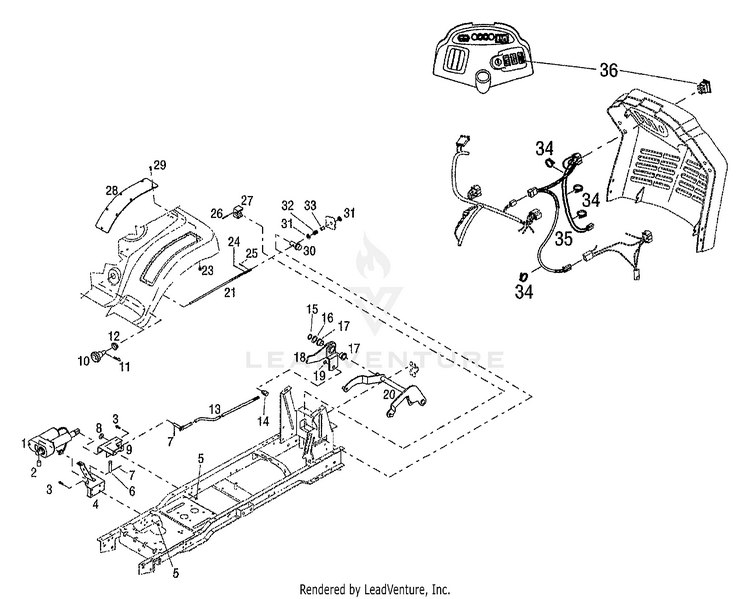

ELECTRIC LIFT KIT

...
...
1
ACTUATOR MTD-1771678
...
2
SPACER MTD-1771694
...
3
SCR-HHC 5/16-18X.75 GR 5 ZP MTD-1100044
...
4
SUPPORT-FRONT MTD-1770688001
...
5
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
6
PIN-CLEVIS .5X2.75 MTD-1706621
...
7
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
8
Flat Washer,.510 x 1.00 MTD-736-0326
...
9
SUPPORT-REAR MTD-1771799001
...
10
KNOB-HEIGHT ADJUST MTD-1765485
...
11
PIN-HITCH MTD-1817091
...
12
GROMMET-SNAP BUSHING MTD-1766346
...
13
ROD-LIFT MTD-1772978
...
14
BLOCK-PIVOT MTD-1770696
...
15
RING-HEAVY EXT HD 1.0 ID MTD-1185689
...
16
WASHER-SPEC MTD-1185816
...
17
N/A MTD-NA
...
18
ASSM-PIVOT ARM MTD-1773025
...
19
RETAINING E-RING MTD-1777567
...
20
ASSM-LIFT MTD-1772970001
...
21
SCR-HEIGHT ADJUST MTD-1773133
...
23
Hex Lock Nut MTD-712-0324
...
24
Cotter Pin MTD-714-0474
...
25
Roll Pin MTD-915-0249
...
26
PIN-DRIVE MTD-1185376
...
27
COLLAR-HEIGHT ADJUST MTD-1766259
...
28
COVER MTD-1773064
...
29
SCREW 1/4-20 X .625 MTD-710-0946
...
30
BLOCK-HEIGHT ADJUST MTD-1766257
...
31
SPACER MTD-1738490
...
32
SPRING-COMPRESSION MTD-1721492
...
33
BUSHING-.5X.21 NYLON FLNG MTD-1715716
...
34
7" CABLE TIE MTD-725-0157
...
35
HARNESS-ACTUATOR MTD-1771681
...
36
SWITCH-ROCKER MTD-1771668
...
...
...
