product name

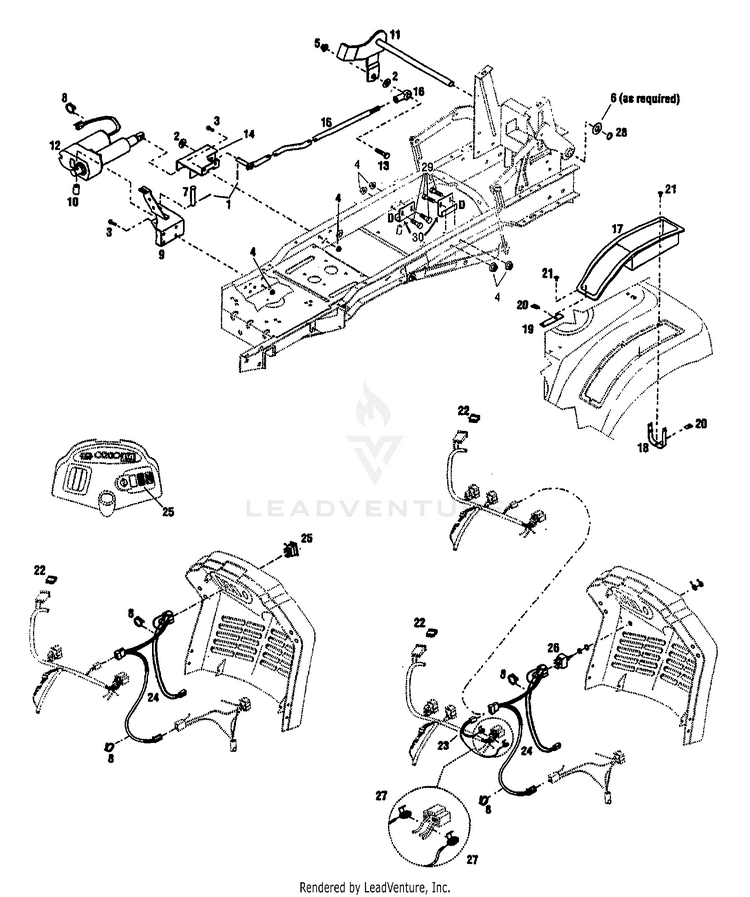

Troy-Bilt 14105 Electric Lift Kit Tractor

Model: 14105 ELECTRIC LIFT KIT

Save
 Part Not Listed?Part Not Listed?
product name

ELECTRIC LIFT KIT

...
...
1
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
2
Flat Washer,.510 x 1.00 MTD-736-0326
...
3
SCREW 5/16-18 MTD-710-04043
...
4
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
5
Hex Lock Nut, 1/2-13 MTD-712-3022
...
6
WASHER-1.25X.765X.049 MTD-1701447
...
7
PIN-CLEVIS .5X2.75 MTD-1706621
...
8
7" CABLE TIE MTD-725-0157
...
9
SUPPORT-FRONT MTD-1770688001
...
10
SPACER MTD-1770694
...
11
PIVOT LIFT ARM ASSY. MTD-1771674
...
12
ACTUATOR MTD-1771678
...
13
SCR-SPECIAL 1/2-13X1 1/2 MTD-1771784
...
14
SUPPORT-REAR MTD-1771799001
...
15
ROD-LIFT MTD-1771802
...
16
ROD-END MTD-1771814
...
17
UTILITY BOX MTD-1771873
...
18
RETAINER-UTILITY BOX MTD-1772088
...
19
RETAINER-UTILITY BOX MTD-1772156
...
20
SPEED NUT-1/4-20 MTD-1772157
...
21
SCR-1/4-20X5/8 MTD-1772164
...
22
Fuse, 30 Amp MTD-725-1543
...
23
ADAPTER HARNESS MTD-1771843
...
24
HARNESS-ACTUATOR MTD-1771681
...
25
SWITCH-ROCKER MTD-1771668
...
26
SWITCH-TOGGLE MTD-1771813
...
27
CONNECTOR MTD-1721038
...
28
RETAINING RING MTD-NA
...
29
SCR-HHC 5/16-18X.75 GR 5 ZP MTD-1100044
...
30
STOP-MOWER DECK MTD-1766086001
...
xx
ELEC. LIFT KIT MTD-1771836
...
...
...
