Troy-Bilt 14102-01 Hydraulic Kit Tractor

Model: 14102-01 Hydraulic Kit

Save
 Part Not Listed?Part Not Listed?
product name

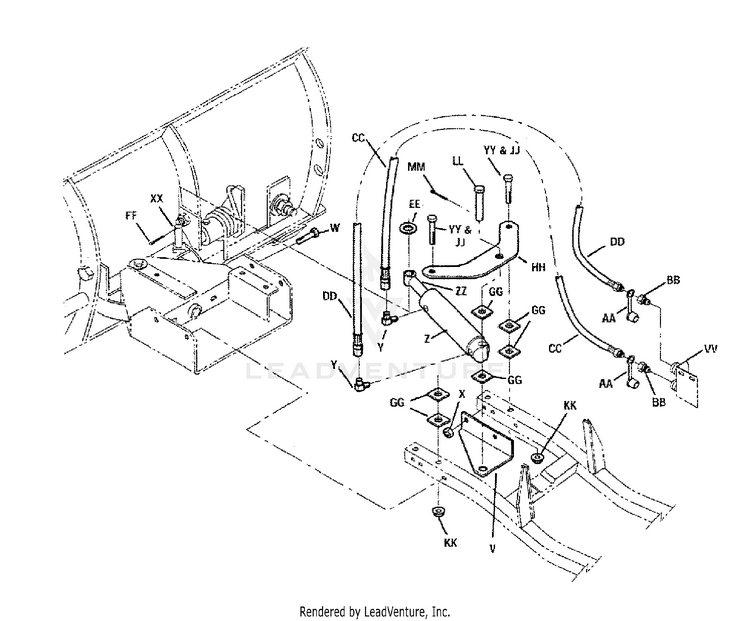

Hydraulic Angling Kit

...
...
V
Bottom Bracket - Cylinder Mounting MTD-1773260001
...
W
Hex hd. Screw, 5/16-18 x 2-1/2 MTD-1100062
...
X
Hex Lock Nut, 3/8-16 MTD-712-3000
...
Y
90° Elbow MTD-1717624
...
Z
Hydraulic Cylinder Assembly MTD-1724520001
...
AA
Dust Cap MTD-1720732
...
BB
Hydraulic Coupling MTD-1863869
...
CC
Hydraulic Hose MTD-1717625
...
DD
Hydraulic Hose MTD-1717625
...
EE
Washer, 3/4 MTD-1107387
...
FF
Cotter Pin, 1/4 x 1-1/2 MTD-1104231
...
GG
Spacer Plate MTD-1773261
...
HH
Top Bracket - Cylinder Mounting MTD-1773259001
...
JJ
SCREW-HEX 1/2-13 X 3.00 MTD-710-0182A
...
KK
Flange Lock Nut, 1/2-13 MTD-1186398
...
LL
Clevis Pin, 3/4 MTD-1773414
...
MM
Cotter Pin, 1-1/4 x 1-1/4 MTD-1100351
...
VV
UNKNOWN MTD-NA
...
XX
UNKNOWN MTD-NA
...
YY
UNKNOWN MTD-NA
...
ZZ
UNKNOWN MTD-NA
...
...
...
