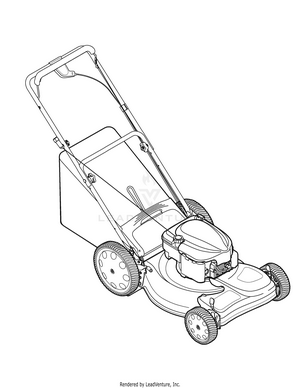

Troy-Bilt 12AV556D766 (2006) Self Propelled Mower

Model: 12AV556D766 (2006)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-BS-298090S
...
xx
Control Cable MTD-946-0957
...
xx
Variable Speed Cable MTD-946-04206A
...
xx
Choke Cable MTD-NA
...
xx
Drive Belt MTD-954-0637A
...
xx
Blade Adapter w/ Pulley MTD-948-04015A
...
xx
Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1257
...
xx
Wheel 8 x 2.125 MTD-734-04018C
...
xx
REAR WHEEL12X2.1 MTD-734-04019
...
xx
Hub Cap MTD-NA
...
xx
Trailshield MTD-731-04998
...
xx
Grass Bag Door MTD-753-06366
...
xx
Mulch Plug MTD-NA
...
xx
Grass Bag MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A

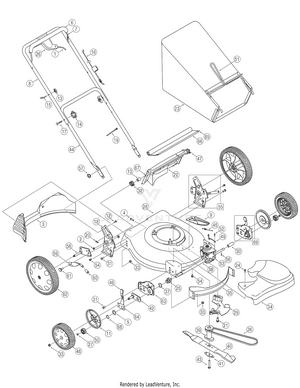

General Assembly

...
...
1
Variable Speed Cable MTD-946-04206A
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
Rear Baffle 21" Rd. MTD-731-04150C
...
4
Screw 1/4-15 MTD-710-04371
...
5
Flat Washer MTD-736-0474
...
6
Deluxe Bail Cover MTD-731-04204
...
7
Blade Control MTD-747-1161A
...
8
Upper Handle MTD-749-04206
...
9
Cable Mount Bracket MTD-787-01258A
...
10
Mounting Cable Cap MTD-753-0833
...
11
Wheel Dust Cap MTD-782-7551A
...
12
Carriage Bolt 1/4-20 MTD-710-0703
...
13
Spacer.375 x.50 x 1.02 MTD-950-04162
...
14
STAR KNOB 5/16-18 MTD-720-04072A
...
15
Eye Bolt MTD-710-1205
...
16
Control Cable MTD-946-0957
...
17
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
18
Handle Bracket - RH MTD-687-02192
...
18
Handle Bracket - LH MTD-687-02191
...
19
7" CABLE TIE MTD-725-0157
...
20
Cotter Pin MTD-714-0104
...
21
Self-Tapping Sems Screw MTD-710-0654A
...
22
Grass Bag Door MTD-753-06366
...
23
Grass Bag MTD-964-04007A
...
24
Shoulder Screw # 12 -24 MTD-710-1650
...
25
Bearing Assembly MTD-982-0015
...
26
Speed Control Assembly MTD-753-0833
...
26
ENGAGEMENT LEVER MTD-731-05873A
...
27
Screw 1/4-20 x .390 MTD-710-04531
...
28
21" Deck SS SP MTD-787-01277
...
29
Belt Keeper Bracket MTD-787-01265A-0637
...
30
Slev. Spacer 1.8" Lg. MTD-750-04405
...
31
Hex Screw, 3/8-16 x.75 MTD-710-0216
...
32
Torsion Spring - RH MTD-732-04090A
...
33
Flange Lock Nut, 3/8-16 MTD-712-04065
...
34
Transmission Cover (Black) MTD-931-05020A
...
35
FRONT BAFFLE MTD-782P5002B
...
36
Drive Belt MTD-954-0637A
...
37
Wave Washer MTD-736-0447
...
38
Sleeve Spacer 9.10" Lg. MTD-750-04404
...
39
Blade Adapter w/ Pulley MTD-948-04015A
...
40
Blade MTD-942-0741A
...
41
BLADE BELL SUPPORT MTD-736-0524B-1
...
42
Pivot Plate Assembly MTD-687-02044
...
43
Hex Screw 3/8-24 x 2.50 MTD-710-1257
...
44
Lower Handle MTD-749-0928A-0637
...
45
Extension Spring MTD-732-04317
...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
47
Torsion Spring - LH MTD-732-04089A
...
48
Wheel 8 x 2.125 MTD-734-04018C
...
49
Belt Keeper Wire MTD-732-04294
...
50
Gear 14T RH FWD MTD-717-1762
...
50
Gear 14T LH FWD MTD-717-1761
...
51
Grass Bag Frame MTD-747-04080A
...
52
Torx Screw MTD-710-04329
...
53
Transmission Ass’y Com plete MTD-918-04377B
...
54
TT Scr. w/Washer 1/4-20 x.625 MTD-710-1652
...
55
Handle Bracket Assembly - LH MTD-687-02057
...
55
Handle Bracket Assembly - RH MTD-687-02056
...
56
Dowel Pin MTD-915-0221
...
57
WING NUT MTD-712-0397A
...
58
Pivot Bar RH MTD-987-02335
...
58
Pivot Bar LH MTD-987-02336
...
59
Rear Spring Lever MTD-732-0866
...
60
Foam Grip MTD-720-0312
...
61
Shoulder Scr.500 Dia. x.434 MTD-738-0507B
...
62
REAR WHEEL12X2.1 MTD-734-04019
...
63
Height Adjuster Plate - RH MTD-787-01298A-0637
...
63
Height Adjuster Plate - LH MTD-787-01299A-0637
...
64
Front Lever - RH MTD-732-0706
...
64
Front Lever - LH MTD-732-0707
...
65
TRAILSHIELD WIRE MTD-732P0700
...
66
Rear Trailing Shield MTD-731-04998
...
67
Pivot Rod MTD-747-0996
...
68
Snap Ring MTD-716-0102
...
69
Height Adjustment Ass’y - LH MTD-987-02193A
...
69
Height Adjustment Assembly RH MTD-987-02194A
...
...
...
