Tecumseh SBH-SBH-8208 4-Cycle Short Blocks Horizontal

Model: SBH-SBH-8208

Save
 Part Not Listed?Part Not Listed?
product name

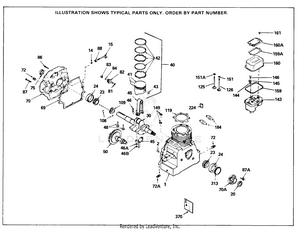

Engine Parts List

...
...
1
CYLINDER TPC-33823A
...
2
PIN TPC-27652
...
14
RET RING TPC-29193
...
15
GOVERNOR ROD--NLA TPC-32425
...
20
OIL SEAL TPC-31950
...
23
BEARING TPC-31932
...
24
BEARING CUP TPC-31928
...
30
CRANKSHAFT TPC-33397A
...
40
PISTON ASSY 010 TPC-34509
...
40
PISTON ASSY 020 TPC-34510
...
40
PISTON ASSY STD-NLA TPC-34508
...
41
PISTON & PIN 10 TPC-32002B
...
41
PISTON & PIN 20 TPC-32003B
...
41
PISTON & PIN ST TPC-32001C
...
42
RING SET 020 TPC-32006
...
42
RING SET 010 TPC-32005
...
42
RING SET STD N/A TPC-32004
...
43
RET RING TPC-31919
...
45
CONN ROD TPC-34384
...
45
CONN ROD TPC-34383
...
45
CONN ROD TPC-33093A
...
46
SCREW TPC-32077
...
46A
WASHER TPC-26073
...
46B
NUT TPC-28264
...
48
VALVE LIFTER TPC-33472
...
50
CAMSHAFT TPC-34752
...
69
GASKET TPC-31956B
...
70A
CYL COVER TPC-32577
...
70
CYL COVER TPC-32580A
...
72A
PIPE PLUG TPC-28534
...
72
PIPE PLUG TPC-31927
...
75
OIL SEAL TPC-31950
...
81
FLAT WASHER TPC-650745
...
82
GEAR & SHAFT TPC-34751
...
83
GOV SPOOL TPC-35322
...
84
WASHER TPC-651080
...
86
SCREW TPC-650588
...
87
SCREW TPC-650451
...
87A
Screw, 5/16-18 x 7/8" TPC-792028
...
88
SPACER TPC-32426
...
108
GROOVE PIN TPC-29783
...
109
GEAR TPC-34692
...
119
GASKET TPC-34225A
...
144
O RING TPC-33484
...
149
O RING TPC-33481
...
151
O RING TPC-33509
...
151A
O RING TPC-34410
...
159
O RING TPC-33487
...
159A
GASKET TPC-31958A
...
161
SCREW TPC-30102
...
184
GASKET TPC-33476A
...
224
GASKET TPC-33515A
...
313
O RING TPC-32599
...
370
DECAL TPC-36261
...
...
...
