product name

Tecumseh RS-590489 Starter

Model: RS-590489

Save
 Part Not Listed?Part Not Listed?
product name

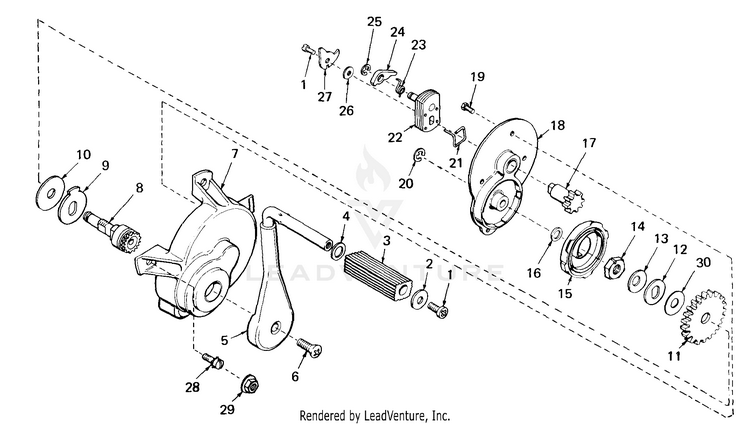

Recoil Starter

...
...
0
STARTER TPC-590489
...
1
SCREW TPC-590490
...
2
WASHER TPC-590491
...
3
PEDAL TPC-590492
...
4
WASHER TPC-590493
...
5
KICK ARM TPC-590494
...
6
SCREW TPC-590495
...
7
STARTER HSG TPC-590496
...
8
SHAFT TPC-590497
...
9
CLUTCH PLATE TPC-590510
...
10
CLUTCH LINER TPC-590511
...
11
GEAR TPC-590498
...
12
WASHER TPC-590512
...
13
WASHER TPC-590515
...
14
NUT TPC-590513
...
15
START SPRING TPC-590499
...
16
WASHER TPC-590500
...
17
SHAFT TPC-590501
...
18
START COVER TPC-590502
...
19
SCREW TPC-590503
...
20
RET RING TPC-590504
...
21
BRAKE SPRING TPC-590505
...
22
PLATE TPC-590506
...
23
SPRING TPC-590507
...
24
STARTER DOG TPC-590484
...
25
RET RING TPC-590483
...
26
WASHER TPC-590508
...
27
DOG CAM TPC-590509
...
28
SCREW TPC-650734
...
29
NUT TPC-29752
...
30
WASHER TPC-590514
...
...
...
