product name

Tecumseh HXL840-8602 4-Cycle Horizontal

Model: HXL840-8602

Save
 Part Not Listed?Part Not Listed?
product name

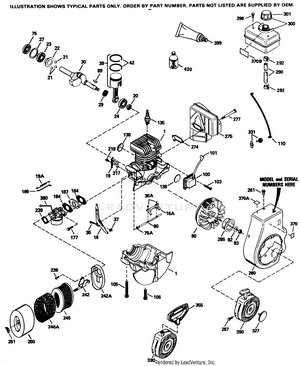

Engine Parts List

...
...
1
CYLINDER TPC-250300A
...
16A
GOV LEVER TPC-490304
...
16
GOV LEVER TPC-490317
...
19A
SPRING TPC-490318
...
19
BRACKET TPC-570271
...
20
OIL SEAL TPC-510340
...
21
BALL TPC-570673
...
22
SLIDE RING TPC-510338
...
23
BEARING TPC-530158
...
24
BEARING TPC-530161
...
27
RETAINER TPC-530159
...
28
OIL SEAL TPC-510339
...
29
BEARING TPC-530164
...
30
CRANKSHAFT TPC-290633
...
35
SCREW TPC-29826
...
37
NUT TPC-29216
...
39
PISTON & ROD TPC-310291A
...
42
RING SET TPC-310278
...
64
SCREW TPC-650893
...
75
OIL SEAL TPC-510337
...
80
GOV SHAFT TPC-490305
...
89
KEY TPC-611107
...
90
FLYWHEEL TPC-611190
...
92
WASHER TPC-650815
...
93
NUT TPC-650816
...
100
LAMINATION TPC-34443D
...
101
PLUG COVER TPC-610118
...
103
SCREW TPC-651007
...
105
SCREW TPC-650892
...
106
SCREW TPC-650891
...
110
GROUND WIRE TPC-611135
...
135
SPARK PLUG TPC-611049
...
138
COVER TPC-570683
...
163
SCREW TPC-650506
...
177
SCREW TPC-650959
...
184
GASKET TPC-510326A
...
186
GOV LINK TPC-490319
...
187
SPACER TPC-570438A
...
217
ADJ LEVER TPC-570667A
...
218
SCREW TPC-650847
...
222
SCREW TPC-651081
...
239
GASKET TPC-35815
...
241
BRACKET TPC-33266
...
242
BRACKET TPC-33267
...
245
AIR CLEANER TPC-33268
...
246
AIR CLEANER TPC-35881
...
250
CLEANER COV TPC-33269A
...
251
NUT TPC-650825
...
260
BLOWER HSG TPC-350447
...
261
SCREW TPC-650894
...
269
GASKET TPC-510343A
...
275
MUFFLER TPC-390327
...
285
STARTER CUP TPC-34449A
...
287
SCREW TPC-650926
...
290
FUEL LINE TPC-30705
...
292
CLAMP TPC-26460
...
298
SCREW TPC-650665
...
300
FUEL TANK TPC-35584
...
301
FUEL CAP TPC-410286
...
327
STARTER PLUG TPC-35392
...
331
SWITCH TPC-610650B
...
355
START HANDLE TPC-590574
...
370
DECAL--Discontinued TPC-550223
...
370A
DECAL TPC-35977
...
370B
DECAL TPC-550230A
...
380
CARBURETOR TPC-632624
...
390
STARTER TPC-590732A
...
399
SEALER TPC-510334
...
422
OIL 2 CYCLE TPC-730227D

RS3-590673 590673-RS3

...

No Parts Available for this Schematic

TEC-632626 1511 Mfg. No. 632626-TEC

...

No Parts Available for this Schematic

...
...
...
