product name

Tecumseh ES-33202 Starter

Model: ES-33202

Save
 Part Not Listed?Part Not Listed?
product name

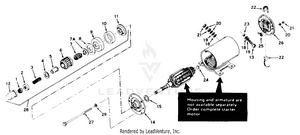

Electric Starter

...
...
1
NUT TPC-32483
...
2
PINION STOP TPC-32484
...
3
SPRING TPC-33214
...
4
WASHER TPC-32486
...
5
SLEEVE TPC-32487
...
6
GEAR TPC-33215
...
7A
STOPPER TPC-33225
...
7
SCREW SHAFT TPC-33216
...
8
WASHER TPC-33217
...
9
CUSHION CUP TPC-33218
...
10
CUSHION TPC-33219
...
11
WASHER TPC-32493
...
12
CAP TPC-33220
...
13
TERMINAL TPC-32499
...
14
END CAP TPC-32494
...
15
WASHER TPC-32496
...
15
WASHER TPC-32495
...
18
WASHER TPC-32500
...
19
WASHER TPC-650168
...
20
WASHER TPC-27513
...
21
NUT TPC-650864
...
22
BRUSH & SPR TPC-32838
...
23
BUSHING TPC-32501
...
24
WASHER TPC-32509
...
25
BRUSH SPRING TPC-32837
...
26
END CAP TPC-33228
...
27
SCREW TPC-32508
...
28
DRIVE ASSY TPC-32481A
...
29
WASHER TPC-31481
...
...
...
