Tecumseh AV520-653-03 2-Cycle Vertical

Model: AV520-653-03

Save
 Part Not Listed?Part Not Listed?
product name

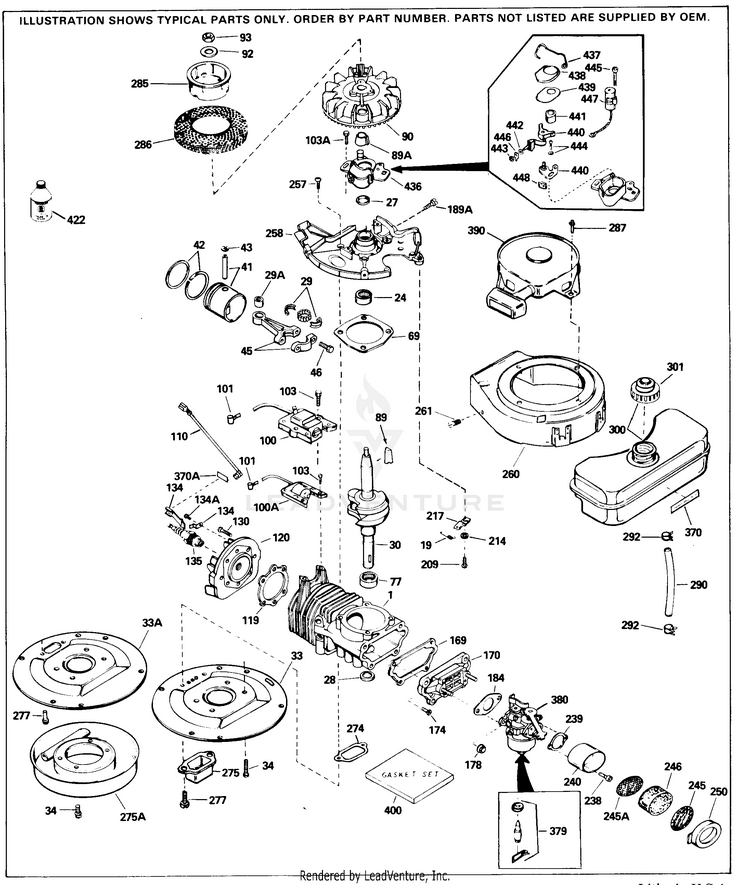

Engine Parts List #1

...
...
19
GOV SPRING TPC-570417
...
24
CAGED BEARING TPC-530105
...
27
OIL SEAL TPC-510319
...
28
OIL SEAL TPC-28427
...
29A
BEARING TPC-530104A
...
29
BEARING TPC-530151
...
30
CRANKSHAFT TPC-290512
...
33A
ADAPTER TPC-330175
...
34
SCREW TPC-650797
...
41
PISTON & PIN TPC-310283A
...
42
RING SET TPC-310289A
...
43
RET RING TPC-310167
...
45
CONN ROD TPC-310263
...
46
SCREW TPC-650633
...
69
GASKET TPC-510292A
...
77
BEARING TPC-530143A
...
89A
SPACER TPC-611014A
...
90
FLYWHEEL TPC-611046A
...
92
WASHER TPC-650815
...
93
NUT TPC-650390
...
100A
KIT TPC-730207
...
101
TERMINAL TPC-610813
...
103
SCREW TPC-651007
...
103A
SCREW TPC-650747
...
110
GROUND WIRE TPC-610686
...
119
GASKET TPC-510274A
...
120
CYL HEAD TPC-250240B
...
130
SCREW TPC-650477
...
134
STOP LEVER TPC-610796
...
134A
SCREW TPC-650737
...
135
SPARK PLUG TPC-33636
...
169
GASKET TPC-510323A
...
170
REED PLATE TPC-470153B
...
174
SCREW TPC-650579
...
178
NUT TPC-650456
...
184
GASKET TPC-510110A
...
209
SCREW TPC-650579
...
214
WASHER TPC-650147
...
217
ADJ LEVER TPC-570335
...
238
SCREW TPC-650431
...
239
GASKET TPC-35815
...
240
CLEANER BODY TPC-450232
...
245A
SCREEN TPC-29962
...
245
AIR CLEANER TPC-450205
...
246
AIR CLEANER TPC-450215
...
250
CLEANER COV TPC-450216
...
257
SCREW TPC-650561
...
258
HOUSING BASE TPC-350411
...
260
BLOWER HSG TPC-350412A
...
261
SCREW TPC-650958
...
274
GASKET TPC-510314A
...
275A
MUFFLER COVER TPC-390297
...
277
SCREW TPC-650561
...
285
STARTER CUP TPC-590551A
...
286
SCREEN TPC-590417
...
290
FUEL LINE TPC-29774
...
292
CLAMP TPC-26460
...
300
FUEL TANK TPC-410233
...
301
FUEL CAP TPC-33032
...
370
DECAL TPC-550218
...
370A
DECAL TPC-550197
...
379
INLET NEEDLE KIT TPC-631021B
...
380
CARBURETOR TPC-632231
...
390
STARTER TPC-590420A
...
400
GASKET SET TPC-510322A
...
422
OIL 2 CYCLE TPC-730227D
...
436
STATOR ASSY TPC-611006
...
437
COVER SPRING TPC-30551
...
438
COVER TPC-610947
...
439
GASKET TPC-610955
...
440
BREAKER SET TPC-30547A
...
441
BREAKER CAM TPC-30552
...
442
WASHER TPC-610385
...
443
NUT TPC-610408
...
444
SCREW TPC-29181
...
445
SCREW TPC-610593
...
446
TERMINAL TPC-33356
...
447
CONDENSER TPC-30548B
...
448
WIPER FELT TPC-30549

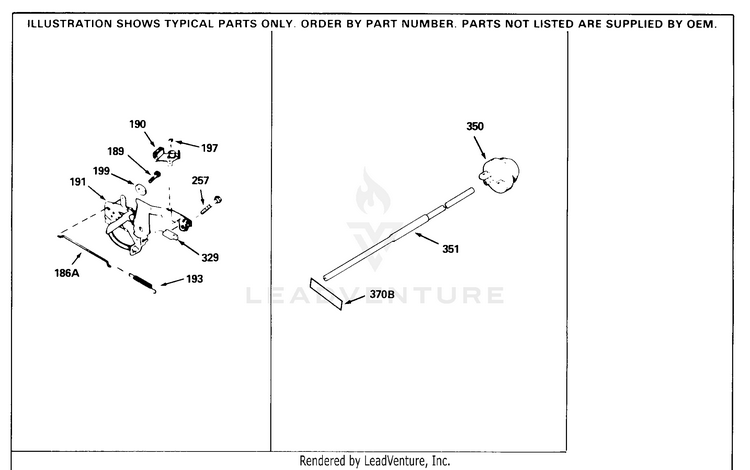

Engine Parts List #2

...
...
257
SCREW TPC-650561

CA-632231 1100 Mfg. No. 632231-CA

...

No Parts Available for this Schematic

RS1-590420 590420-RS1

...

No Parts Available for this Schematic

...
...
...
