Robomow by MTD 22AXBAAA037 RX12u (2018) Robotic Mower

Model: 22AXBAAA037 RX12u (2018)

Save
 Part Not Listed?Part Not Listed?
product name

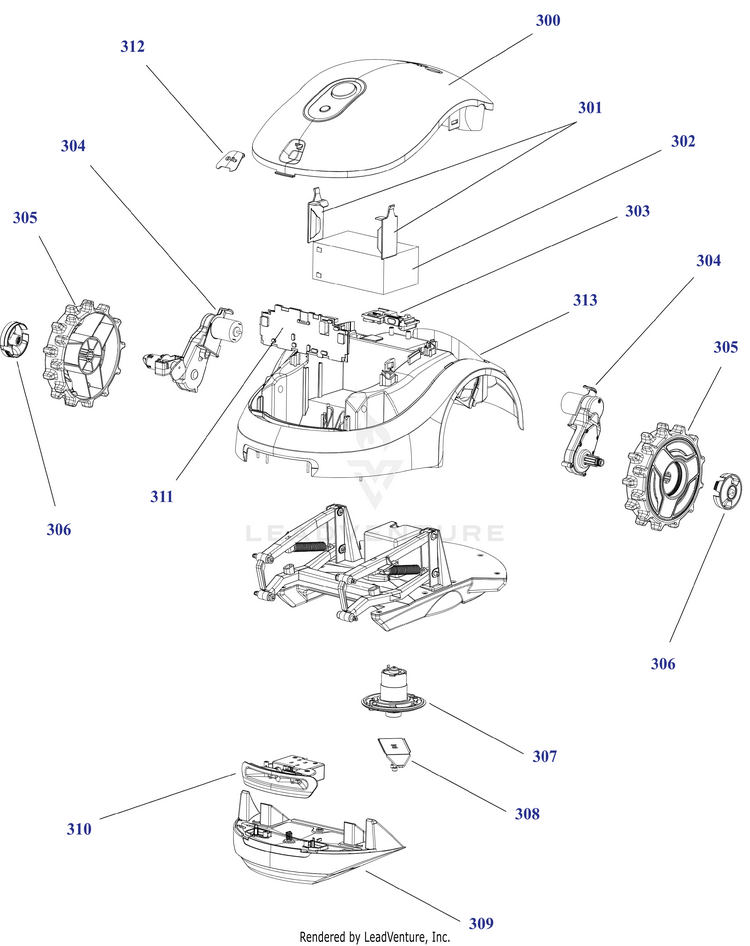

General Assembly

...
...
300
COVER ASSY (GRN)AND DISABLING RX MTD-FR-SMSB9001G
...
301
BATTERY LOCKERS RX MTD-FR-SINJ9028A
...
302
BATTERY (RX) MTD-FR-MRK9101A
...
304
DRIVE MOTOR RX MTD-FR-SMOT9000A
...
306
WHEEL LOCK CAPS RX MTD-FR-SINJ9014A
...
307
MOWING MOTOR RX MTD-FR-SMOT9101A
...
308
RX BLADE (1 PC) MTD-FR-MRK9100A
...
309
SKI ASSEMBLY RX MTD-FR-MSB9002B
...
310
NOZZLE ASSEMBLY RX MTD-FR-MSB9004A
...
311
MAIN BOARD RX MTD-FR-SESB9000B
...
312
DISABLING DEVICE FOR RX MTD-FR-SMSB9010A
...
313
CHASSIS ASSEMBLY RX MTD-FR-MSB9000A
...
314
10MM POWER SUPPLY WALL MT 17V MTD-FR-SPWS0022A
...
316
BASE STATION HEAD ASSEMBLY RX MTD-FR-SMSB9009A
...
317
BASE STATION RX MTD-FR-SINJ9026B
...
318
MOWING MOTOR CABLE MTD-FR-WSB9001D
...
320
MOWING DECK ASSEMBLY RX MTD-FR-MSB9003A
...
321
MOWING DECK SPRIN RX MTD-FR-GEN9004A
...
322
MOWING ARM LONG PIN RX MTD-FR-INJ9022A-01
...
323
MOWING ARM SHORT PIN RX MTD-FR-INJ9023A-01
...
324
SCREW K4X20 WN 1451-ZP TOREX MTD-FR-SCR5009B
...
325
EJOT K30X35 WN-1451 TORX MTD-FR-SCR9003A
...
xx
ROBO RULER (RX) Not Shown MTD-FR-DOC9004B
...
xx
ROBO TOOL Not Shown MTD-FR-STOL0013A
...
xx
NOT FOR CHILDREN STICKER Not Shown MTD-FR-STC0123A
...
xx
DANGER STICKER Not Shown MTD-FR-STC5004C
...
xx
WARNING STICKER REAR Not Shown MTD-FR-STC6002B
...
xx
ALARM STICKER Not Shown MTD-FR-STC6036W
...
xx
RX SERVICE KEYBOARD KIT Not Shown MTD-FR-TOL9001A
...
xx
RX COMMUNICATION PLUG Not Shown MTD-FR-TOL9002A
...
xx
MOWING HEIGHT ADJUST ASSEMBLY RX Not Shown MTD-FR-MSB9005A
...
xx
RX BROWN MAIN PACK Not Shown MTD-FR-PCK9000N1
...
xx
RX 12U MAIN PACK Not Shown MTD-FR-PCK9012B
...
xx
RX 20U MAIN PACK Not Shown MTD-FR-PCK9020B
...
...
...
