Poulan Pro XE850PEAR Mower

Model: XE850PEAR Mower

Save
 Part Not Listed?Part Not Listed?
product name

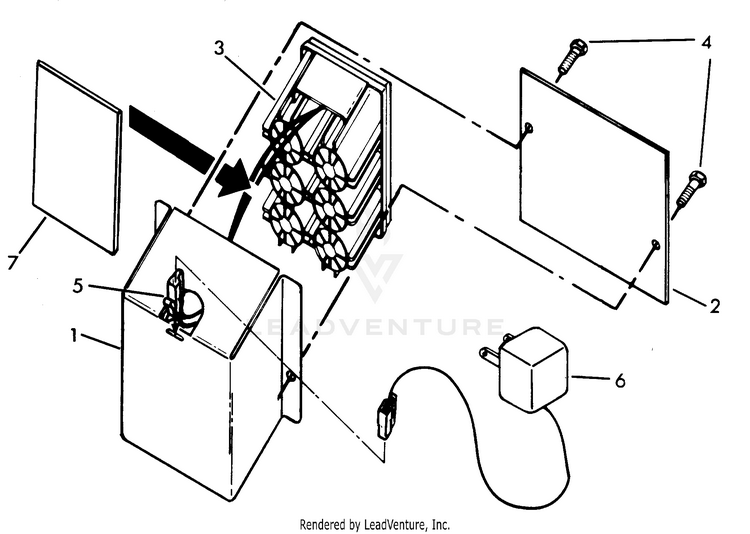

BATTERY MOUNTING

...
...
1
Battery Bracket (AYP part number) PLN-532800705
...
2
Battery Cover (AYP part number) PLN-532800706
...
3
BATTERY KIT W/ADAPTOR PLN-532048374
...
4
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
5
Connector Mounting Clip (AYP part number) PLN-532086353
...
6
Battery Charger (AYP part number) PLN-532111549
...
7
Battery Pad (AYP part number) PLN-532086649

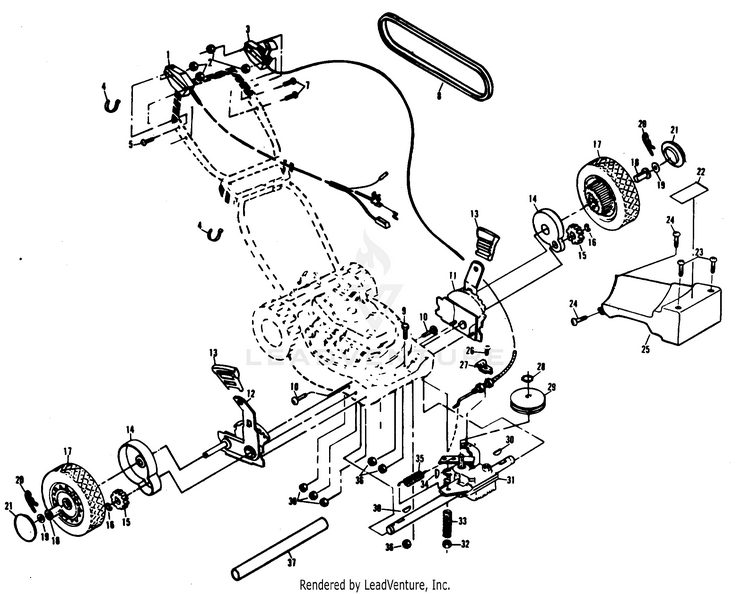

DRIVE ASSEMBLY

...
...
1
Engine Control Cable (AYP part number) PLN-532851098
...
2
NUT 1/4-20 NYLOC PLN-539976978
...
3
DRIVE CONTROL PLN-532133053
...
4
WIRE TIE PLN-532007192
...
5
Machine Screw 1/4-20 x 2-1/8 (AYP part number) PLN-874250434
...
7
Machine Screw 1/4-20 x 2-1/8 (AYP part number) PLN-874250434
...
8
V-Belt PLN-532083691
...
9
Hex Head Bolt (AYP part number) PLN-532054338
...
10
Screw (AYP part number) PLN-874100412
...
11
Wheel Adjuster Assembly (Left) PLN-532800691
...
12
Wheel Adjuster Assembly (Right) PLN-532800689
...
13
SELECTOR KNOB PLN-532701037
...
14
Dust Cover (AYP part number) PLN-532076401
...
15
Pinion (AYP part number) PLN-532074507
...
16
E-Ring PLN-812000003
...
17
WHEEL/TIRE 8X1.75 PLN-583602401
...
18
Wheel Bushing (AYP part number) PLN-532086960
...
19
Flat Washer (AYP part number) PLN-532052160
...
20
Retainer Clip (AYP part number) PLN-532085179
...
21
Hubcap PLN-532800543
...
22
Drive Cover Decal (AYP part number) PLN-532800681
...
23
Pan Head Tapping Screw (AYP part number) PLN-532087866
...
24
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
25
Drive Cover (AYP part number) PLN-532750293
...
26
Hex Washer Head Tapping Screw (AYP part number) PLN-532750108
...
27
Cable Clamp (AYP part number) PLN-532083700
...
28
Retaining Ring (AYP part number) PLN-532074976
...
29
PULLEY KIT PLN-532154753
...
30
Woodruff Key #3 (AYP part number) PLN-532065692
...
31
Gear Case Halves, Upper and Lower (AYP part number) PLN-532048281
...
32
PLN-873850400
...
33
Spring (AYP part number) PLN-532137090
...
34
Woodruff Key #213 (AYP part number) PLN-532057076
...
35
Spring PLN-532075192
...
36
NUT 1/4-20 NYLOC PLN-539976978
...
37
Drive Shaft Cover (AYP part number) PLN-532086012

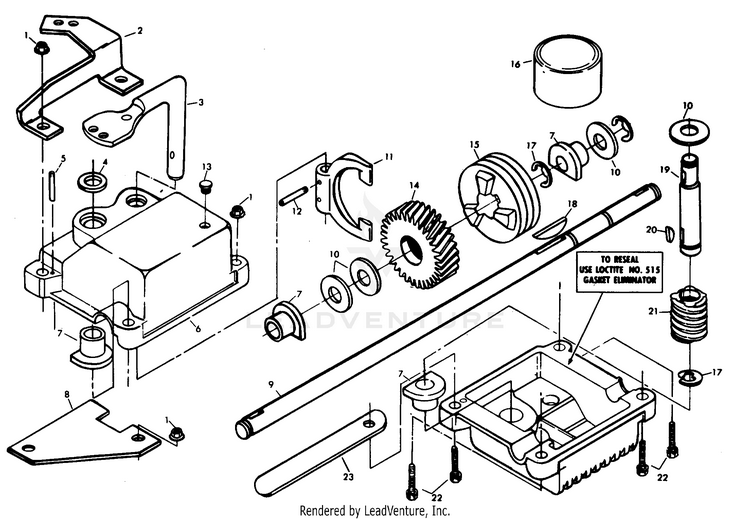

GEARCASE ASSEMBLY

...
...
1
NUT.CROWNLOCK.1/4 PLN-873680400
...
2
ADJUSTER BRACKET PLN-532085177
...
3
Shifter Assembly (AYP part number) PLN-532088386
...
4
Seal PLN-532057072
...
5
Grooved Pin (AYP part number) PLN-532057388
...
6
Gear Case Halves (AYP part number) (Inc. Upper & Lower Halves); (Incl. Ref. 4, 5, 7) PLN-532048032
...
7
Bearing (AYP part number) PLN-532077881
...
8
SPRING BRACKET PLN-532081585
...
9
Drive Shaft (AYP part number) PLN-532750430
...
10
Hardened Washer (AYP part number) PLN-532057079
...
11
Yoke Clutch (AYP part number) PLN-532075144
...
12
Grooved Pin (AYP part number) PLN-532087822
...
13
Plug (AYP part number) PLN-532086447
...
14
Helical Gear (AYP part number) PLN-532083659
...
15
Jaw Clutch (AYP part number) PLN-532750436
...
16
Grease (AYP part number) PLN-532750355
...
17
E-Ring PLN-812000003
...
18
Hi-Pro Key (AYP part number) PLN-532850848
...
19
Worm Shaft (AYP part number) PLN-532083720
...
20
Woodruff Key #3 (AYP part number) PLN-532065692
...
21
PULLEY KIT PLN-532154753
...
22
Hex Head Mach. Screw (AYP part number) PLN-532050950
...
23
Identification Tag PLN-532751046

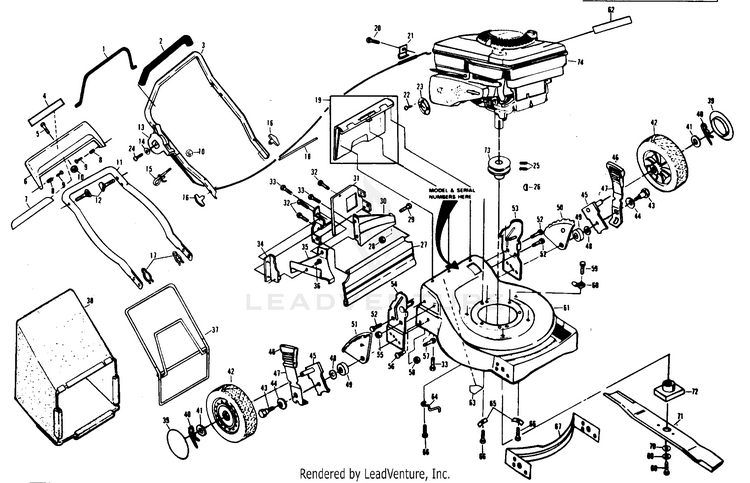

MOWER HOUSING, ENGINE B/S 124707

...
...
1
Control Bar (AYP part number) PLN-532800733
...
2
Handle Grip (AYP part number) PLN-532850724
...
3
Upper Handle PLN-532851029
...
4
Trim Plate Decal 5.0 HP PLN-532800787
...
5
Hex Head Bolt 1/4-20 x 1-1/2 (AYP part number) PLN-874760424
...
6
Trim Plate PLN-532800542
...
7
Trim Plate Decal (AYP part number) PLN-532800669
...
8
Nylon Bushing (AYP part number) PLN-532085529
...
9
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
10
NUT 1/4-20 NYLOC PLN-539976978
...
11
Lower Handle (AYP part number) PLN-532800481
...
12
Handle Bolt PLN-532058714
...
13
Throttle Control (AYP part number) PLN-532851461
...
14
Flat Washer (AYP part number) PLN-532085723
...
15
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
16
KNOB.HANDLE.KIT.SERVICE PLN-532183724
...
17
Hairpin Cotter (AYP part number) PLN-532051793
...
18
Hinge Rod (AYP part number) PLN-532750328
...
19
Rear Door Kit (AYP part number) PLN-532048137
...
20
Thread Rolling Screw (AYP part number) PLN-532107488
...
21
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532125078
...
22
Screw (AYP part number) These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532069485
...
23
Muffler Deflector These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532223389
...
24
SCREW PLN-532128889
...
25
Set Screw (AYP part number) PLN-532059708
...
26
Hi-Pro Key #HP 505 (AYP part number) PLN-532087677
...
27
Rear Deflector (AYP part number) PLN-532140540
...
28
Locknut (AYP part number) PLN-532069180
...
29
Truss Head Screw (AYP part number) PLN-532041945
...
30
BAFFLE.REAR.HSG.ASM.QT.22.BLAC PLN-532140661
...
31
Back Plate PLN-532801015
...
32
Self Tapping Screw (AYP part number) PLN-532081283
...
33
Hex Tapping Screw (AYP part number) PLN-532054583
...
34
Side Baffle (AYP part number) PLN-532750433
...
35
Discharge Baffle PLN-532801012
...
36
Hex Head Screw (AYP part number) PLN-532086344
...
37
Catcher Frame PLN-532088614
...
38
Grass Bag Assembly PLN-532800563
...
39
Hubcap (AYP part number) PLN-532800544
...
40
Retainer Clip (AYP part number) PLN-532085179
...
41
Flat Washer (AYP part number) PLN-532052160
...
42
Wheel & Tire Assembly (AYP part number) PLN-532851071
...
43
BOLT SHOULDER 3/8 -16X1 PLN-532174719
...
44
Belleville Washer (AYP part number) PLN-532062335
...
45
Axle Arm Assembly (AYP part number) PLN-532087887
...
46
SELECTOR KNOB PLN-532701037
...
47
Selector Spring PLN-532125066
...
48
Flat Washer (AYP part number) PLN-532088348
...
49
Spacer (AYP part number) PLN-532084920
...
50
Wheel Adjusting Bracket (Left) PLN-532800663
...
51
Wheel Adjusting Bracket (Right) PLN-532800667
...
52
Thread Cutting Screw (AYP part number) PLN-532055187
...
53
Handle Bracket Assembly (Left) (AYP part number) PLN-532800489
...
54
Handle Bracket Assembly (Right) PLN-532800488
...
55
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
56
Hinge Screw (AYP part number) PLN-532088652
...
57
BOLT PLN-872140505
...
58
LOCKNUT PLN-873680600
...
59
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
60
Housing Cable Guide (AYP part number) PLN-532087930
...
61
Lawn Mower Housing (Incl. Ref. #63) PLN-532801014
...
62
"Poulan" Decal (AYP part number) PLN-532800644
...
63
Danger Decal (AYP part number) PLN-532085463
...
64
Belt Snubber (AYP part number) PLN-532851000
...
65
WASHER.ENGINE.BZP PLN-532125078
...
66
BOLT 3/8-16X1-1/8 PLN-532150406
...
67
Front Baffle (AYP part number) PLN-532132255
...
68
Hex Head Screw Grd. 8 PLN-532851084
...
69
SLW 3/8 STD PLN-539990118
...
70
Hardened Washer (AYP part number) PLN-532851074
...
71
BLADE.22.MULCH.STANDARD PLN-532406713
...
72
ADAPTOR.BLADE.7/8 PLN-581547901
...
73
Engine Pulley (AYP part number) PLN-532084596
...
74
Engine - Briggs/Stratton Model No. 124707 Type No. 3120-01, Owners Manual (AYP part number) Not Shown. PLN-532800709
...
...
...
