Poulan Pro XE840PAR Tractor

Model: XE840PAR Tractor

Save
 Part Not Listed?Part Not Listed?
product name

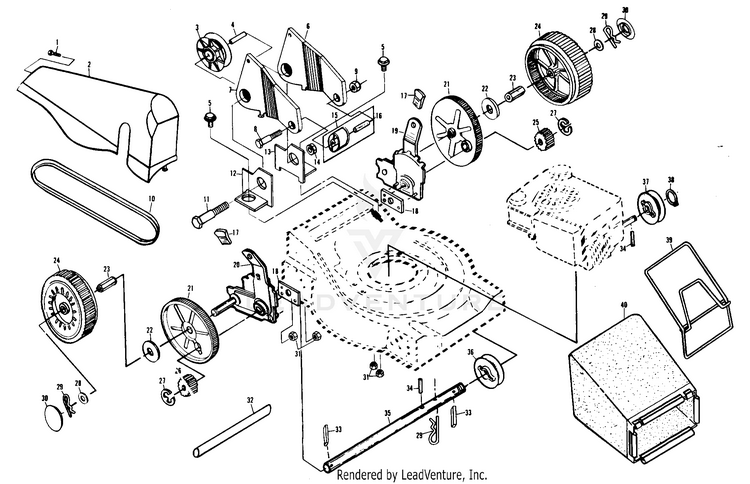

DRIVE ASSEMBLY

...
...
1
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
2
Drive Cover (AYP part number) PLN-532850043
...
3
Idler Pulley (AYP part number) PLN-532088516
...
4
Pulley Spacer (AYP part number) PLN-532850037
...
5
Hex Head Machine Screw (AYP part number) PLN-532065231
...
6
Idler Bracket (Left) (AYP part number) PLN-532850033
...
7
Idler Bracket (Right) (AYP part number) PLN-532850035
...
8
Hex Head Bolt 1/4-20 x 1-1/2 (AYP part number) PLN-874760424
...
9
Hex Locknut (AYP part number) PLN-532050962
...
10
Drive Belt PLN-532850028
...
11
Hex Head Bolt (AYP part number) PLN-532050884
...
12
Pivot Bracket (Right) (AYP part number) PLN-532850031
...
13
Pivot Bracket (Left) (AYP part number) PLN-532850029
...
14
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
15
Idler Assembly Kit (Inc. 16) (AYP part number) PLN-532048160
...
16
Idler Spacer (AYP part number) PLN-532088576
...
17
SELECTOR KNOB PLN-532701037
...
18
Spacer Plate (AYP part number) PLN-532850049
...
19
Selector Assembly (Left) (AYP part number) PLN-532850982
...
20
Selector Assembly (Right) (AYP part number) PLN-532850983
...
21
COVER.DUST.WHEEL.INNER.WALK PLN-581840401
...
22
Washer (AYP part number) PLN-532067725
...
23
Wheel Bushing (AYP part number) PLN-532088446
...
24
Wheel & Tire Assembly (AYP part number) PLN-532850707
...
25
DRIVE PINION RH PLN-532165096
...
26
PINION.DRIVE.LH PLN-532165097
...
27
E-Ring PLN-812000003
...
28
Flat Washer (AYP part number) PLN-532052160
...
29
Retainer Clip (AYP part number) PLN-532085179
...
30
Hubcap (AYP part number) PLN-532800544
...
31
NUT 1/4-20 NYLOC PLN-539976978
...
32
Drive Shaft Cover (AYP part number) PLN-532850373
...
33
Drive Pawl (AYP part number) PLN-532850018
...
34
Drive Pawl (AYP part number) PLN-532851980
...
35
Drive Shaft (AYP part number) PLN-532850025
...
36
Driven Pulley (AYP part number) PLN-532088082
...
37
Drive Pulley PLN-532850027
...
38
Ring, Retaining (AYP part number) PLN-532002286
...
39
Catcher Frame PLN-532088614
...
40
Grass Bag Assembly PLN-532800563

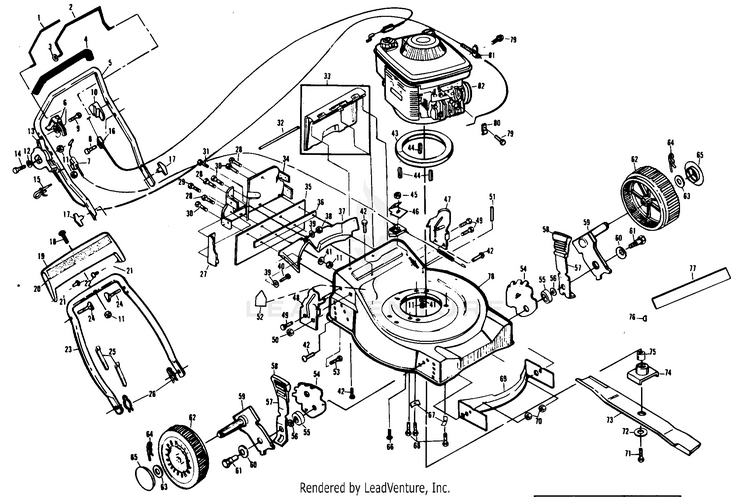

MOWER HOUSING, ENGINE B/S 110782

...
...
1
Drive Bar PLN-532800637
...
2
Engine Control Bar (AYP part number) PLN-532800636
...
3
WASHER PLN-531003379
...
4
Handle Grip (AYP part number) PLN-532850724
...
5
Upper Handle PLN-532800326
...
6
Drive Control Actuator (AYP part number) PLN-532850042
...
7
Drive Cable Assembly PLN-532751274
...
8
Hex Thread Rolling Screw (AYP part number) PLN-532085768
...
9
Self Tapping Screw (AYP part number) PLN-532036953
...
10
Zone Control Actuator (AYP part number) PLN-532850041
...
11
NUT 1/4-20 NYLOC PLN-539976978
...
12
Flat Washer (AYP part number) PLN-532085723
...
13
Throttle Control (AYP part number) PLN-532851463
...
14
Machine Screw 1/4-20 x 2-1/8 (AYP part number) PLN-874250434
...
15
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788
...
16
Engine Control Cable Assembly (AYP part number) PLN-532800613
...
17
KNOB.HANDLE.KIT.SERVICE PLN-532183724
...
18
Hex Head Bolt 1/4-20 x 1-1/2 (AYP part number) PLN-874760424
...
19
Trim Plate PLN-532800542
...
20
Trim Plate Decal 4.0 HP (AYP part number) PLN-532800786
...
21
Nylon Bushing (AYP part number) PLN-532085529
...
22
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
23
Lower Handle (AYP part number) PLN-532800481
...
24
Handle Bolt PLN-532058714
...
25
WIRE TIE PLN-532007192
...
26
Hairpin Cotter (AYP part number) PLN-532051793
...
27
Side Baffle (AYP part number) PLN-532850712
...
28
Self Tapping Screw (AYP part number) PLN-532081283
...
29
Hex Head Screw (AYP part number) PLN-532086779
...
30
Hex Tapping Screw (AYP part number) PLN-532054583
...
31
Hex Washer Head Machine Screw (AYP part number) PLN-532076399
...
32
Hinge Rod (AYP part number) PLN-532750328
...
33
Rear Door Kit (AYP part number) PLN-532048137
...
34
Back Plate PLN-532800781
...
35
Rear Skirt (AYP part number) PLN-532130444
...
36
Backing Strip (AYP part number) PLN-532088368
...
37
Rear Baffle PLN-532850061
...
38
Locknut (AYP part number) PLN-532074189
...
39
Flat Washer (AYP part number) PLN-532010102
...
40
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
41
Washer (AYP part number) PLN-532002084
...
42
Hex Tapping Screw (AYP part number) PLN-532054583
...
43
Engine Spacer (AYP part number) PLN-532850988
...
44
Spacer (AYP part number) PLN-532850988
...
45
NUT PLN-873271000
...
46
Bracket Cover (AYP part number) PLN-532750346
...
47
Handle Bracket Assembly (Left) PLN-532800594
...
48
Handle Bracket Assembly (Right) (AYP part number) PLN-532800593
...
49
Thread Cutting Screw (AYP part number) PLN-532055187
...
50
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
51
BOLT PLN-872240404
...
52
Danger Decal (AYP part number) PLN-532095463
...
53
BOLT PLN-872140505
...
54
Wheel Adjusting Bracket (AYP part number) PLN-532139901
...
55
Spacer (AYP part number) PLN-532084920
...
56
Flat Washer (AYP part number) PLN-532088348
...
57
Selector Spring (AYP part number) PLN-532850856
...
58
SELECTOR KNOB PLN-532701037
...
59
Axle Arm Assembly (AYP part number) PLN-532095022
...
60
Belleville Washer (AYP part number) PLN-532062335
...
61
BOLT SHOULDER 3/8 -16X1 PLN-532174719
...
62
Wheel & Tire Assembly (AYP part number) PLN-532850957
...
63
Flat Washer (AYP part number) PLN-532052160
...
64
Retainer Clip (AYP part number) PLN-532085179
...
65
Hubcap (AYP part number) PLN-532800544
...
66
Machine Screw (AYP part number) PLN-532057155
...
67
WASHER.ENGINE.BZP PLN-532125078
...
68
Hex Head Thread Rolling Screw (AYP part number) PLN-532850999
...
69
Front Baffle (AYP part number) PLN-532132255
...
70
LOCKNUT PLN-873680600
...
71
Hex Head Machine Screw Grd. 8 (AYP part number) PLN-532085727
...
72
SLW 3/8 STD PLN-539990118
...
73
Blade 22" (AYP part number) PLN-532103524
...
74
Blade Adpater (AYP part number) PLN-532107252
...
75
Spacer (AYP part number) PLN-532103113
...
76
Hi-Pro Key #HP 505 (AYP part number) PLN-532097677
...
77
Housing Front Decal (AYP part number) PLN-532800791
...
78
Lawn Mower Housing (AYP part number) (Incl. Ref. #52) PLN-532801013
...
79
Thread Rolling Screw (AYP part number) PLN-532107488
...
80
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532125078
...
81
Cable Clip (AYP part number) PLN-532850472
...
82
Engine - Briggs/Stratton Model No. 110782 Type No. 3166-01, Owners Manual (AYP part number) Not Shown. PLN-532800713
...
...
...
