Poulan Pro PT100 Electric Trimmer

Model: PT100 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

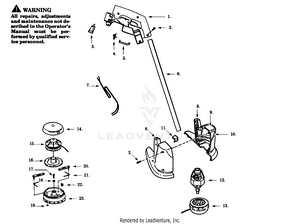

TRIMMER ASSEMBLY

...
...
1
Handle Set PLN-530351822
...
2
Screw PLN-534193800
...
3
Cord Retainer PLN-530347653
...
4
On/Off Switch PLN-530347897
...
5
Trigger Switch PLN-530351826
...
6
Tube Ass'y. w/ Decal PLN-534014579
...
7
Plug/Harness Ass'y. PLN-534014581
...
8
Housing Set PLN-534014580
...
9
Housing Top Label (Not a serviceable part) PLN-534036697
...
10
Hsg. Front Label PLN-534036696
...
11
Blade/Bracket Ass'y. PLN-534958002
...
12
Motor Ass'y. PLN-534102003
...
13
Cutting Head Ass'y. PLN-534918301
...
14
Cover PLN-534919200
...
15
Spool w/Line PLN-534919002
...
16
Cam PLN-534100640
...
17
Screw PLN-534978600
...
18
Washer PLN-534908700
...
19
Push Nut PLN-534400701
...
20
Arm PLN-530400713
...
21
Spring PLN-534908501
...
22
Line Shield PLN-534918500
...
23
Housing Ass'y. PLN-530400739
...
xx
Operator Manual Not Shown. PLN-534068465
...
xx
Carton (Not a serviceable part) Not Shown. PLN-534061527
...
...
...
