product name

Poulan Pro PPB5000P Pruner Attachment

Model: PPB5000P-Poulan Pro

Save
 Part Not Listed?Part Not Listed?
product name

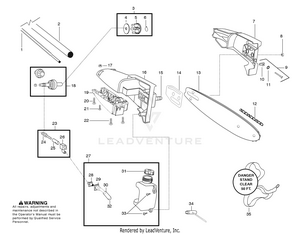

Pole Pruner Attachment Assembly

...
...
1
Flexshaft - lower PLN-545132001
...
2
Assy. - Lower Driveshaft PLN-545092705
...
3
Kit - Sprocket Assy. (Incl. 4,5,6) PLN-530071647
...
4
Washer PLN-530056521
...
5
Sprocket PLN-530056520
...
6
Retainer - Sprocket PLN-530056563
...
7
Assy - Bar Clamp (Incl. 9) PLN-530057100
...
8
Nut - Bar Mounting PLN-530015917
...
9
Kit - Bar Adjust (Incl. 10,11) PLN-530069611
...
10
Pin - Bar Adjust PLN-530015826
...
11
Retainer - Bar Adjust PLN-530038593
...
12
Chain - 8" PLN-530051524
...
13
Bar - 8" PLN-530044908
...
14
Plate - Bar Pad PLN-530056523
...
15
Bolt - Bar PLN-530016133
...
16
Housing - Upper (Incl. 15) PLN-530056513
...
17
Nut PLN-530016284
...
18
Kit - Gear Assy. PLN-530071646
...
19
Housing - Lower PLN-530056514
...
20
Screw PLN-530016312
...
21
Screw - Alignment PLN-530015805
...
22
Screw PLN-530015886
...
23
Kit - Oil Assy (Incl. 24,25,26,28) PLN-530071645
...
24
Assy. - Gear Plunger PLN-530053764
...
25
Barrel PLN-530053765
...
26
Assy- Oil Block (Incl. 25) PLN-530057347
...
27
ASSY OIL TANK (Incl. 28,29,30,31,32) PLN-530150266
...
28
Fitting - Oil Line PLN-530056524
...
29
Intake - Oil Line PLN-530021160
...
30
Filter-Oil PLN-530056533
...
31
CAP OIL PLN-530150552
...
32
Filter-Oil PLN-530056533
...
33
Screw PLN-530015843
...
34
Wrench - Bar PLN-530031163
...
35
Shoulder Strap PLN-530094417
...
xx
Manual Not Shown PLN-545212830
...
xx
Decal-shaft warning Not Shown PLN-545003066
...
xx
KIT HARNESS CLAMP Not Shown PLN-530071605
...
xx
KIT HARNESS CLAMP Not Shown PLN-530071605
...
xx
Screw (harness clamp) Not Shown PLN-530016406
...
xx
Hanger-Att. (90 deg.) Not Shown PLN-530150031
...
xx
Wrench-hex (5/32) Not Shown PLN-530031159
...
...
...
