product name

Poulan Pro PP735 Mower

Model: PP735 Mower

Save
 Part Not Listed?Part Not Listed?
product name

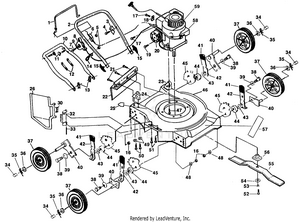

MOWER ASSEMBLY, ENGINE B/S 92502

...
...
1
Control Bar (AYP part number) PLN-532800633
...
2
Upper Handle (AYP part number) PLN-532125174
...
3
BRACKET.UPSTOP PLN-532850733
...
4
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
5
NUT 1/4-20 NYLOC PLN-539976978
...
6
Engine Zone Control Cable PLN-532851669
...
7
Flat Washer 9/32 x 5/8 x 1/16 (AYP part number) PLN-532085723
...
8
Throttle Control (AYP part number) PLN-532851461
...
9
Machine Screw 1/4-20 x 2-1/8 PLN-532085602
...
10
HANDLE.LOWER.BLACK PLN-532157081
...
11
Handle Bolt 5/16-18 x 1-3/4 PLN-532058714
...
12
WIRE TIE PLN-532007192
...
13
Hairpin Cotter (AYP part number) PLN-532051793
...
14
Rope Guide (AYP part number) PLN-532103672
...
15
KNOB.HANDLE.KIT.SERVICE PLN-532183724
...
16
LOCKNUT PLN-873680600
...
17
Thread Rolling Screw #10-32 x 5/8 (AYP part number) PLN-532107488
...
18
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532125078
...
19
Screw (AYP part number) These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532069485
...
20
Muffler Deflector These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532223290
...
22
Rear Skirt (AYP part number) PLN-532008259
...
23
Handle Bracket Assembly (Left) (AYP part number) PLN-532125163
...
24
Handle Bracket Assembly (Right) (AYP part number) PLN-532125164
...
25
Danger Decal (AYP part number) PLN-532085463
...
26
Discharge Guard (AYP part number) PLN-532851751
...
27
SCREW 1/4X20 PLN-817600406
...
30
SPRING.SIDE.DISCHARGE PLN-532411832
...
32
Housing Bracket BEP (AYP part number) PLN-532851853
...
33
Hinge Rod (AYP part number) PLN-532147286
...
34
Hubcap (AYP part number) PLN-532800090
...
35
Retainer Clip (AYP part number) PLN-532085179
...
36
Flat Washer 1/2 (AYP part number) PLN-532052160
...
37
Wheel Assembly 7.0 x 1-1/2 PLN-532800724
...
38
Shoulder Bolt 3/8-16 (AYP part number) PLN-532084821
...
39
Belleville Washer 1/2 (AYP part number) PLN-532062335
...
40
ARM.ASM.AXLE. PLN-532187930
...
41
Selector Knob (AYP part number) PLN-532087877
...
42
Selector Spring (AYP part number) PLN-532125168
...
43
Flat Washer 3/8 (AYP part number) PLN-532088348
...
44
Spacer (AYP part number) PLN-532084920
...
45
Wheel Adjusting Bracket (AYP part number) PLN-532139901
...
46
Lawn Mower Housing (Inc. Ref. #25) PLN-532800749
...
47
BOLT 3/8-16X1-1/8 PLN-532150406
...
48
Washer (AYP part number) PLN-53261537
...
49
Flat Washer 5/16 (AYP part number) PLN-532059289
...
50
Thread Cutting Screw 5/16-18 x 3/4 (AYP part number) PLN-532055187
...
51
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008
...
52
Hex Head Screw 3/8-24 x 1-3/8, Grade 8 PLN-532851084
...
53
SLW 3/8 STD PLN-539990118
...
54
Hardened Washer (AYP part number) PLN-532851074
...
55
20" Blade (AYP part number) PLN-532145106
...
56
ADAPTOR.BLADE.7/8 PLN-581547901
...
57
Decal "Housing" (AYP part number) PLN-532128939
...
59
Starter Guard These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532028684
...
...
...
