product name

Poulan Pro PP4620AVX Gas Saw

Model: PP4620AVX Gas Saw, 4620AVX-Poulan Pro

Save
 Part Not Listed?Part Not Listed?
product name

Engine Assembly

...
...
1
Screw PLN-530016154
...
2
Kit-Cylinder Shield PLN-530069716
...
3
Grommet -Carb. PLN-530035583
...
4
Screw PLN-530015814
...
5
BPMR7A NGK SPARK PLUG (RCJ-7Y) PLN-503235111
...
6
Module-Ignition PLN-545063901
...
7
Screw PLN-545121901
...
8
Assy-Switch Wire PLN-530037467
...
9
Insulator-Heat PLN-530037652
...
10
Kit-Muffler (Incl.11,13,14,15,16,17,18) PLN-530071495
...
11
Kit-Spark Arrestor (Incl.# 15) PLN-530071497
...
12
NUT 10MM BRASS PLN-574266401
...
13
Cover-Bolt PLN-530056061
...
14
Bolt-Muffler PLN-530016338
...
15
Screw-Spark Screen PLN-530016351
...
16
Gasket-Muffler PLN-530055128
...
17
Assy-Muffler Backplate PLN-530055765
...
18
Backplate - Alum. PLN-530055402
...
19
Bearing-Piston Pin PLN-503414101
...
20
Assy-Bearing & Seal PLN-530056363
...
21
Cap-Crankcase PLN-530049794
...
22
Screw PLN-530015897
...
23
ASSY-CRANKSHAFT & ROD PLN-503920801
...
24
Retainer-Piston Pin PLN-530015697
...
25
Ring-Piston PLN-530037380
...
26
Kit-Piston (Incl. 19,24,25) PLN-530069548
...
27
Assy-Cyl/Crankcase (Incl.#21) PLN-530071490
...
28
Seal-Super Clean PLN-530019251
...
29
Intake Boot PLN-530035581
...
30
Adapter-Carb. PLN-530053396
...
31
Intake Plate-Carb PLN-530037872
...
32
Gasket-Carb. PLN-530019172
...
33
CARBURETOR (WT-657) PLN-545013503
...
34
Isolator PLN-530036792
...
35
Filter-Air (Bottom) PLN-530059738
...
36
Screw PLN-530015970
...
37
Filter-Air (Top) PLN-545057701
...
38
Screw PLN-530015899
...
39
Kit-Fuel Line (Small) PLN-530069247
...
40
Assy-Fuel Pick-up PLN-530095646
...
xx
Manual Not Shown PLN-545186803

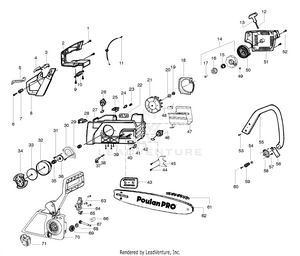

Handle, Chassis & Bar Assembly

...
...
1
Screw PLN-530015957
...
2
Cover-Handle (kit) PLN-530071272
...
3
Trigger-Throttle PLN-530036097
...
4
Lockout-Throttle PLN-530036098
...
5
Lever-Choke PLN-530053443
...
6
Screw PLN-530015937
...
7
Spring-Isolator PLN-530038985
...
8
Handle-Rear (kit) PLN-530071272
...
9
Screw PLN-530015906
...
10
Spring-Isolator PLN-530038986
...
11
Assy-Throttle Cable (Incl. Grommet) PLN-530038471
...
12
Kit-Rope PLN-530069232
...
13
Handle-Starter PLN-530056422
...
14
Kit-Starter EPS (Incl. 15,16,17,49) PLN-530071966
...
15
Spring EPS PLN-530021180
...
16
Hub-Starter EPS PLN-530059677
...
17
Screw-Shoulder PLN-530021179
...
18
Plate-Baffle Fan PLN-530047667
...
19
Nut-Flywheel PLN-530016134
...
20
Washer-Flywheel PLN-530015127
...
21
Assy-Flywheel PLN-530059637
...
22
Plate-Support (Bar Stud) PLN-530036043
...
23
Plug-Vent PLN-530029868
...
24
Valve-Check PLN-530026119
...
25
Nut-Speed PLN-530015922
...
26
Assy-Fuel Cap PLN-530010845
...
27
Assy-Chassis (Incl. 22,23,24,26,42,46 Fuel line and filter) PLN-530037551
...
28
Kit-Switch PLN-530069572
...
29
Worm-Oil Pump PLN-530029833
...
30
PLUNGER & GEAR ASSY PLN-545036801
...
31
Screw PLN-530015896
...
32
Kit-Clutch Drum (Incl. #35) PLN-530069342
...
33
Washer-Clutch PLN-530015611
...
34
Assy-Clutch PLN-530014949
...
35
Bearing-Clutch PLN-530032119
...
36
Washer-Thrust PLN-530015907
...
37
Pickup-Oil PLN-545047801
...
38
Filter-Oil PLN-530056533
...
39
Screw PLN-530016037
...
40
Screw PLN-530015814
...
41
Chain Catcher PLN-530029850
...
42
Bar Bolt PLN-530015877
...
43
Bar Plate PLN-530047855
...
44
Screw PLN-530016439
...
45
Kit-Spike Assy (incl#44) PLN-530014381
...
46
Assy-Oil Cap PLN-530057236
...
47
Shield-Heat PLN-530055406
...
48
Clip-"U" PLN-530055322
...
49
Screw PLN-530016080
...
50
Kit-Starter Spring PLN-545008013
...
51
Housing-Fan PLN-545008803
...
52
Screw PLN-530015892
...
53
Screw PLN-530015814
...
54
Washer PLN-530015123
...
55
ASSY HANDLE BAR PLN-530053955
...
56
Front Strap-AV PLN-530036113
...
57
Screw-Plate PLN-530015775
...
58
Plate-Isolator PLN-530036101
...
59
Spring-Isolator PLN-530038985
...
60
Screw PLN-530015984
...
61
Chain"- 20" PLN-952051310
...
62
BAR PLN-578137901
...
63
SCREW 6-19X.437 PLN-545227101
...
64
Cover-Gear PLN-545051201
...
65
PIN BAR ADJUSTING PLN-545060502
...
66
Clip-Spring PLN-545149301
...
67
Screw-Adjuster PLN-545060401
...
68
Gear-Idler PLN-545060201
...
69
ASSY THUMB WHEEL BLACK PLN-525884202
...
70
Kit -ChainBrake Assy. (Incl. Knob) PLN-545081874
...
71
KNOB PLN-579107301
...
...
...
