product name

Poulan Pro PP415 Gas Saw, 415 Gas Saw

Model: PP415 Gas Saw, 415 Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

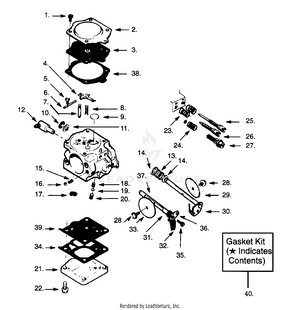

CARBURETOR WP-28P BREAKDOWN

...
...
1
Screw PLN-503108701
...
2
Cover PLN-505316702
...
3
Diaphragm Included in Gasket/Diaphragm Kit. PLN-505316715
...
4
Metering Lever Included in Gasket/Diaphragm Kit. PLN-505316734
...
5
Screw PLN-505316717
...
6
Pin PLN-505316731
...
7
Needle Included in Gasket/Diaphragm Kit. PLN-503117001
...
8
Spring Included in Gasket/Diaphragm Kit. PLN-505316723
...
9
Ring PLN-503483101
...
10
Clip PLN-502119801
...
11
Washer PLN-506028301
...
12
Lever PLN-503483801
...
13
Spring Return PLN-503483401
...
14
Bushing PLN-502103101
...
15
Spring PLN-503117701
...
16
Ball PLN-503117101
...
17
Filter Included in Gasket/Diaphragm Kit. PLN-501666101
...
18
Spring PLN-501468401
...
19
Washer PLN-503404101
...
20
Screw PLN-503404301
...
21
Cover-Pump PLN-503482501
...
22
Screw PLN-503117501
...
23
Needle Spring-Low Speed PLN-530035293
...
24
Spring PLN-505316721
...
25
NEEDLE PLN-574871601
...
26
Needle-High PLN-503483601
...
27
Idle Screw PLN-503483301
...
28
Screw PLN-530035015
...
29
Valve PLN-503482701
...
30
Shaft Ass'y. PLN-503482601
...
31
Spring PLN-503483501
...
32
Lever PLN-503484001
...
33
Valve PLN-505316707
...
34
Gasket-Pump Included in Gasket/Diaphragm Kit. PLN-503117201
...
35
Screw PLN-503192201
...
36
Lever PLN-503482901
...
37
Choke Shaft PLN-503482801
...
38
Gasket Included in Gasket/Diaphragm Kit. PLN-501467501
...
39
Diaphragm-Pump Included in Gasket/Diaphragm Kit. PLN-503117301
...
40
Gasket Kit PLN-503088401

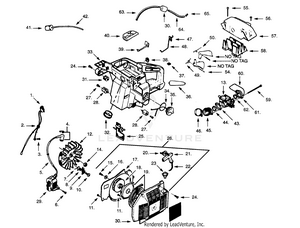

EXTERNAL POWER UNIT

...
...
1
Switch Ass'y. PLN-503427001
...
2
Grommet PLN-501271302
...
3
Screw PLN-725528955
...
4
Plug Boot PLN-501485402
...
5
Sleeve PLN-501527407
...
6
Screw PLN-503202520
...
7
Starter Dog Spring PLN-501673501
...
8
Washer PLN-503230042
...
9
Starter Dog PLN-501673201
...
10
Screw PLN-501819901
...
11
Screw PLN-503212810
...
12
Flywheel Ass'y. PLN-503511503
...
13
Carburetor PLN-503281209
...
14
Nut PLN-503220001
...
15
Screw PLN-503210716
...
16
Washer PLN-734180951
...
17
Air Baffle PLN-503423001
...
18
Starter Pulley PLN-503432101
...
19
Starter Spring PLN-503431901
...
20
Washer PLN-503142902
...
21
Handle PLN-504654203
...
22
Rope PLN-501201502
...
23
Eyelet PLN-501630601
...
24
Screw PLN-503200216
...
25
Pre Cleaner PLN-503434101
...
26
Fan Housing/Starter Ass'y (Inc.11,15-23,30) PLN-503432503
...
27
SCREW M5 X 10 PLN-503200710
...
28
Shock Mount PLN-501814701
...
29
Model 415 PLN-503620203
...
29
Model 475 PLN-503620502
...
30
Check Valve PLN-503164001
...
31
Standard PLN-501269702
...
31
Heavy Duty PLN-504125014
...
32
Inner Sealing Ring PLN-503431401
...
33
Tank & Handle Ass'y. (Incl. 37,38,49-54) PLN-503438203
...
34
O Ring PLN-501278201
...
35
TANK CAP PLN-501431402
...
36
Insert PLN-503427502
...
37
NUT PLN-503226504
...
38
Grommet PLN-501527801
...
39
Choke Knob PLN-503432402
...
40
Gasket PLN-503430401
...
41
Fuel Filter PLN-503443201
...
42
Fuel Line PLN-501768313
...
43
Gasket PLN-503434001
...
44
Outer Sealing Ring PLN-503431801
...
45
Manifold Tube PLN-503431501
...
46
Clamp PLN-503560003
...
47
Grommet PLN-503436001
...
48
Throttle Wire PLN-503434801
...
49
Spring PLN-503428001
...
50
Spring PLN-503424901
...
51
Trigger Lock PLN-503424402
...
52
Pin PLN-720123820
...
53
Trigger PLN-503424502
...
54
Pin PLN-720123620
...
55
Screw PLN-503203242
...
56
Screw PLN-503203216
...
57
Air Filter Cover PLN-503433103
...
58
Coarse Nylon Mesh PLN-503433403
...
58
Flock Filter PLN-503433402
...
58
Coarse Nylon Mesh PLN-503433403
...
59
Screw PLN-503202355
...
60
Air Inlet Tube PLN-503432801
...
61
Cover PLN-503424201
...
62
Sealing Ring PLN-503431701
...
63
Fuel Line PLN-501768304
...
64
Fuel Line PLN-501768307
...
65
Brass Check Valve PLN-504357201

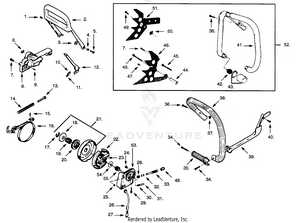

HANDLEBAR

...
...
1
Pin PLN-721430350
...
2
Actuator PLN-506093802
...
3
Washer PLN-503234502
...
4
Bushing PLN-503436101
...
5
Screw PLN-503200225
...
6
E-Clip PLN-735311020
...
7
Screw PLN-503200216
...
8
Brake Housing PLN-506093401
...
9
Pin PLN-720127050
...
10
Block PLN-503436701
...
11
Spring PLN-503436501
...
12
Actuator Arm PLN-503436901
...
13
Pin PLN-503435801
...
14
Spring PLN-503408101
...
15
Pin PLN-720123500
...
16
Band PLN-506094502
...
17
E-Clip PLN-503272101
...
18
Cup Washer PLN-503752401
...
19
Clutch Bearing PLN-503432001
...
20
68210/RIM PLN-640200214
...
20
Rim-3/8x8 PLN-505303661
...
21
Clutch Drum Ass'y. (Inclu. 17-20) PLN-503438401
...
22
Clutch Ass'y. PLN-503524601
...
23
Clutch Spring PLN-503560401
...
24
Screw PLN-725524355
...
25
Seal Ring PLN-501288501
...
26
Oil Pickup Tube PLN-503426701
...
27
Oil Pickup PLN-501544102
...
28
Spring PLN-503615801
...
29
Adjusting Screw PLN-503421301
...
30
Spring PLN-503422401
...
31
Pin PLN-503421401
...
32
Washer PLN-503230054
...
33
Pump Piston PLN-503421202
...
34
Screw PLN-503210632
...
35
Spring PLN-503428201
...
36
Screw PLN-503200230
...
37
NUT PLN-503226504
...
38
Handlebar PLN-503425802
...
39
Brace PLN-503425102
...
40
Screw PLN-503210619
...
41
Handlebar PLN-503435702
...
42
Mount PLN-504125014
...
43
Spacer PLN-503437401
...
44
Spacer PLN-506132802
...
45
Screw PLN-503200265
...
46
Inner Spur PLN-503434201
...
47
SCREW M5 X 10 PLN-503200710
...
48
Dust Shield PLN-503624901
...
49
Screw PLN-503200212
...
50
NUT PLN-503226504
...
51
Outer Spur PLN-503434301
...
52
Wrap Around Handlebar Kit (Inc.7,36,41,42, 43,44,45,46,47,48,49,50,51) PLN-503438102
...
54
Shim Washer (Only if originally equipped) PLN-503554201
...
55
Pump Drive Worm Gear PLN-503421501
...
xx
Torx Wrench TX 20 Not Shown. PLN-502516701
...
xx
Torx Wrench TX 25 Not Shown. PLN-502712701
...
xx
Torx Wrench TX 30 Not Shown. PLN-502713101
...
xx
Winter Kit Not Shown. PLN-503434401
...
xx
Chain Brake Ass'y. Not Shown. PLN-506094404
...
xx
Air Box Post Repair Kit Not Shown. PLN-503427201
...
xx
Manual Not Shown PLN-530067722

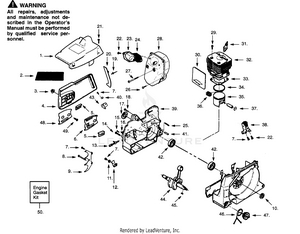

INTERNAL POWER UNIT

...
...
1
Cylinder Cover PLN-503433302
...
2
Model 415 PLN-503208601
...
2
Model 475 Decal (not a serviceable part) (not a serviceable part) PLN-503439401
...
3
Nut PLN-503220001
...
4
Bar Clamp PLN-506093101
...
5
Chain Pad PLN-501517201
...
6
Bar Plate-Inner PLN-501814801
...
7
Screw PLN-503200216
...
8
Screw PLN-503200265
...
9
Spur PLN-503426601
...
10
Oil Seal PLN-505275719
...
11
Washer PLN-503230042
...
12
Chain Catcher PLN-501686801
...
13
Chain Adjuster PLN-501537101
...
14
Screw PLN-503200245
...
15
Vent Pin PLN-721613800
...
16
Bar Stud PLN-501815701
...
17
Oil Seal PLN-503422201
...
18
Screw PLN-503200225
...
19
Pop Rivet PLN-501608201
...
20
Deflector PLN-506093301
...
21
Screw PLN-503203219
...
22
Screw PLN-503206410
...
23
Exhaust Deflector PLN-503435401
...
24
Spark Arrestor PLN-503435501
...
25
Fitting PLN-503424301
...
26
Screw PLN-503200320
...
27
Screw PLN-725538855
...
28
Muffler Ass'y (Incl. 22-24) PLN-503713705
...
29
Screw PLN-5030206420
...
30
Heat Shield PLN-503437901
...
31
BPMR7A NGK SPARK PLUG PLN-503235111
...
32
Model 415 PLN-503437504
...
32
Model 475 PLN-503420504
...
33
Gasket PLN-503428601
...
34
Model 415 PLN-503289015
...
34
Model 475 PLN-503289019
...
35
Model 415 PLN-503437702
...
35
Model 475 PLN-503420802
...
36
SUPPORT BUSHING PLN-503255601
...
37
Keeper PLN-737431200
...
38
Shock Mount PLN-503433701
...
39
Crankcase Ass'y. (Inc. 5,12,15,25,41,42) PLN-503420005
...
40
Washer PLN-503230035
...
41
Pin PLN-501270801
...
42
Crankshaft Bearing PLN-738220225
...
43
Rear Chain Catcher PLN-503554101
...
44
Crankshaft Ass'y. (Inc. 36,42,45) PLN-506088602
...
45
Flywheel Key PLN-735880600
...
46
O Ring PLN-501626801
...
47
Oil Cap Ass'y. PLN-501626601
...
48
Bar Plate-Outer PLN-501444501
...
49
Screw PLN-503212806
...
50
Engine Gasket Kit PLN-503438301
...
...
...
