product name

Poulan Pro PP325 Gas Saw

Model: PP325 Gas Saw, 325 Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

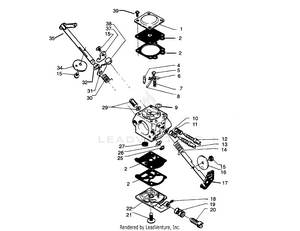

CARBURETOR BREAKDOWN

...
...
1
Cover PLN-505316754
...
2
Gasket Kit PLN-502103501
...
4
Needle PLN-503563401
...
5
Screw PLN-505316717
...
6
Metering Lever PLN-505520127
...
7
Spring PLN-504350905
...
8
Pin PLN-505520125
...
9
Ring PLN-504100011
...
10
Spring PLN-504210049
...
11
Needle Spring-Low Speed PLN-530035293
...
12
Low Speed Screw PLN-502102901
...
13
High Speed Screw PLN-502102801
...
14
Spring PLN-505316760
...
15
Screw PLN-501468701
...
16
Valve PLN-502114401
...
17
Shaft Ass'y. PLN-503570201
...
18
Spring PLN-501468401
...
19
Spring PLN-501667801
...
20
Adjusting Screw PLN-503104701
...
21
Screw PLN-501466901
...
22
Cover PLN-502102101
...
23
Gasket PLN-502103501
...
24
Diaphragm PLN-502103501
...
25
Clip PLN-502119801
...
26
Ring PLN-506028301
...
27
Screen PLN-501666101
...
29
Valve Ass'y. PLN-503109901
...
30
Spring PLN-506028201
...
31
Plate PLN-505316782
...
32
Bushing PLN-502103101
...
33
Screw PLN-501468701
...
34
Valve PLN-502103201
...
35
Shaft Ass'y. PLN-503592201
...
36
Screw PLN-501468701
...
37
Cam PLN-506028001
...
38
Spacer PLN-502103001
...
39
Screw PLN-503108701

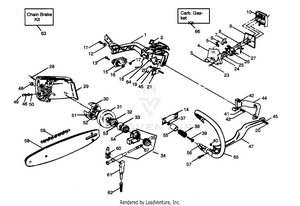

HANDLE, CHAIN & SAW

...
...
1
Rear Handle PLN-503126202
...
2
Throttle Lockout PLN-503506901
...
3
Intake Sleeve PLN-530029814
...
4
Adaptor PLN-503150801
...
5
Air Flow Plate PLN-505269314
...
6
Screw PLN-503211104
...
7
Grommet PLN-505279203
...
8
Gasket PLN-503507101
...
9
Air Filter PLN-503507401
...
10
Air Filter Cover PLN-503536101
...
11
Screw PLN-503200008
...
12
Washer PLN-503234401
...
13
Screw PLN-503200020
...
14
Strap PLN-503119202
...
15
Top Isolator PLN-503564901
...
16
Spacer PLN-505267886
...
17
NUT PLN-503226504
...
18
Throttle Wire PLN-503538401
...
19
Nut PLN-503119001
...
20
Nut PLN-732211401
...
21
Rear Isolator PLN-503486102
...
23
Screw PLN-725234150
...
24
Screw PLN-503206420
...
25
Gasket PLN-503490701
...
26
Carburetor-WT-109 PLN-503281501
...
27
Screw PLN-503205512
...
28
Pin PLN-721431000
...
29
Bar Clamp PLN-503578101
...
30
Clutch Ass'y. PLN-501455403
...
31
Clutch Drum PLN-503414001
...
32
11892 POWER MATE RIM PLN-640200010
...
33
Washer PLN-503230105
...
34
Oiler Ass'y. (Inc. 35, 67 and Oiler Body) PLN-503118501
...
35
PUMP DRIVE WHEEL PLN-538242650
...
37
Washer PLN-503230035
...
38
Isolator Spring PLN-505279536
...
39
Screw PLN-503200001
...
40
NUT PLN-503226504
...
41
Washer PLN-735113650
...
42
Screw PLN-503202516
...
44
Rear Handle PLN-503126504
...
45
Washer PLN-503230011
...
46
Clip PLN-735310920
...
47
Handle Brace PLN-503127301
...
48
Nut PLN-503220001
...
49
Screw PLN-503586601
...
50
Adj. Pin PLN-505267895
...
51
Clutch Spring PLN-505293166
...
52
Washer PLN-503230103
...
53
Bearing PLN-503253401
...
54
Seal PLN-505275719
...
55
Sleeve PLN-505279537
...
56
Isolator Plug PLN-505279211
...
57
Screw PLN-503200006
...
58
Bar PLN-952044374
...
59
Chain PLN-952051323
...
60
Oil Outlet PLN-505310745
...
61
Oil Inlet Line PLN-503101601
...
62
Oil Filter PLN-505315181
...
63
Chain Brake Kit PLN-503598801
...
64
Throttle Trigger PLN-503495603
...
65
Handlebar PLN-503127402
...
66
Carb. Gasket Kit PLN-505520131
...
67
Gear PLN-503116101

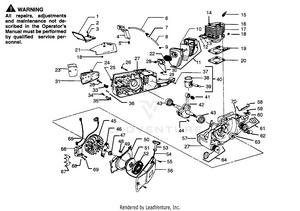

POWER UNIT

...
...
1
Handguard PLN-530027181
...
2
Screw PLN-530015406
...
3
Nut PLN-530001543
...
4
Expansion Bottle PLN-503568801
...
5
Vent Grommet PLN-503571402
...
6
Line PLN-501768307
...
7
Vent Valve PLN-503164001
...
8
Line PLN-501768316
...
9
Fitting PLN-504357201
...
10
Baffle Plate PLN-503570502
...
11
Muffler Ass'y. (Inc.10) PLN-503102006
...
12
Screw PLN-503218201
...
13
Gasket PLN-503102301
...
14
Screw PLN-503206220
...
15
BPMR7A NGK SPARK PLUG PLN-503235111
...
16
Screw PLN-503208006
...
17
Cylinder PLN-503538502
...
18
Grommet PLN-505310751
...
19
Insulator PLN-503534401
...
20
Cylinder Gasket PLN-503534501
...
21
Cylinder Cover PLN-503126005
...
22
Spark Arrestor PLN-505350441
...
23
Guide Plate (Outer) PLN-505269295
...
24
Screw PLN-723129455
...
25
Screw PLN-505220937
...
26
Screw PLN-503200006
...
27
Crankcase Ass'y. PLN-503123103
...
28
Nut PLN-503222001
...
29
Screw PLN-503200003
...
30
Bracket PLN-505350440
...
31
Guide Plate (Inner) PLN-505269307
...
33
Adjustment Stop Plate PLN-503116501
...
34
Screw PLN-725532955
...
35
Chain Catcher PLN-501686801
...
36
Pin PLN-721613800
...
37
Pin PLN-721425820
...
38
Piston Ring PLN-503575301
...
39
LOCKING RING PLN-737441000
...
40
Piston Kit (Inc. 38,39, Pin) PLN-503538601
...
41
Needle Bearing PLN-501451601
...
42
Crankshaft Ass'y. PLN-503112101
...
43
Bearing PLN-738220225
...
44
Flywheel Key PLN-735880400
...
45
Flywheel PLN-506031309
...
46
Flywheel Plate PLN-506058701
...
47
Nut PLN-503221011
...
48
Screw PLN-503211104
...
49
Washer PLN-503230035
...
50
Air Baffle PLN-503124701
...
51
Starter Pulley PLN-505303735
...
52
Starter Spring PLN-505295126
...
53
Starter Handle PLN-530042056
...
54
Starter Rope PLN-530069232
...
55
Screw PLN-503206420
...
56
Fan Housing PLN-503125301
...
57
Gasket Kit PLN-503153702
...
58
Choke Knob PLN-506034301
...
59
Screw PLN-503203701
...
60
Switch Knob PLN-505279205
...
61
Fuel Cap Ass'y. PLN-503125001
...
62
Fuel Filter PLN-530091878
...
63
Seal PLN-505275719
...
64
OIL TANK CAP PLN-503125403
...
65
Lead Wire PLN-503129701
...
66
IGNITION MODULE PLN-506027207
...
67
Spur PLN-506014901
...
68
Washer PLN-503230001
...
69
Screw PLN-503205520
...
70
Fuel Line PLN-501768322
...
...
...
