Poulan Pro PP221LE Gas Chain Saw Type 1

Model: PP221LE Gas Chain Saw Type 1

Save
 Part Not Listed?Part Not Listed?
product name

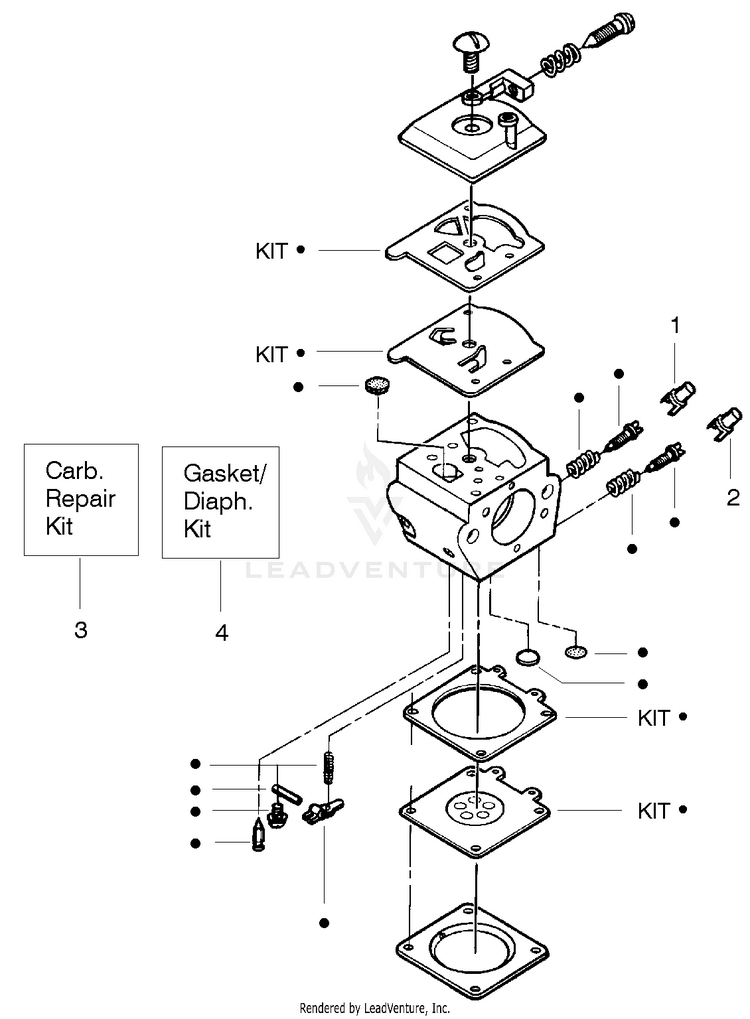

Carburetor

...
...
1
Limiter Cap-High PLN-530038479
...
2
Limiter Cap-Low PLN-530038478
...
3
Carburetor Repair Kit These parts are illustrated for clarity. Order complete assembly. PLN-530035269
...
4
Gasket/Diaphragm Kit (KIT=Indicates Contents) PLN-530035270

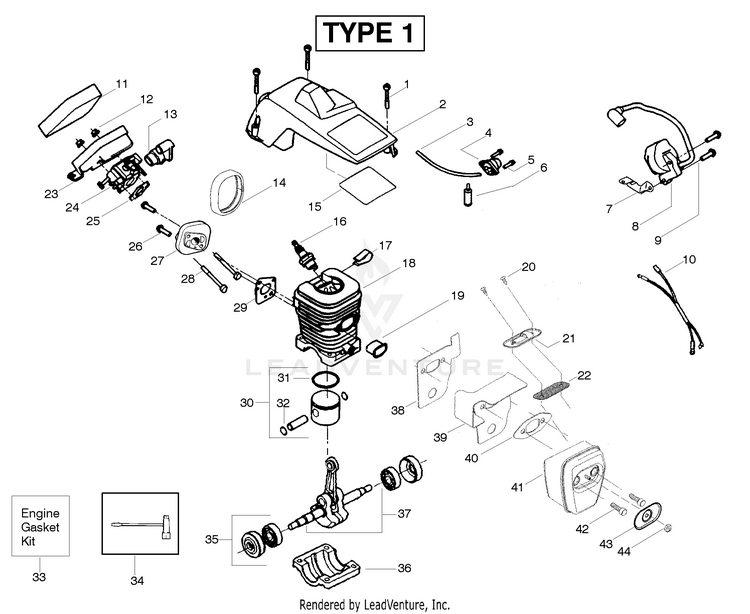

Engine Type 1

...
...
1
Screw PLN-530016153
...
2
Assy-Cylinder Shield (includes # 15) PLN-530055638
...
3
Kit-Fuel Line (Small) PLN-530069247
...
4
Kit-Purge Bulb PLN-530071835
...
5
Screw PLN-530015780
...
6
Assy-Fuel Pick-up PLN-530095646
...
7
Strap-Ground PLN-530047442
...
8
Ignition Module PLN-530039198
...
9
Screw PLN-530015814
...
10
Assy-Wire Harness PLN-530049117
...
11
Foam- Air Filter PLN-530037793
...
12
Nut PLN-530016101
...
13
Grommet-Carb Adjust PLN-530035526
...
14
Seal-Carb Adapter PLN-530054144
...
15
Reflector-Heat PLN-530055698
...
16
BPMR7A NGK SPARK PLUG PLN-503235111
...
17
Clip-High Tension Lead PLN-530016136
...
18
Cylinder PLN-530012552
...
19
Insulator-Heat PLN-530037652
...
20
Screw-Outlet cover PLN-530016351
...
21
Cover - Outlet PLN-530055759
...
22
MUFFLER (Incl. 20,21) PLN-530071904
...
23
Air Filter Housing PLN-530047604
...
24
Kit-Carburetor, (WT-599) PLN-530071409
...
24
Kit-Carburetor, (W-9A) PLN-530071619
...
25
Gasket-Carb. PLN-530069608
...
26
Screw PLN-530016386
...
27
Carb. Adapter PLN-530049700
...
28
Screw PLN-530016187
...
29
Gasket-Carb Adaptor PLN-530069608
...
30
Kit-Piston (Incl. 31 & 32) PLN-530069719
...
31
Ring-Piston PLN-545160401
...
32
Retainer-Piston Pin PLN-530015697
...
33
Kit-Engine Gasket (Incl. 25, 29 & 40) PLN-530069608
...
34
Bar Wrench PLN-530031163
...
35
Assy-Seal & Bearing PLN-530056363
...
36
Cap-Crankcase PLN-530037935
...
37
CRANKSHAFT ASSY PLN-545113101
...
38
Backplate PLN-530054885
...
39
Guide-Outlet PLN-530054880
...
40
Gasket-Muffler PLN-530069608
...
41
MUFFLER (Incl. 38-40,42) PLN-530071904
...
42
Bolt-Muffler PLN-530016338
...
43
Cover-Bolt PLN-530055586
...
44
NUT 10MM BRASS PLN-574266401
...
44
Operator Manual Not Shown PLN-530163638
...
44
Decal-Warn. Instr. Not Shown PLN-530038257

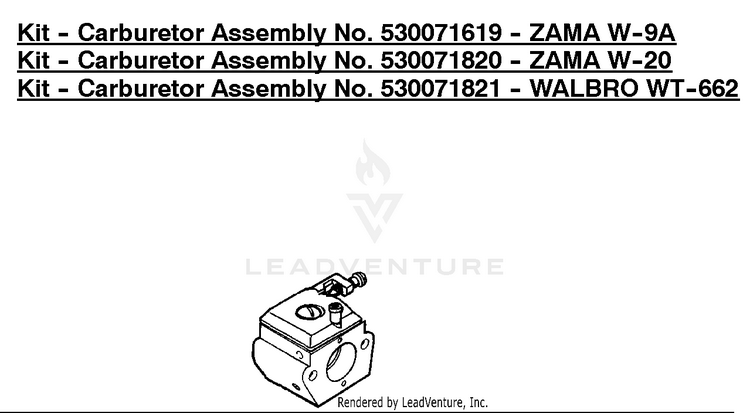

Kit - Carburetor Assembly

...
...
530071619
CARBURETOR KIT W9A PLN-530071619
...
530071820
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
530071821
Kit-Carburetor (Walbro-WT-89) PLN-545081885

Starter Type 1

...
...
1
SPRING PLN-545006036
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530016018
...
6
Screw PLN-530015843
...
7
Sleeve-AV Spring PLN-530036142
...
8
HANDLE PLN-545048001
...
9
Screw PLN-530015940
...
10
Screw PLN-530015814
...
11
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
12
BAR PLN-578138101
...
13
Nut-Bar Mounting PLN-530015917
...
14
Assy.-Chain Brake PLN-545139915
...
15
Screw PLN-530016132
...
16
Plate-Bar Mounting PLN-530038238
...
17
Screw PLN-530015814
...
18
Chain Catcher PLN-530029850
...
19
Bolt-Bar PLN-530016133
...
20
OIL TANK CAP PLN-530057236
...
21
Check Valve PLN-530026119
...
22
Plug-Bronze Vent PLN-530038264
...
23
Nut-Flywheel PLN-530016134
...
24
Screw PLN-530016080
...
25
STARTER PULLEY PLN-545034301
...
26
Screw PLN-530015892
...
27
Housing-Fan PLN-530049335
...
28
Kit - Rope PLN-530069232
...
29
Handle-Starter PLN-530056422
...
30
SPRING STARTER PLN-545008015
...
31
Screw PLN-530015920
...
32
Washer-Flywheel PLN-530015127
...
33
FLYWHEEL ASSY PLN-530047534
...
34
Shield - Heat PLN-530055183
...
35
Clip - "U" PLN-530055322
...
36
FUEL CAP ASSY PLN-580940901
...
37
Fitting-fuel line PLN-530023877
...
38
Kit-Fuel line (large) PLN-530069216
...
39
Grommet-Cable PLN-530047631
...
40
Cable-Throttle PLN-530047602
...
41
Cover-Rear Handle PLN-530047581
...
42
Screw PLN-530015886
...
43
Screw PLN-530015906
...
44
Throttle Lockout PLN-530036098
...
45
Trigger-Throttle PLN-530036097
...
46
SPRING PLN-545006036
...
47
Handle - Rear PLN-530047582
...
48
Screw PLN-530015814
...
49
SPRING PLN-545006036
...
50
SPRING PLN-545006036
...
51
Screw PLN-530015875
...
52
Kit-Switch PLN-530069572
...
53
Nut- "U"-Type PLN-530015922
...
54
Knob-Choke PLN-530047605
...
55
Grommet-Knob PLN-530049005
...
56
Assy-Chassis PLN-530047621
...
57
Kit - Oil Pump (incl. 58,59,61) PLN-530071259
...
58
Gear-Worm Spring PLN-530037820
...
59
Elbow-Oil Pickup PLN-530049477
...
60
SCREW 6-19X.437 PLN-545227101
...
61
Seal Block PLN-530019206
...
62
Assy-Oil Pickup (Incl. 63,64,65) PLN-530047663
...
63
Pick-up Oiler PLN-530038373
...
64
Filter-Oil PLN-530056533
...
65
Filter-Oil PLN-530056533
...
66
Washer-Thrust PLN-530015907
...
67
Assy.-Clutch Drum w/bearing PLN-530047061
...
68
Washer-Clutch PLN-530015611
...
69
Assy. Clutch PLN-530014949
...
...
...
