Poulan Pro PP22 Gas Hedgetrimmer

Model: PP22 Gas Hedgetrimmer, 22 Gas Hedgetrimmer

Save
 Part Not Listed?Part Not Listed?
product name

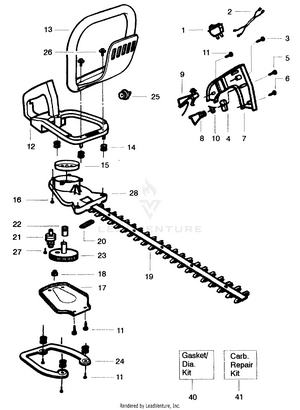

Handle & Blade Assembly

...
...
1
Ignition Switch PLN-530036493
...
2
WIRE HARNESS ASSY PLN-545172901
...
3
Screw-Handle Cov. PLN-530015775
...
4
Trigger Lever PLN-530029958
...
5
Screw-Handle Cov. PLN-530015940
...
6
Screw-Handle Cov. PLN-530015770
...
7
Handle Cover PLN-530038305
...
8
Throttle Trigger PLN-530053884
...
9
Throttle Lockout PLN-530053900
...
10
Trigger Spring PLN-530036123
...
11
Screw-Handle Cov. PLN-530015934
...
12
Rear Handle/Tank Ass'y. PLN-530047879
...
13
Front Handle PLN-530094992
...
14
Isolator Spring PLN-530029946
...
15
Assy-Drum PLN-530056069
...
16
Screw PLN-530015814
...
17
Gear Box Plate PLN-530029916
...
18
Bushing Blade PLN-530032121
...
19
Blade Ass'y. PLN-530403229
...
20
Blade Seal PLN-530029948
...
21
Pinion Ass'y. PLN-530036228
...
22
Drive Gear Bearings PLN-530016013
...
23
Drive Gear Kit PLN-530069355
...
24
Isolator Plate PLN-530036046
...
25
FUEL CAP ASSY W/RET LW PRM PLN-577858601
...
26
Screw-Front Handle PLN-530015955
...
27
Screw-Gear PLN-530015805
...
28
Assy-Gear Box (Incl. 21, 22 & 27) PLN-530071931
...
40
Walbro - Gasket/Diaphragm Kit (See "Type 1" or "Type 2 Carburetor" ill. and parts list items 29-32) PLN-530035313
...
40
Zama - Gasket/Diaphragm Kit (See "Type 1" or "Type 2 Carburetor" ill. and parts list items 29-32) New P/N for this IPL PLN-530069866
...
41
Carb. Repair Kit - Type 1 (See "Type 1 Carburetor" ill. and parts list items 33-40) PLN-530035312
...
41
Walbro - Carb. Repair Kit - Type 2 (See "Type 2 Carburetor" ill. and parts list items 33-40, 42-46 & Primer Bulb) PLN-530069656
...
41
Zama - Carb. Repair Kit - Type 2 (See "Type 2 Carburetor" ill. and parts list items 33-40, 42-46 & Primer Bulb) New P/N for this IPL PLN-530069867

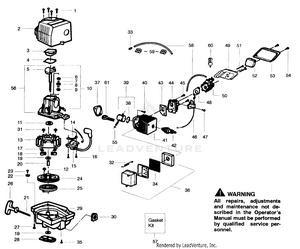

Power Unit

...
...
1
SCREW PLN-530016386
...
2
Shroud PLN-530038014
...
3
Crankcase Cover PLN-530029929
...
4
Gasket-Shrd./C'case PLN-530019181
...
5
Crankshaft Ass'y. PLN-530014307
...
6
Inner Bearing PLN-530032125
...
7
Retainer - C'case PLN-530015945
...
8
Crankcase Seal PLN-530019179
...
9
Outer Bearing PLN-530032124
...
10
Crankcase Ass'y. (Incl. 6-9) PLN-530014861
...
11
Retaining Ring PLN-530015941
...
12
Screw - Pulley PLN-530016080
...
13
FLYWHEEL ASSY PLN-545221701
...
14
Spacer - Ignit. Mod. PLN-530036145
...
15
Ignition Module PLN-530039163
...
16
Screw - Ignit. Mod. PLN-530015954
...
17
Spring - Starter Dog PLN-530047570
...
18
Starter Dog PLN-530029939
...
19
Washer - Flat PLN-530015828
...
20
Flywheel Spacer PLN-530015930
...
21
Rope Kit PLN-530069232
...
22
Retainer PLN-530015963
...
23
Screw - Retainer PLN-530015496
...
24
Starter Pulley Kit PLN-530069353
...
25
STARTER SPRING PLN-545008010
...
26
Starter Handle PLN-530027569
...
27
Screw - Fan Housing PLN-530015886
...
28
Clutch Ass'y. Kit PLN-530014396
...
29
Fan Housing PLN-530014635
...
30
Grommet PLN-530019182
...
31
Screw - Flywheel PLN-530015882
...
32
Muffler Spring PLN-530016197
...
33
Fuel Line Fitting PLN-530023877
...
34
Muffler Screen PLN-530036180
...
35
Screw - Fan Hsg./Shrd. PLN-530015934
...
36
Muffler Kit PLN-530069659
...
37
Cylinder Gasket PLN-530019223
...
38
Piston Ring PLN-530036404
...
39
Piston Kit (Incl. 38 & 55) PLN-530069621
...
40
Screw - Cylinder PLN-530015953
...
41
Cylinder PLN-530069618
...
42
Spark Plug PLN-503235112
...
43
Gasket - Cylin./Carb. PLN-530019233
...
44
Carb. Adaptor PLN-530049024
...
45
Screw - Carb. Adap. PLN-530016014
...
46
Throttle Cable Ass'y. PLN-530014384
...
47
Screw - Throtl. Cable PLN-530015775
...
48
Gasket - Carb. PLN-530019194
...
49
Air Box PLN-530036192
...
50
CARBURETOR PLN-530035305
...
50
Carburetor WT 379 - Type 2 PLN-530069682
...
51
Screw - Air Box PLN-530015849
...
52
Air Filter Foam PLN-530029934
...
53
Air Filter Cover PLN-530036193
...
54
Screw - A.F. Cover PLN-530015635
...
55
Piston Pin Retainer PLN-530015162
...
56
KIT, CRANK CASE & SHAFT (Incl. 5 & 10) PLN-530071626
...
57
Gasket Kit (Incl. 4, 37, 43 & 48) PLN-530069616
...
58
Fuel Line Kit (Incl. Fuel and Vent lines) PLN-530069599
...
59
Retainer Clip PLN-530016103
...
60
Fuel Pick-up Ass'y. PLN-530095646
...
61
Connecting Rod Kit PLN-530069615
...
xx
Operator's Manual - Type 1 (Not Shown) PLN-530068527
...
xx
Operator's Manual - Type 2 (Not Shown) PLN-530087721
...
xx
Instruction Decal (Not Shown) PLN-530047462

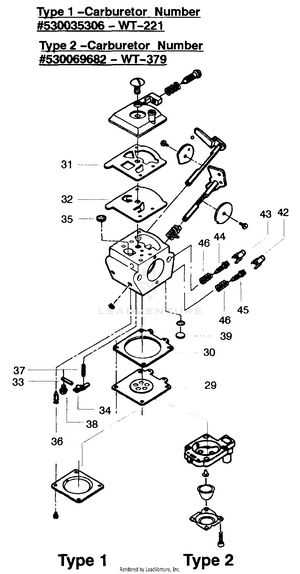

Type 1 Carburetor WT-221

...
...
xx
CARBURETOR PLN-530035305
...
29
DIAPHRAGM PLN-503896701
...
30
Metering Diaphragm Gasket PLN-530035389
...
31
GASKET PLN-504130906
...
32
PUMP DIAPHRAGM PLN-504130807
...
33
Pin PLN-505520125
...
34
Metering Lever PLN-505520127
...
35
Fuel Inlet Screen PLN-530035178
...
36
Needle PLN-503117001
...
37
WT-141 - T1 PLN-530035188
...
38
Metering Lever Pin Screw PLN-530035016
...
39
Welch Plug PLN-530035162
...
44
Needle-High, Walbro New P/N for this IPL PLN-530035407
...
44
Needle-High, Zama New P/N for this IPL PLN-530035443
...
45
Needle-Low, Walbro New P/N for this IPL PLN-530035408
...
45
Needle-Low, Zama New P/N for this IPL PLN-530035444
...
46
Needle Spring, Walbro New P/N for this IPL PLN-530035293
...
46
Needle Spring, Zama New P/N for this IPL PLN-530035445

Type 2 Carburetor WT-379

...
...
41
Walbro - Carb. Repair Kit - Type 2 (Incl. 33-40, 42-46 & Primer Bulb) PLN-530069656
...
41
Zama - Carb. Repair Kit - Type 2 (Incl. 33-40, 42-46 & Primer Bulb) New P/N for this IPL PLN-530069867
...
42
Limiter Cap-High PLN-530049128
...
43
Limiter Cap-Low PLN-530049129
...
44
Needle-High, Walbro New P/N for this IPL PLN-530035407
...
44
Needle-High, Zama New P/N for this IPL PLN-530035443
...
45
Needle-Low, Walbro New P/N for this IPL PLN-530035408
...
45
Needle-Low, Zama New P/N for this IPL PLN-530035444
...
46
Needle Spring, Walbro New P/N for this IPL PLN-530035293
...
46
Needle Spring, Zama New P/N for this IPL PLN-530035445
...
...
...
