Poulan Pro PP114 Gas Trimmer

Model: PP114 Gas Trimmer, 114 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

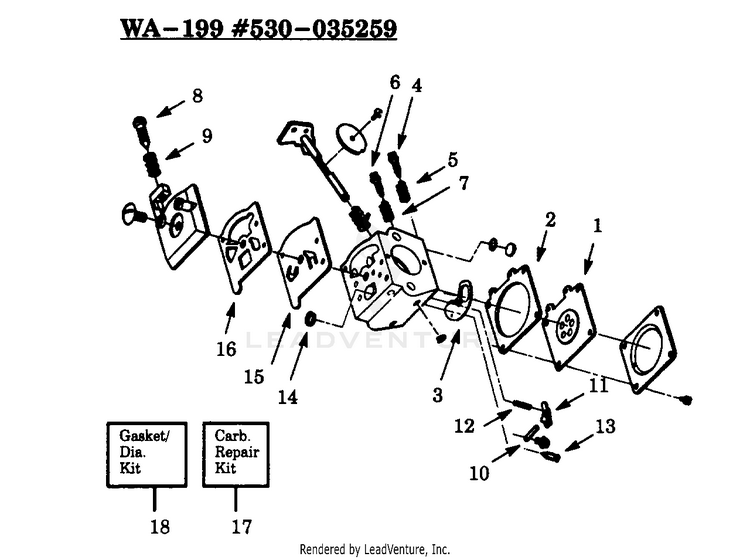

CARBURETOR WA-199

...
...
1
DIAPHRAGM PLN-503896701
...
2
Metering Diaphragm Gasket PLN-530035151
...
3
GASKET PLN-501781301
...
4
H-NEEDLE PLN-501782201
...
5
Hi Speed Needle Spring PLN-530035036
...
6
Idle Needle PLN-530035141
...
7
Idle Needle Spring PLN-530035023
...
8
Idle Speed Screw PLN-530035203
...
9
Spring PLN-501667801
...
10
Pin PLN-505520125
...
11
Metering Lever PLN-505520127
...
12
Metering Lever Spring PLN-530035188
...
13
Needle PLN-503117001
...
14
Inlet Screen PLN-530035178
...
15
PUMP DIAPHRAGM PLN-504130807
...
16
GASKET PLN-504130906
...
17
Carb. Kwik Repair Kit (Inc. 1,2,3,12,13,14, 15,16,18) PLN-530035260
...
18
Carb. Gasket/Diaphragm Kit (Inc. 1,2,3) PLN-530035185

CARBURETOR WA-298A

...
...
1
Carburetor Repair Kit ( . Indicates Contents) PLN-530069623
...
2
Limiter Cap-Low PLN-530038317
...
3
Limiter Cap-High PLN-530038318

DRIVE SHAFT & CUTTING HEAD

...
...
1
Grip PLN-530029445
...
2
Nut PLN-530015768
...
3
Drive Shaft Housing, Model 111 PLN-530094688
...
3
ASM-DR.SHAFT W/SHIELD PLN-530071371
...
4
Handle PLN-530014222
...
5
Bolt PLN-530015610
...
6
Screw PLN-530015774
...
7
Throttle Housing Ass'y. PLN-530010959
...
8
Clamp PLN-530094742
...
9
Shield Kit Ass'y. (Incl. 10,11,12,14) PLN-530069249
...
10
Screw PLN-530015337
...
11
Line Limiter PLN-530094570
...
12
Nut PLN-530403094
...
13
Shield Bracket PLN-530093653
...
14
Screw PLN-530016107
...
15
Dust Cup PLN-530094543
...
16
Drive Shaft, Model 111 PLN-530094671
...
16
Drive Shaft, Model 114 PLN-530094551
...
17
Hex Wrench (5/32) PLN-530031159
...
18
Shaft Lubrication PLN-952030139
...
19
Cutting Head Ass'y. (Incl. 21-23) PLN-952701605
...
21
Hub Ass'y. PLN-530094592
...
22
Spool w/Line PLN-952701607
...
23
Cover. PLN-530094494
...
25
Anti-Vibe Handle (Incl. 43-45) PLN-530010958
...
26
Hub Ass'y. PLN-530094562
...
27
Spring PLN-530094956
...
28
Locking Plate Kit PLN-530069312
...
29
Screw PLN-530015542
...
30
Spool w/Line PLN-952701606
...
31
Cover PLN-530094521
...
32
Release Button PLN-530094522
...
33
Handle PLN-530010957
...
34
Nut PLN-530015197
...
35
HANDLE KIT PLN-530069347
...
36
Shaft Warning Decal, Type 1-2 PLN-530029159
...
36
Shaft Warning Decal, Type 3 PLN-530038906
...
37
Cutting Head Ass'y. (Incl. 38-42) PLN-952701628
...
38
Hub Ass'y. PLN-530094878
...
39
Spring PLN-530094830
...
40
Release Button PLN-530094827
...
41
Spool w/Line PLN-952701619
...
42
Cover PLN-530094828
...
43
Screw PLN-530015784
...
45
Locknut PLN-530015785
...
46
Cutting Head Ass'y. (Incl. 47-54) PLN-952711547
...
47
Hub PLN-530071295
...
48
Line Saver PLN-530093898
...
49
Spring PLN-530340007
...
50
Cap Spring PLN-530328929
...
51
Drive Gear PLN-530093897
...
52
Spool w/Line PLN-952701523
...
53
Release Button PLN-530401183
...
54
Cover PLN-530092133

POWER UNIT

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Spacer PLN-530015852
...
6
Wave Washer PLN-530015254
...
7
Choke Shutter, Type 1 PLN-530027526
...
7
Choke Shutter, Type 2 & 3 PLN-530038103
...
8
Air Filter Plate, Type 1 PLN-530027527
...
8
Air Filter Plate, Type 2 & 3 PLN-530037930
...
9
Fuel Line Kits, Fuel Line PLN-530069247
...
9
Fuel Line Kits, Return Line 114 Type 2-3 PLN-530069571
...
10
Assy-Fuel Pickup PLN-530095646
...
11
KIT CARBURETOR ASSY PLN-545081825
...
11
KIT CARBURETOR ASSY PLN-545081825
...
11
Carburetor, Model 114 (WT-298A) Type 3 PLN-530069651
...
12
Carburetor Gasket PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Screw PLN-530015775
...
15
Throttle Cable Ass'y., Model 111 PLN-530037498
...
15
Throttle Cable Ass'y., Model 114 PLN-530037497
...
16
Shroud & Tank Ass'y., Type 1 PLN-530037498
...
16
Shroud & Tank Ass'y., Type 2 & 3 PLN-530047087
...
17
Crankcase/Shroud Gasket PLN-530019154
...
18
Reed PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connect Rod Ass'y. (Incl. Bearings), Model 111 PLN-530014005
...
20
Connect Rod Ass'y. (Incl. Bearings), Model 114 PLN-530010960
...
21
Crankshaft Ass'y. -See Ser. Ref. 2, Model 111 PLN-530010945
...
21
Crankshaft Ass'y. -See Ser. Ref. 2, Model 114 PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015772
...
24
Screw PLN-530015780
...
25
Switch Insulator PLN-530027546
...
26
Lead Wire PLN-530027547
...
27
Screw PLN-530015771
...
28
C'case Ass'y. (Incl. 39-42) PLN-530014016
...
29
Switch Ramp PLN-530027545
...
30
Switch Button PLN-530038309
...
31
Switch Spring PLN-530027959
...
32
Crankcase & Crankshaft Ass'y (21, 28 & 39-43), Model 111 PLN-530014004
...
32
Assy-C'case/C'shaft PLN-530071705
...
33
Screw PLN-530015241
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring, Model 111 PLN-530026413
...
35
Piston Ring, Model 114 PLN-530025875
...
36
GASKET CYL W/ ADHESIVE PLN-530019267
...
37
Piston Kit (Incl. 34,35 & pin), Model 111 PLN-530069274
...
37
Piston Kit (Incl. 34,35 & pin), Model 114 PLN-530069277
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Crankshaft Retaining Ring PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027781
...
46
Muffler Kit PLN-530069310
...
47
Muffler Attachment Spring PLN-530036409
...
48
CYLINDER PLN-530012349
...
48
Kit-Cylinder PLN-530071581
...
48
Kit-Cylinder PLN-530071581
...
49
Spark Plug, Type 1 & 2 PLN-530030077
...
49
Spark Plug, Type 3 (RCJ-8Y) PLN-530030075
...
50
Screw PLN-530015239
...
51
Ignition Module Kit PLN-530039134
...
52
Screw, Model 111 PLN-530015776
...
52
Screw PLN-530015816
...
53
Flywheel Ass'y., Model 111 PLN-530047198
...
53
Flywheel Ass'y., Model 114 PLN-530039189
...
54
Screw PLN-530015767
...
55
Fan Housing, Model 111 PLN-530014046
...
55
Fan Housing, Model 114 PLN-530027946
...
56
Kit-Starter Pulley (Incl. 78) PLN-530071387
...
57
STARTER SPRING PLN-545008010
...
58
Starter Handle PLN-530027569
...
59
Rope Kit PLN-530069232
...
60
Pulley Housing Ass'y. (114 Only) PLN-530014022
...
61
Clutch Washer (114 Only) PLN-530094189
...
62
Clutch (114 Only) PLN-530069254
...
63
Washer (114 Only) PLN-530015796
...
64
Nut (114 Only) PLN-530001733
...
65
Clutch Housing (114 Only) PLN-530014023
...
66
Spacer (114 Only) PLN-530027511
...
67
Washer PLN-530016030
...
68
Screw PLN-530015770
...
69
Screw PLN-530015769
...
70
Screw PLN-530015496
...
71
Retainer PLN-530027523
...
72
Locknut PLN-530015768
...
73
Engine Gasket Kit (Inc. 12,17,36) PLN-530069276
...
74
Spark Arrestor Kit PLN-952701612
...
75
Drive Coupling (111 Only) PLN-530027953
...
76
Washer (111 Only) PLN-530015828
...
77
Spacer (111 Only) PLN-530027525
...
78
Screw PLN-530016080
...
80
Instruction Decal, Type 1 PLN-530029012
...
80
Instruction Decal, 114 Type 3 PLN-530047451
...
81
Primer Bulb Ass'y 114 Type 2-3 PLN-530038874
...
82
Screw-Primer 114 Type 2-3 PLN-530016091
...
83
Screw-Starter Sprg. 114 Type 3 PLN-530015882
...
0
Ass'y. Parts Bag, Model 111 Not Shown. PLN-530014052
...
0
Ass'y. Parts Bag, Model 114 Not Shown. PLN-530014708
...
0
Ass'y. Parts Bag, Model 111 Not Shown. PLN-530068774
...
0
Ass'y. Parts Bag, Model 114 Type 2 Not Shown. PLN-530082313
...
0
Ass'y. Parts Bag, Model 114 Type 3 Not Shown. PLN-530083206
...
...
...
