Poulan Pro P2260A Mower

Model: P2260A Mower

Save
 Part Not Listed?Part Not Listed?
product name

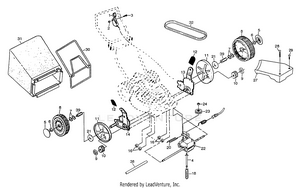

Drive Assembly

...
...
1
Drive Control (AYP part number) PLN-146323
...
2
Locknut 1/4-20 PLN-63601
...
3
Hex Washer Head Screw 1/4-20 x 2.12 PLN-144929
...
4
Spring Retainer PLN-150495
...
5
Hubcap PLN-77400
...
6
Flanged Locknut PLN-83923
...
7
Wave Washer PLN-57143
...
8
Wheel & Tire Assembly (AYP part number) PLN-801156
...
9
E-ring PLN-12000058
...
10
Pinion PLN-137054
...
11
Dust Cover PLN-88080
...
12
Selector Knob PLN-701037
...
13
Wheel Adjuster Assembly (Left) PLN-151521
...
14
Wheel Adjuster Assembly (Right) PLN-151520
...
16
Locknut PLN-63601
...
18
Spring PLN-137090
...
20
Spring PLN-75192
...
21
Washer 1/2 x 1-1/2 x .134 PLN-67725
...
22
Gear Case Assembly (AYP part number) PLN-702511
...
23
Drive Pulley (AYP part number) PLN-137052
...
24
Locknut PLN-132010
...
27
Drive Cover PLN-137081
...
28
Pan Head Tapping Screw #10-24 x 2-3/4 PLN-146072
...
29
Pan Head Tapping Screw #10-24 x 1-3/4 PLN-149746
...
30
Catcher Frame PLN-149555
...
31
Grass Bag (AYP part number) PLN-158931
...
32
V-Belt (AYP part number) PLN-146527
...
38
Drive Shaft Cover PLN-86012
...
39
Wheel Bushing PLN-88446
...
xx
Drive Cover Decal PLN-158042

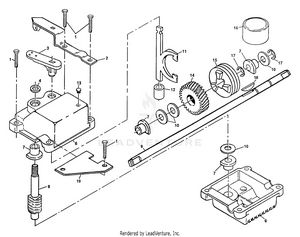

Gear Case Assembly

...
...
1
Tapping Screw 1/4-20 x 1-1/4 PLN-17490416
...
2
Engagement Bracket PLN-137055X004
...
3
Shifter PLN-137053
...
4
Seal PLN-57072
...
6
Gear Case Halves Kit Includes Key Nos. 4, 5, and 7 PLN-48373
...
7
Bearing PLN-77881
...
8
Worm Shaft PLN-137051
...
9
Drive Shaft PLN-137074
...
10
Hardened Washer PLN-57079
...
11
Clutch Yoke PLN-131484
...
12
Bushing PLN-700343
...
13
Plug PLN-86447
...
14
Helical Gear PLN-137050
...
15
Clutch Jaw PLN-750436X
...
16
Grease (AYP part number) PLN-750369
...
17
E-Ring PLN-12000003
...
18
Hi-Pro Key PLN-850848
...
19
Spring Bracket PLN-81585X004

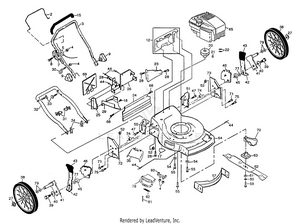

Rotory Lawn Mower

...
...
2
Control Bar (AYP part number) PLN-154507
...
3
Upper Handle PLN-145642X479
...
4
Locknut PLN-63601
...
5
Engine Zone Control Cable PLN-130861
...
7
Throttle Control PLN-700417
...
8
Hex Washer Head Screw 1/4-20 x 2-1/8 PLN-144929
...
9
Handle Knob (AYP part number) PLN-136376
...
12
Rear Door Kit PLN-151023
...
15
Handle Grip PLN-155890
...
17
Danger Decal PLN-107339X
...
18
Screw #10 PLN-150050
...
20
Engine Pulley PLN-85543
...
21
Hi Pro Key #505 PLN-87677
...
22
Set Screw 1/4-20 x 5/16 (AYP part number) PLN-532059708
...
23
Baffle, Rear (AYP part number) PLN-133040
...
24
Rear Skirt PLN-140539
...
25
Side Baffle (AYP part number) PLN-700365
...
26
Back Plate (AYP part number) PLN-700360
...
27
Flanged Locknut PLN-83923
...
28
Screw Hex Head 1/4-20 x 1/2 PLN-54583
...
29
Discharge Baffle PLN-133190X479
...
30
Rope Guide (AYP part number) PLN-132001
...
31
Cable Clip PLN-151517
...
32
Lower Handle PLN-157081X479
...
33
Handle Bolt (AYP part number) PLN-131959
...
34
Hairpin Cotter PLN-51793
...
35
Clip-on Discharge Deflector PLN-145285
...
38
Wheel & Tire Assembly PLN-752063
...
39
Shoulder Bolt PLN-142748
...
40
Spring Washer PLN-61651
...
41
Axle Arm PLN-750913X004
...
42
Selector Spring PLN-700331X004
...
43
Selector Knob PLN-701037
...
44
Pop Rivet PLN-128415
...
45
Spacer PLN-146630
...
46
Wheel Adjusting Bracket PLN-700325X007
...
47
Self-tapping Screw 5/16-18 x 3/4 PLN-150078
...
50
Handle Bracket (Right) PLN-151588X479
...
51
Handle Bracket (Left) PLN-151589X479
...
52
Locknut 3/8-16 (AYP part number) PLN-751592
...
54
Engine Washer (AYP part number) PLN-532125078
...
55
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 PLN-150406
...
57
Front Baffle (AYP part number) PLN-532132255
...
59
Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8 PLN-851084
...
60
Helical Lock Washer (AYP part number) PLN-850263
...
61
Hardened Washer PLN-851074
...
62
Blade 22" PLN-141114
...
63
Blade Adapter PLN-851514
...
64
Lawn Mower Housing Kit Includes Key No. 17 PLN-158934
...
68
Hinge Screw PLN-88652
...
69
Mulcher Plate (AYP part number) PLN-133170X479
...
70
Debris Shield (AYP part number) PLN-134612
...
71
Thread Cutting Screw 5/16 - 18 x 1-1/2 PLN-149588
...
72
Support Bracket (RH) (AYP part number) PLN-170641X479
...
73
Support Bracket (LH) (AYP part number) PLN-107610X479
...
74
Spacer PLN-73713
...
75
Bolt PLN-74780612
...
77
Flat Washer PLN-88348
...
78
Combi-cut Door PLN-145281
...
79
Wave Washer PLN-57143
...
80
Hinge Bracket PLN-147775
...
81
Rod PLN-147286
...
82
Hinge Spring PLN-152186
...
xx
Operator's Manual (English) PLN-145658
...
xx
Operator's Manual (French) PLN-145659
...
xx
Replacement Parts Manual PLN-158932
...
...
...
