Poulan Pro KS412 Gas Saw

Model: KS412 Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

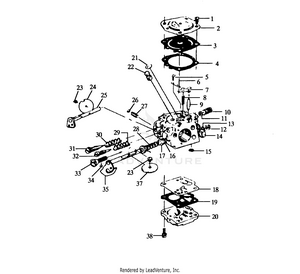

CARBURETOR

...
...
1
Screw PLN-501221101
...
2
Diaphragm Cover PLN-505316462
...
3
Metering Diaphragm PLN-501220901
...
4
Gasket PLN-501220801
...
5
Screw PLN-501485201
...
6
Shaft PLN-501222101
...
7
Lever PLN-501222001
...
8
Spring PLN-501222501
...
9
Needle PLN-503117001
...
10
Governor PLN-501502401
...
11
Gasket PLN-501485001
...
12
Retaining Ring PLN-501821801
...
13
Washer PLN-503230102
...
14
Nipple PLN-501238801
...
15
Filter PLN-501222401
...
16
Sealing Ring PLN-505316495
...
17
Bushing PLN-501427101
...
18
Diaphragm PLN-501221201
...
19
Gasket PLN-501221301
...
20
Cover PLN-501221401
...
21
Plug PLN-501220301
...
22
VALVE PLN-503779801
...
23
Screw PLN-501223001
...
24
Choke Flap PLN-502012201
...
25
Choke Shaft PLN-505316602
...
26
Ball PLN-501220401
...
27
Screw PLN-501222501
...
28
Spring PLN-505316605
...
29
Spring PLN-505316458
...
30
high Speed Spring PLN-501221701
...
31
Screw PLN-505316454
...
32
Idle Adjustment Screw PLN-501268501
...
33
Idle Screw PLN-505316603
...
34
Ball PLN-502058301
...
35
Throttle Shaft PLN-505316619
...
37
Throttle Flap PLN-505316114
...
38
Screw PLN-501221501

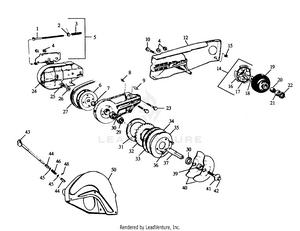

EXTERNAL POWER UNIT

...
...
1
Screw PLN-503203009
...
2
Nut PLN-503226601
...
3
SPRING PLN-506219501
...
4
Nut PLN-503220001
...
5
Adjuster PLN-506030601
...
6
Front Pulley PLN-506030001
...
7
Washer PLN-503230104
...
8
Screw PLN-503200004
...
9
Stud PLN-506143201
...
10
Screw PLN-503200012
...
12
Cutting Arm PLN-506072501
...
14
Clutch Ass'y. (Incl. 16, 17) PLN-505303237
...
15
Rubber Plug PLN-505277230
...
16
Weight PLN-505303247
...
17
Spring PLN-505294112
...
18
Washer PLN-503230111
...
19
Drive Wheel Ass'y. PLN-506073701
...
20
Needle Bearing PLN-505302415
...
21
Cover PLN-505268303
...
22
Seal Ring PLN-505275715
...
23
Bolt PLN-506033201
...
24
Belt Guard PLN-506029201
...
25
Screw PLN-725244981
...
26
Washer PLN-503230033
...
27
V-Belt PLN-506033001
...
28
Arm PLN-506029102
...
29
BALL BEARING PLN-503252101
...
30
Spacer PLN-506028601
...
31
Washer PLN-506036201
...
32
Washer PLN-506028401
...
33
Washer PLN-506036202
...
34
Spacer PLN-506036204
...
35
Plate PLN-506034501
...
36
Screw PLN-725232751
...
37
Axle PLN-506028501
...
39
7/8" PLN-506028801
...
39
20mm PLN-506028802
...
39
1" PLN-506028803
...
39
BUSHING-30MM PLN-506028830
...
40
Washer PLN-506028701
...
41
Washer PLN-506028901
...
42
Bolt PLN-506033201
...
43
Handle PLN-506029801
...
44
Spacer PLN-506029501
...
45
Washer PLN-503230005
...
46
Spring PLN-506029601
...
48
E-Ring PLN-735310920
...
50
Shield PLN-506142701
...
xx
Wrench Not Shown. PLN-501691702
...
xx
Flywheel Locking Pin Not Shown. PLN-503240602
...
xx
Wrench 8mm Not Shown. PLN-505381307

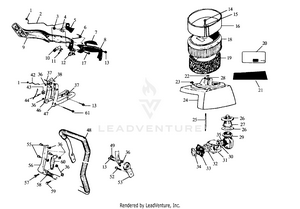

HANDLES & COVER

...
...
1
Lockwasher PLN-735581800
...
2
Throttle Rod PLN-505269427
...
3
Washer PLN-503230011
...
4
Spacer PLN-505267673
...
5
Throttle Control PLN-505279103
...
6
Spring PLN-505295614
...
7
Throttle Catch PLN-505279104
...
8
HANDLE - CPL PLN-506395002
...
9
Right Handle PLN-505340795
...
10
Stop Button PLN-503179901
...
11
Contact Spring PLN-503401701
...
12
Plate PLN-505279511
...
13
Screw PLN-503200001
...
14
Screw PLN-503206420
...
15
Washer PLN-503230035
...
16
Filter Cover PLN-505315569
...
17
Screw PLN-503200008
...
18
Filter PLN-505315571
...
19
Air Filter PLN-506074001
...
20
Decal PLN-505397573
...
21
Decal PLN-505397579
...
22
O Ring PLN-740420200
...
23
NUT PLN-731231401
...
24
Cylinder Cover PLN-506073901
...
25
Stud PLN-503208601
...
26
Seal Kit PLN-506076301
...
27
Filter w/Seal PLN-506076401
...
28
Bracket PLN-505269289
...
29
Intake Pipe PLN-505310439
...
30
Gasket PLN-506096401
...
31
Carburetor PLN-505316621
...
32
GASKET PLN-506320201
...
33
Insulator Flange PLN-505279060
...
34
GASKET PLN-506320301
...
35
Screw PLN-503200018
...
36
NUT PLN-503226504
...
37
Spring Pin PLN-721425820
...
38
Choke Button PLN-503400001
...
42
Choke Rod PLN-505269444
...
43
Cable Holder PLN-503401801
...
44
Screw PLN-503212810
...
46
Right Bracket PLN-503155902
...
47
Left Bracket PLN-503401302
...
48
Front Handle PLN-506072601
...
49
Screw PLN-503200003
...
52
Screw PLN-503200004
...
53
Absorber PLN-505279512
...
55
Bolt w/Washer PLN-503200035
...
56
Bracket PLN-505269302
...
57
Screw PLN-503200006
...
58
Absorber PLN-505279513
...
59
Screw PLN-503200016
...
60
Support PLN-506039901
...
61
Screw PLN-503200010

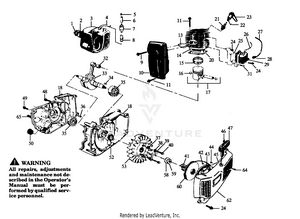

INTERNAL POWER UNIT

...
...
1
Fuel Cap (Incl. 2) PLN-505312226
...
2
O Ring PLN-740481804
...
3
Fuel Tank PLN-505318357
...
4
Hose PLN-501768301
...
5
Vent Filter PLN-504357201
...
6
Hose PLN-501768304
...
7
Vent PLN-503164001
...
8
Vent Fitting PLN-505310769
...
9
Screw PLN-503200009
...
10
Muffler Ass'y. PLN-505350150
...
11
Screw PLN-503200005
...
13
Gasket PLN-503454001
...
14
Cylinder w/Piston PLN-506077001
...
15
Model 415 PLN-503289015
...
16
RETAINING RING PLN-737421200
...
17
Piston PLN-506077101
...
18
Crankcase Ass'y. (Incl.35,48,49,51, & 65) PLN-506076601
...
20
Gasket PLN-503491101
...
21
Spark Plug PLN-503235112
...
22
Plug Boot PLN-501485402
...
23
Spark Plug PLN-501485402
...
24
Screw PLN-503200001
...
25
Armature Plate PLN-505340920
...
26
Ground Wire PLN-503411801
...
27
High Tension Wire PLN-505320179
...
28
Insulating Cap PLN-505277516
...
29
IGNITION MODULE PLN-506027207
...
31
Screw PLN-723129751
...
32
Needle Bearing PLN-505302333
...
33
Crankshaft Ass'y. (Incl.32,34,35) PLN-503158001
...
34
Woodruff Key PLN-735880600
...
35
Bearing PLN-738220225
...
36
Parallel Pin PLN-720130700
...
37
Sleeve PLN-505277566
...
38
Spring PLN-505295613
...
39
Starter Pawl PLN-505269179
...
40
Bolt PLN-503200021
...
41
Lock Spring PLN-505297917
...
42
Nut PLN-731231001
...
43
Starter Spring PLN-505295110
...
44
Screw PLN-503211102
...
45
Attachment PLN-505262134
...
46
Starter Rope PLN-505305120
...
47
Starter Handle PLN-505307119
...
48
Screw PLN-503200007
...
49
Screw PLN-503200008
...
50
Oil Cap PLN-503279002
...
51
Gasket PLN-503443101
...
52
Seal Ring PLN-505275715
...
53
Flywheel PLN-505325624
...
58
Washer PLN-503230101
...
59
Flywheel Nut PLN-503222101
...
60
Starter Pulley PLN-506071403
...
62
Fan Housing PLN-503155001
...
64
Screw PLN-503203101
...
65
Bolt PLN-505220914
...
...
...
