product name

Poulan Pro BVM215 Electric Blower

Model: BVM215 Electric Blower

Save
 Part Not Listed?Part Not Listed?
product name

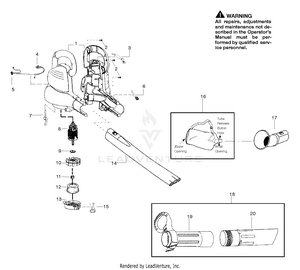

Electric Blower Assebmly

...
...
1
Housing Set (incl. #6) PLN-530404289
...
2
Screw PLN-530016120
...
3
Cover - Switch PLN-530403764
...
4
ASSY WIRE HARNESS (incl. switch) PLN-545124301
...
5
Switch PLN-530401094
...
6
Button - Tube Latch PLN-530403775
...
7
Button - Door Latch PLN-530403790
...
8
Assy. Motor PLN-530403770
...
9
Washer PLN-530403834
...
10
Impeller PLN-530403771
...
11
NUT LOCKING PLN-545162101
...
12
Restrictor - Inlet PLN-530403791
...
13
Door - Vacuum Inlet PLN-530403788
...
14
Tube - Blower PLN-530403765
...
15
Spring - Door PLN-530403833
...
16
Assy. - Vac Bag PLN-530095599
...
17
Tube - Elbow PLN-530403769
...
18
Tube - Upper Vac w/handle PLN-530403842
...
19
Tube - Upper Vac w/handle PLN-530403842
...
20
Kit-Upper/Lower Tube w/handle PLN-530403988
...
xx
Manual - Operator's Not Shown PLN-545117530
...
xx
Decal - Warning Not Shown PLN-530058965
...
...
...
