Poulan Paramount SK80C-02 Electric Trimmer

Model: SK80C-02 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

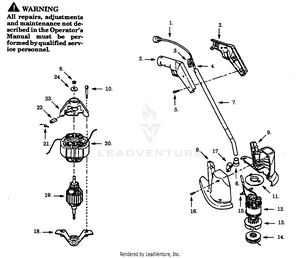

TRIMMER ASSEMBLY

...
...
1
Power Cord PLN-534234501
...
2
Handle Set PLN-534356742
...
3
Trigger Switch PLN-534193001
...
4
Harness PLN-534162323
...
5
Screw PLN-534193700
...
6
Rain Guard PLN-534299725
...
7
Tube PLN-534386404
...
8
Retaining Ring PLN-534605011
...
9
Housing Set PLN-534273572
...
10
Screw PLN-534619037
...
11
Air Baffle PLN-534455305
...
12
Motor Ass'y. PLN-534517300
...
13
Rotating Head PLN-534264935
...
14
Spool & Line PLN-952710513
...
15
Terminal Cap PLN-534561000
...
16
Screw PLN-534193800
...
17
Blade Retainer Ass'y. PLN-534525205
...
18
Endbell Ass'y. (Drive) PLN-534872701
...
19
Armature Ass'y. PLN-534517400
...
20
Field Ass'y. PLN-534521010
...
21
Brush Spring PLN-534601015
...
22
Carbon Brush PLN-534600042
...
23
Bracket/Plate Ass'y. PLN-534522012
...
24
Washer PLN-534608056
...
...
...
